Venturi Blast Nozzles
Showing all 12 results
-

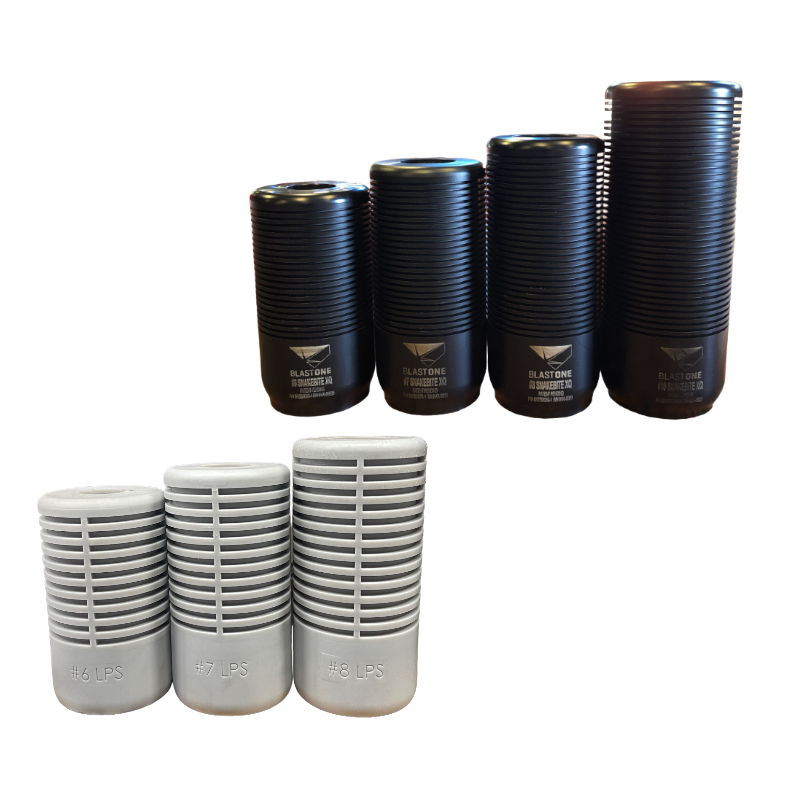

- Replacement silencers for the SnakeBite family of blast nozzles
- Up to 45% less operator fatigue
- Up to 16dB noise reduction
- 2 versions available
- Standard Pressure Silencer effective between 90-110 psi
- Low Pressure Silencer (LPS) effective between 70-90 psi
-
This general-purpose nozzle was designed for everyday use, only better - it lasts longer and offers greater ease of use! It features the following:
-
Performance characteristics:
- Venturi design provides up to 40% faster production than straight bore versions.
-
Thread type & Orifice Size options:
- Contractor 2" (50mm)
- Fine 1-¼" (32mm)
- Orifice size options: 3, 4, 5, 6, 7, 8
-
Liner:
- Silicon nitride, provides longer life and lighter weight than tungsten carbide.
-
Jacket:
- All-polyurethane – reduces ‘jams’ in metal nozzle holders
- Shock absorbent, lightweight urethane jacket protects the blast nozzle liner
-
Design:
- 1" throat entry on #3 and #4 Contractor thread AND all Fine thread options
- 1-¼" throat entry on #5, 6, 7, and 8 Contractor threads
-
Additional notes:
- Approximately half the weight of standard tungsten carbide nozzles.
- Although the up-front cost is higher than tungsten carbide, the longer life Ultra-Tuff offers same or better total cost of ownership.
-
Performance characteristics:
-
Designed with an extra-long venturi and concentrated blast pattern, the Hyper (aka XL or Saber) nozzle increases performance substantially. Additional details as follows:
-
Performance characteristics:
- Up to 30% faster coating removal and/or
- Allows greater stand-off distance (reduces need to bend over when blasting tank floors, allows greater reach, etc.)
-
Thread types & Orifice Size options:
- Contractor 2" (50mm)
- Fine 1-¼" (32mm)
- Orifice size options: 5, 6, 7, 8, & 10
-
Liner:
- SiALON silicon nitride, provides longer life and lighter weight than tungsten carbide.
-
Jacket:
- All aluminum, non-slip knurled finish
-
Design:
- 1-¼" throat entry, extended venturi, 12 inches long
-
Performance characteristics:
-
Designed with a 60% larger blast pattern, the Raptor (aka Bazooka) nozzle makes short work of your large commercial blast / sweep blast / brush blast projects. Additional details as follows:
-
Thread types:
- Contractor (2") aluminum threads
- Fine (1-¼") brass threads
-
Liner:
- Silicon nitride, offers lighter weight and longer life than tungsten carbide.
-
Jacket:
- Urethane, for improved resistance to damage
-
Design:
- 1-¼" throat entry, extended venturi
-
Thread types:
-
Standard Tungsten Carbide (aka TVP) blast nozzles are widely used and are a lower-cost, basic general-purpose nozzle with the following characteristics: Click for Buying Guide
- Performance characteristics:
- Venturi design offers up to 40% greater production than straight bore.
- Thread Types:
- 1-1/4" NPSM (32mm) brass fine threads
- 2" (50mm) aluminum contractor threads
- Flange type (unthreaded, and attaches to a blast hose with a standard blast hose quick coupling instead of a nozzle holder)
- Orifice Sizes:
- Contractor & Fine: 3, 4, 5, 6, 7, 8, 10, 12
- Flanged: 6, 7, 8, 10, 12
- Liner:
- Tungsten Carbide, provides longer life than disposable alternatives for industrial blasting projects
- Jacket:
- Contractor and Fine thread versions have poly jacket
- Flanged type is an all-aluminum jacket
- Design:
- 1" (25mm) throat entry for #3 and #4 sizes
- 1 1/4" (32mm) throat entry, for all other sizes
- Additional notes:
- Lowest up-front cost of any industrial blast nozzle.
- Higher weight and shorter lifespan than premium silicon nitride versions.
- Lower total cost of ownership, higher performance, and/or improved ease-of-use may be achieved with one of the premium nozzle options. See You May Also Like below.
- Performance characteristics:
-
These medium thread nozzles have a longer venturi than the BNAT nozzle series, making them ideal for use in our RotorBlast internal pipe blaster (when blasting pipe 12" in diamater or greater). Available in multiple orifice sizes. When using them in pairs (like when using in the RotorBlast), be sure to calculate your compressor CFM size requirement accordingly.
-
- 2" UNC (50mm) coarse Contractor thread 'C' or 1 1/4" NPSM (32mm) Fine Industrial thread 'F'
- Square thorat entry, venturi
- Tungsten carbide liner
- Urethane jacket, brass thread
- Large square blast pattern - less overlap when blasting
- Alignment ridges on jacket
-

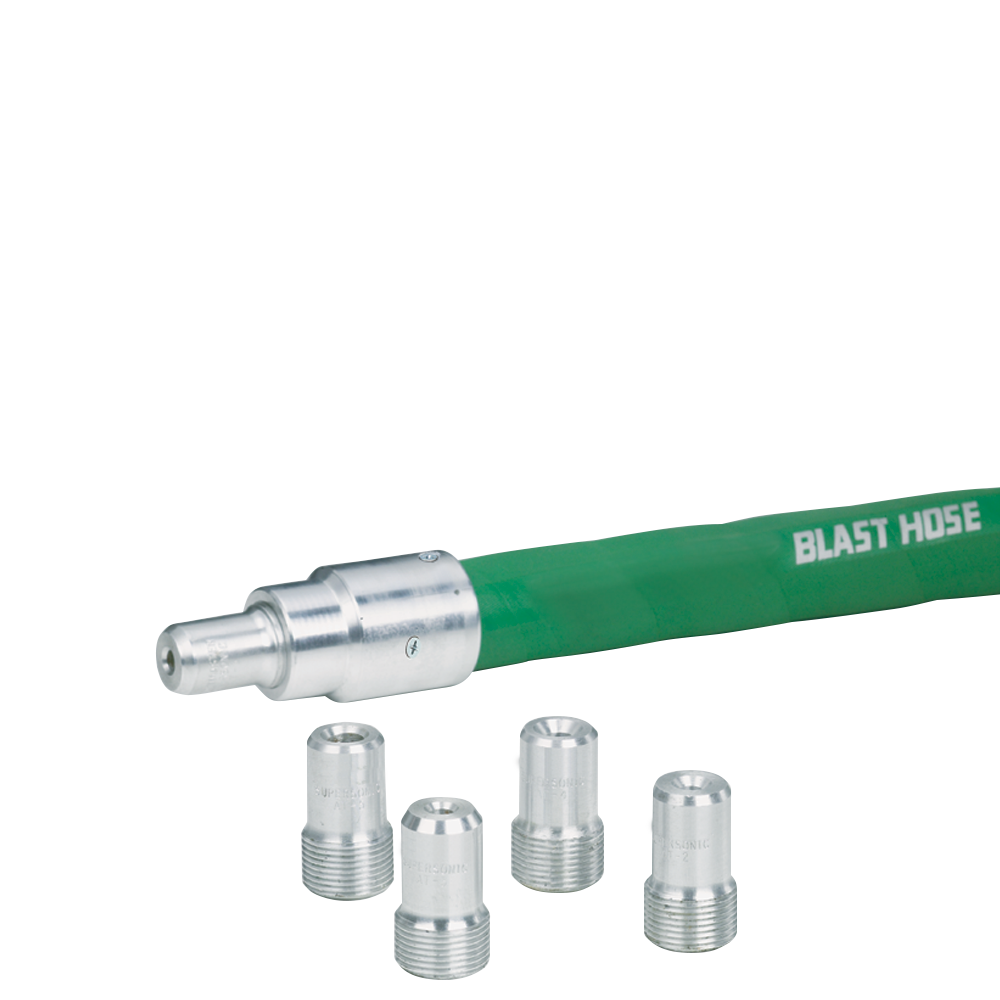

- 3/4" NPSM (20mm) 'M' Medium thread
- 1/2" (13mm) throat entry
- Tungsten carbide liner
- Aluminum jacket and thread
- Very short - 1-5/8" long
- Commonly used with Internal Pipe RotorBlast when blasting pipes between 8 and 11 inches in diameter, or in other hard-to-reach blasting areas
- Uses HFGFBSP nozzle washers (not included) - order separately
-
BNATLW3C
- 2" UNC (50 mm) coarse Contractor thread
- 1 1/4" (32 mm) wide throat entry, long venturi
- Tungsten carbide liner
- 'The Original' Contractor favorite
- Standard weight aluminum jacket and thread
- Use HF G32P nozzle washes (not included - order separately)
BNATLW3C- 2" UNC (50 mm) coarse Contractor thread
- 1 1/4" (32 mm) wide throat entry, long venturi
- Tungsten carbide liner
- 'The Original' Contractor favorite
- Standard weight aluminum jacket and thread
- Use HF G32P nozzle washes (not included - order separately)
-
- Suits 1 1/4" blast hose
- Durable steel jacket
-
INH131PBAGThe “Blast Nozzle Wear Size Analyzer Gauge” (SKU: INH131PBAG) efficiently determines the internal diameter and wear level of a blast nozzle orifice, ensuring optimal blasting performance.
- Used to determine the internal diameter of a blast nozzle orifice
- Allows you to determine the level of wear of the blast nozzle
- Comes with a removable cap and crayon
- Has size markings to allow you to see quickly what size your nozzle is
- Sold Individually
INH131PBAGThe “Blast Nozzle Wear Size Analyzer Gauge” (SKU: INH131PBAG) efficiently determines the internal diameter and wear level of a blast nozzle orifice, ensuring optimal blasting performance.- Used to determine the internal diameter of a blast nozzle orifice
- Allows you to determine the level of wear of the blast nozzle
- Comes with a removable cap and crayon
- Has size markings to allow you to see quickly what size your nozzle is
- Sold Individually
Part Number Purchase Price INH131PBAG $75.00 Web price iPlease sign in to your account to see your pricing, which may be different from the price displayed.$75.00
-
-
BNWB1-US
- Water ring creates a dust suppression "curtain" around blast pattern.
- Basic wet blasting option.
- Attach to a standard garden hose, has a flow regulator to give some control over water volume
- Does use a large amount of water. For larger projects, consider using a MistBlaster to reduce cleanup.
- Does not include the nozzle. Will fit the Ultra nozzle, the TVP tungsten carbide nozzle, but does not fit the Hyper nozzle.
BNWB1-US- Water ring creates a dust suppression "curtain" around blast pattern.
- Basic wet blasting option.
- Attach to a standard garden hose, has a flow regulator to give some control over water volume
- Does use a large amount of water. For larger projects, consider using a MistBlaster to reduce cleanup.
- Does not include the nozzle. Will fit the Ultra nozzle, the TVP tungsten carbide nozzle, but does not fit the Hyper nozzle.
