Vacuum Blasting
Showing 1–15 of 16 results
-
VCBV500
- Walk-behind vacuum blasting head
- Will Blast a 4″ wide blast strip – widest of any blast and vac workhead
- Nozzle size: No.6 (⅜”)
- Blasting rate: up to 64 ft²/6 m² per hour.
- Compressed air requirement: 500 cfm.
- Surface preparation standards compliance capability: up to SA 3 / SSPC-SP-5 / NACE No. 1.
- Achievable surface profile: 110 µm, depending on blast pressure, grit size, and surface.
- Noise level: 89 dB at 1m distance.
- Mounted with Wheels, making it easy to maneuver
- Has replaceable rubber lining and brushes.
- Genuine Parts – Manufactured by Pinovo in Norway
VCBV500- Walk-behind vacuum blasting head
- Will Blast a 4″ wide blast strip – widest of any blast and vac workhead
- Nozzle size: No.6 (⅜”)
- Blasting rate: up to 64 ft²/6 m² per hour.
- Compressed air requirement: 500 cfm.
- Surface preparation standards compliance capability: up to SA 3 / SSPC-SP-5 / NACE No. 1.
- Achievable surface profile: 110 µm, depending on blast pressure, grit size, and surface.
- Noise level: 89 dB at 1m distance.
- Mounted with Wheels, making it easy to maneuver
- Has replaceable rubber lining and brushes.
- Genuine Parts – Manufactured by Pinovo in Norway
-
VCBV700
- The PiPoint is the smallest hand-held vacuum blasting tool.
- Has 8 interchangeable heads providing flexibility for different job requirements.
- Allows you to blast inside a small box web beam, etc.
- Nozzle size: No.6 (⅜”)
- Blasting rate: up to 6 ft²/0.6 m² per hour.
- Compressed air requirement: 250 cfm.
- Surface preparation standards compliance capability: up to SA 3 / SSPC-SP-5 / NACE No. 1.
- Achievable surface profile: 110 µm, depending on blast pressure, grit size, and surface.
- Noise level: 89 dB at 1m distance.
- Genuine Parts – Manufactured by Pinovo in Norway
VCBV700- The PiPoint is the smallest hand-held vacuum blasting tool.
- Has 8 interchangeable heads providing flexibility for different job requirements.
- Allows you to blast inside a small box web beam, etc.
- Nozzle size: No.6 (⅜”)
- Blasting rate: up to 6 ft²/0.6 m² per hour.
- Compressed air requirement: 250 cfm.
- Surface preparation standards compliance capability: up to SA 3 / SSPC-SP-5 / NACE No. 1.
- Achievable surface profile: 110 µm, depending on blast pressure, grit size, and surface.
- Noise level: 89 dB at 1m distance.
- Genuine Parts – Manufactured by Pinovo in Norway
-

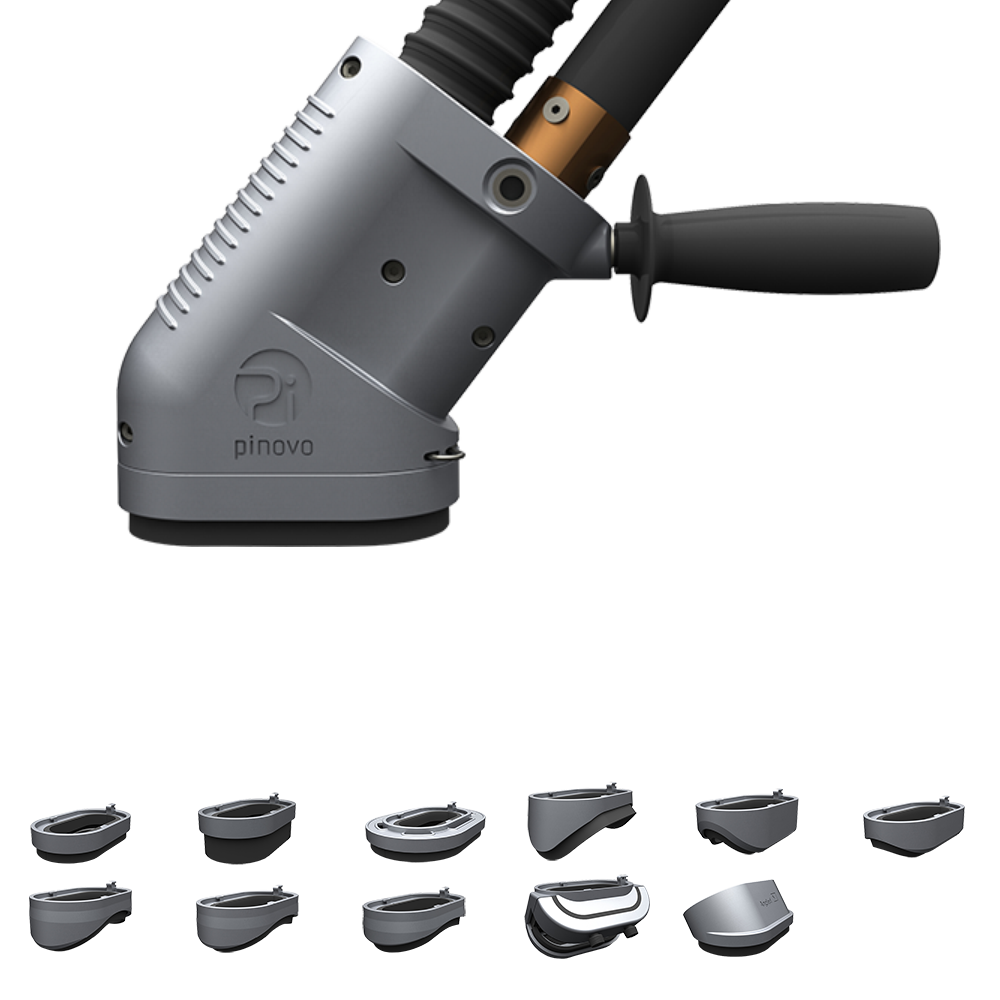

VCBV600
- A lightweight closed-circuit vacuum blaster with interchangeable heads.
- Edge blasting tools.
- Nozzle size: No.6 (⅜”)
- Blasting rate: up to 27 ft²/2.5 m² per hour.
- Compressed air requirement: 320 cfm.
- Surface preparation standards compliance capability: up to SA 3 / SSPC-SP-5 / NACE No. 1.
- Genuine Parts - Manufactured by Pinovo in Norway.
- Limited availability in the USA - Request a quote/express interest.
VCBV600- A lightweight closed-circuit vacuum blaster with interchangeable heads.
- Edge blasting tools.
- Nozzle size: No.6 (⅜”)
- Blasting rate: up to 27 ft²/2.5 m² per hour.
- Compressed air requirement: 320 cfm.
- Surface preparation standards compliance capability: up to SA 3 / SSPC-SP-5 / NACE No. 1.
- Genuine Parts - Manufactured by Pinovo in Norway.
- Limited availability in the USA - Request a quote/express interest.
-

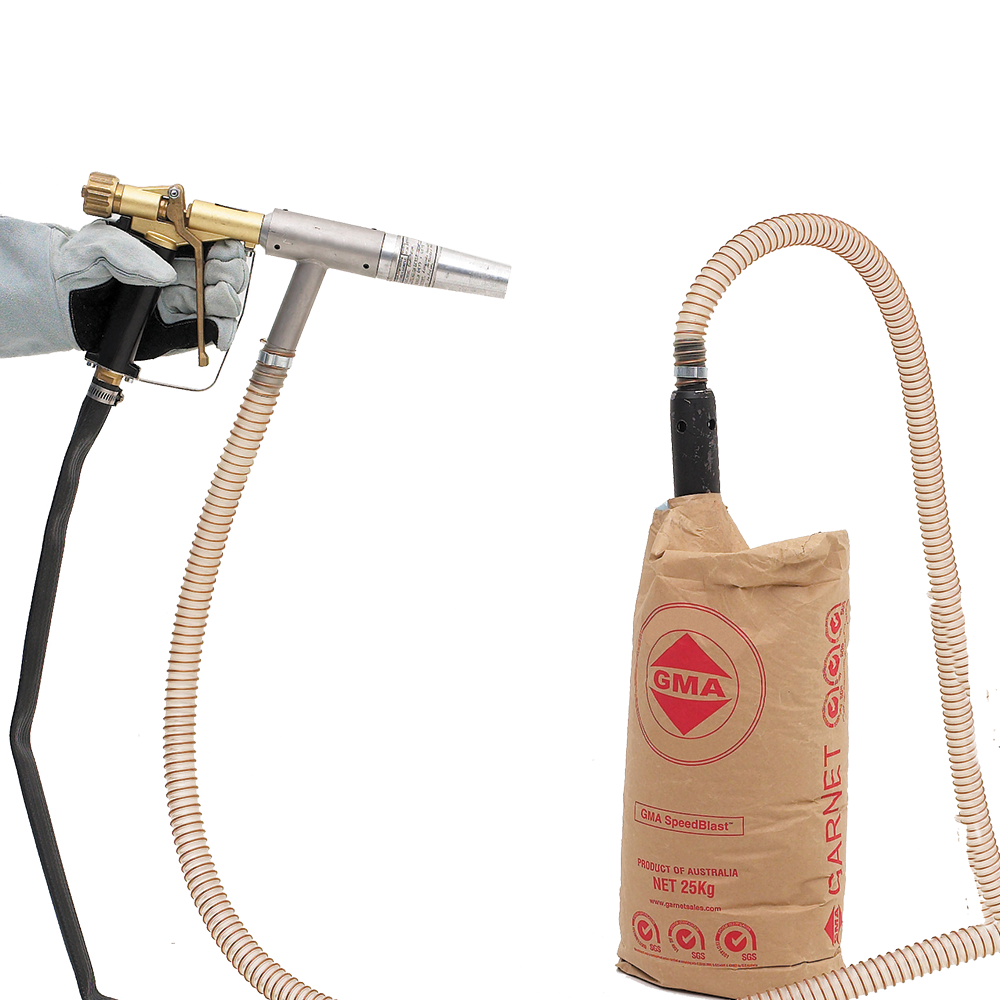

CAPSG1
- #1 Fastest Suction Blast System Available
- Uses an Abrasive Pick-Up Tube and flexible Hose to mix abrasive with the airstream
- To set up, simply slide the pick up tube into your bag of abrasive, connect your compressed air and pull the trigger
- Comes with a fixed orifice ¼' Airjet and ½' Tungsten Carbide nozzle
- Can be used with any media, right out of the bag
- Ideal for where air supply is limited or for small jobs where setting up conventional pressure blast machine is a nuisance
- Uses between 40-120 cfm of air - the more you have, the faster you blast.
- Sold as a Kit including the gun, nozzle and pick up tubes
- Also referred to as a bag blaster
- Genuine Product - Manufactured by Clemco
CAPSG1- #1 Fastest Suction Blast System Available
- Uses an Abrasive Pick-Up Tube and flexible Hose to mix abrasive with the airstream
- To set up, simply slide the pick up tube into your bag of abrasive, connect your compressed air and pull the trigger
- Comes with a fixed orifice ¼' Airjet and ½' Tungsten Carbide nozzle
- Can be used with any media, right out of the bag
- Ideal for where air supply is limited or for small jobs where setting up conventional pressure blast machine is a nuisance
- Uses between 40-120 cfm of air - the more you have, the faster you blast.
- Sold as a Kit including the gun, nozzle and pick up tubes
- Also referred to as a bag blaster
- Genuine Product - Manufactured by Clemco
-

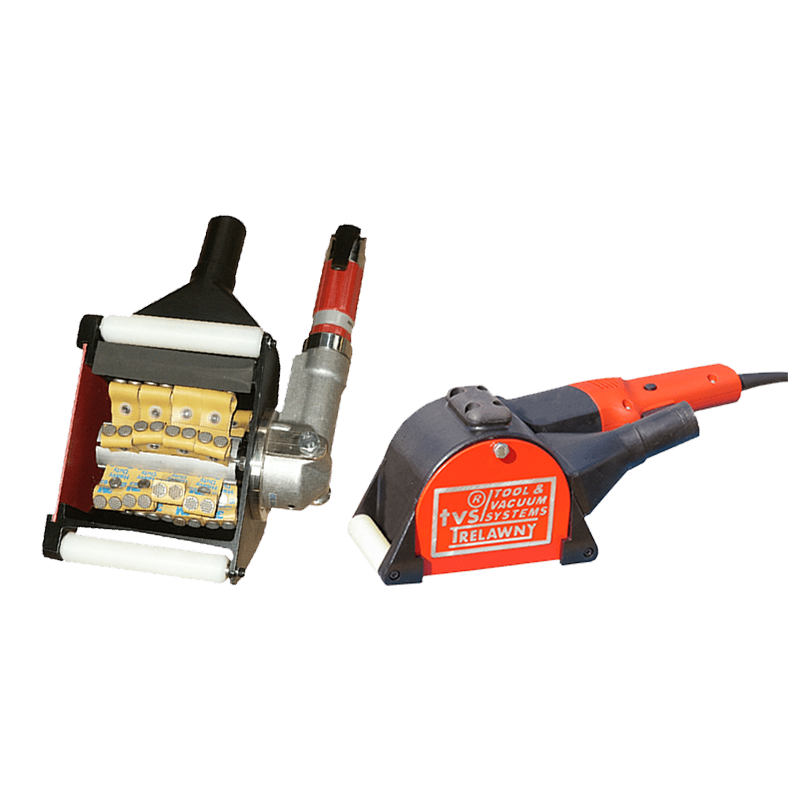

- Ideal for preparing flat or large vertical areas such as beams, girders and tanks.
- Scarifies the surface, using a large range of different heads
- 3M Flappers, Star Bits, TC Cutters and more all mount on a spinning head
- Use with Trelawny TVS Vacuum.
- Genuine Products - Manufactured by Trelawny
-
The MiniBRS G2 Trigger Workheads are easier to handle than other versions for your vacuum blasting projects. Features include the following:
- Longer lasting brushes
- More containment while blasting
- Improved vacuum flow
- Easier to slide head over surfaces while blasting
- Various Brush options available, including:
- Flat Surface
- Inside Corner
- Outside Corner
- Available in either Electric or Pneumatic
-
- Complete Range of blast and vacuum work heads and equipment
- aka: Blastnvac 6 Head or BNV6
- Typically work best on flat surfaces, custom units are available upon request
- Largest workhead available - Large with Wheels

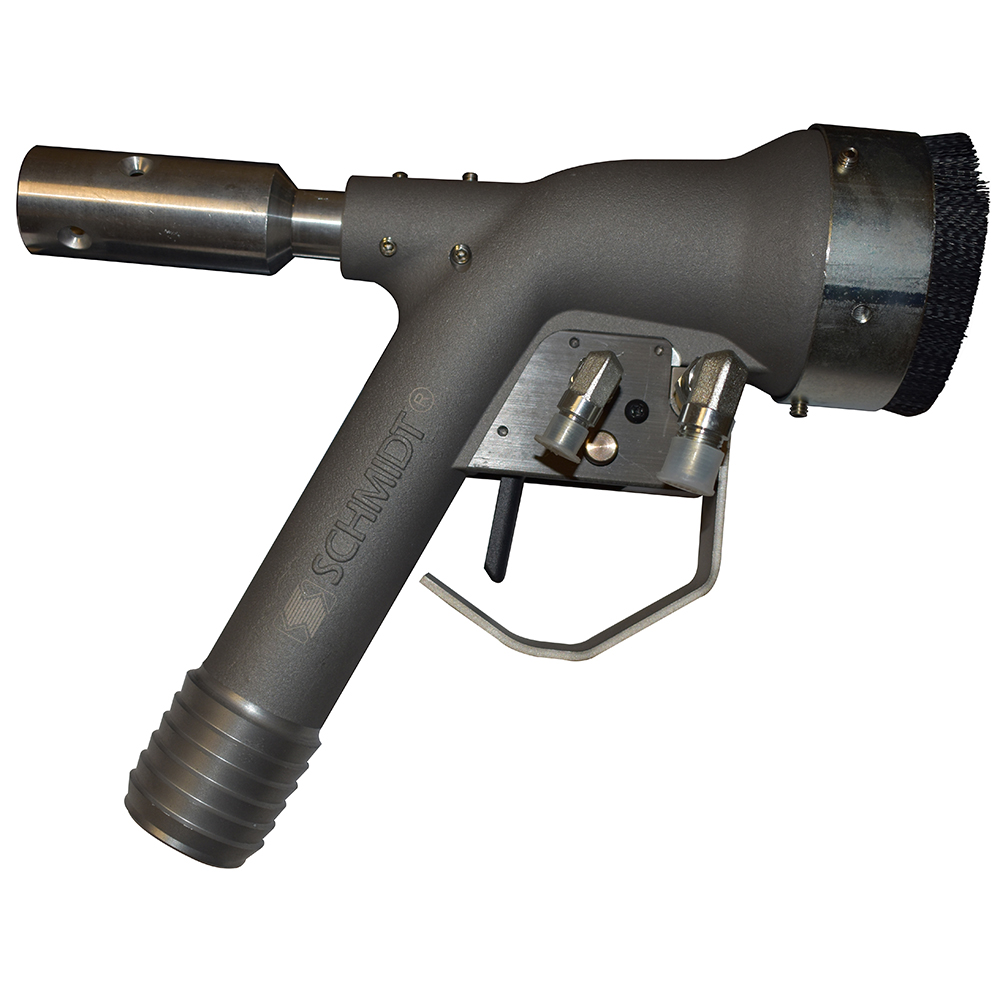

- Pistol Grip - *Most Popular* easiest to hold onto
- Right Angle - Designed to get into smaller areas
- Standard Unit - the Original Blast and Vac head
- aka: Blastnvac 6 Head
- Choose your style
-

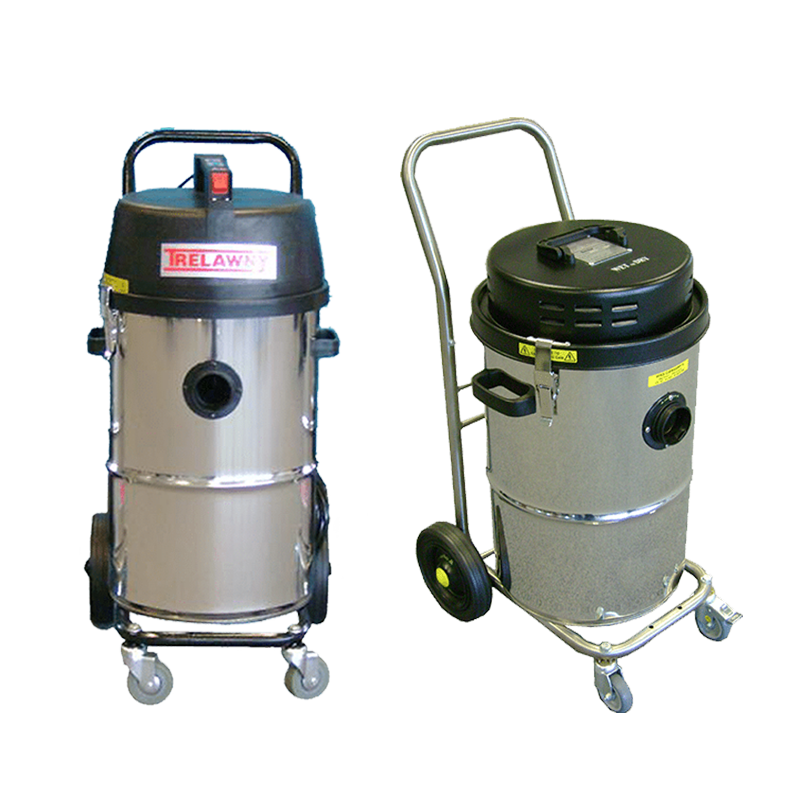

- Electric vacuum available - wet & dry (HEPA)
- Best used with
-
- TFP200 Deck Scaler
- SF11 Deck Hammer
- Peening Prep Tool
- Trelawny range of Hand Scalers
- Pneumatic vacuum available – wet & dry (HEPA)
- Best used with
-
- Trelawny range of EX tools for use in explosive environments
- VL303 Needle Scaler
- SF1 Scaling Hammer
- SF11 Deck Hammer
- Trelawny range of EX tools for use in explosive environments
-
VC803300091
BlastOne has the parts needed to for your MiniBRS G2 Trigger Workheads. This is the Vacuum Workhead Trigger Guard (8033-000-91) for both pneumatic and electric versions.
VC803300091BlastOne has the parts needed to for your MiniBRS G2 Trigger Workheads. This is the Vacuum Workhead Trigger Guard (8033-000-91) for both pneumatic and electric versions.
-
VC803300084
BlastOne has the parts needed for your MiniBRS Workheads. This is the Outside Sleeve for flat brushes (MPN 8033-000-84), for both the pneumatic and electric versions.
VC803300084BlastOne has the parts needed for your MiniBRS Workheads. This is the Outside Sleeve for flat brushes (MPN 8033-000-84), for both the pneumatic and electric versions.
-
VC803300083

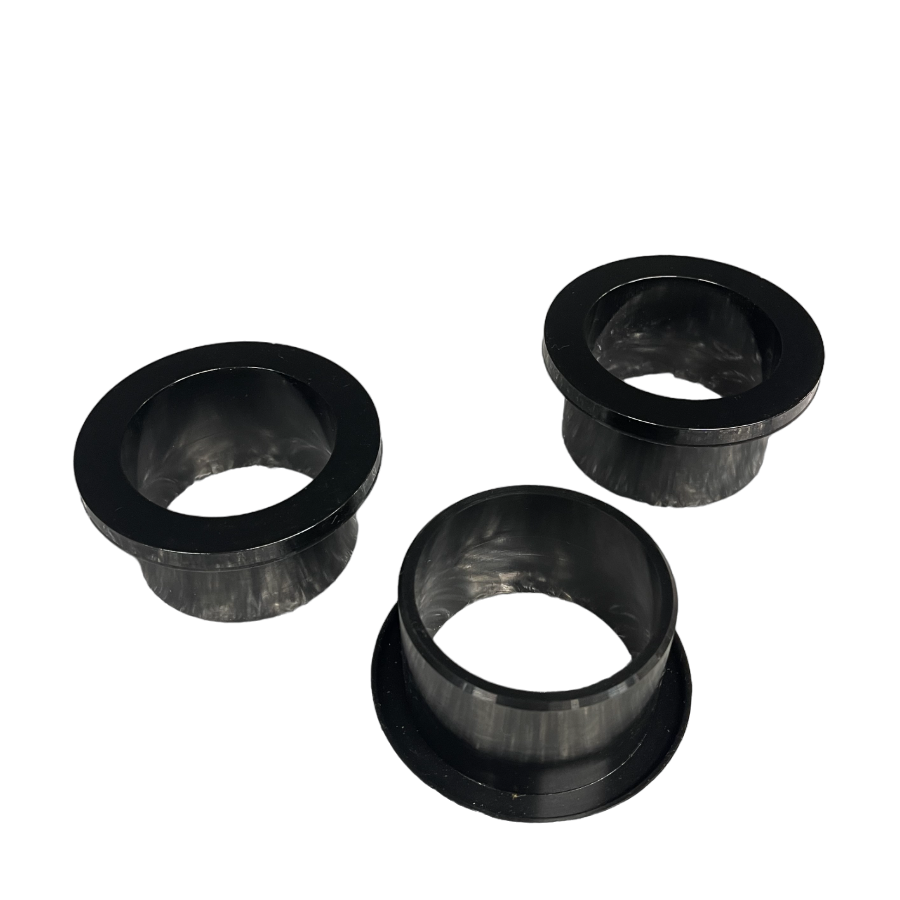

BlastOne has the parts needed for your MiniBRS G2 Trigger Workheads. This is the Trigger Workhead Rubber Gasket (8033-000-83) for both the pneumatic and electric versions.
VC803300083BlastOne has the parts needed for your MiniBRS G2 Trigger Workheads. This is the Trigger Workhead Rubber Gasket (8033-000-83) for both the pneumatic and electric versions.
-
The G2 Trigger Vacuum Workhead uses various brush types to enable it to work on inside and outside corners, as well as on flat surfaces. This group includes the following brush options:
- Replacement Flat Brush (Brush Only)
-
Inside Corner Brush Assembly (Includes Adapter, Brush, and Sleeve)
- Replacement Inside Corner Brush
-
Outside Corner Brush Assembly (Includes Adapter, Brush, and Sleeve)
- Replacement Outside Corner Brush
Note: Brushes are effective on surfaces up to 150°F.
-
VC803300010

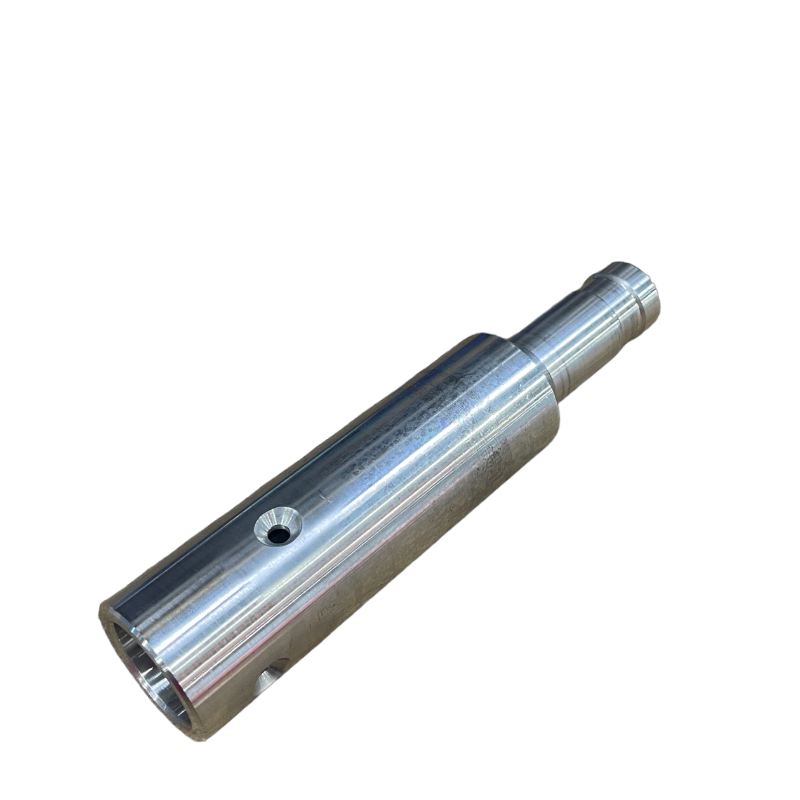

BlastOne has the parts needed for your MiniBRS Trigger Workheads. This is the #4 Nozzle (8033-000-10) for both the pneumatic and electric versions.
VC803300010BlastOne has the parts needed for your MiniBRS Trigger Workheads. This is the #4 Nozzle (8033-000-10) for both the pneumatic and electric versions.
-
VC803300009
BlastOne has the parts needed for your MiniBRS G2 Trigger Workheads. This is the #3 Blast Nozzle (8033-000-09) for both the pneumatic and electric version.
VC803300009BlastOne has the parts needed for your MiniBRS G2 Trigger Workheads. This is the #3 Blast Nozzle (8033-000-09) for both the pneumatic and electric version.
-
VC803300082
BlastOne has the parts needed for your MiniBRS G2 Trigger Workheads. This is the Trigger Workhead Cone Liner (MPN 8033-000-82) for both the pneumatic and electric versions.
VC803300082BlastOne has the parts needed for your MiniBRS G2 Trigger Workheads. This is the Trigger Workhead Cone Liner (MPN 8033-000-82) for both the pneumatic and electric versions.
