Abrasive Metering Valves
Looking for top-quality abrasive metering valves for your sandblasting needs? Look no further! Our selection of trusted and reliable options is sure to have what you’re looking for.
Not only do we offer a wide variety of abrasive metering valves, but we also prioritize quality and customer satisfaction. Our selection includes only the most trusted and reliable brands, ensuring that you get the best possible product for your sandblasting needs. Investing in a quality abrasive metering valve can greatly improve the efficiency and effectiveness of your sandblasting process, ultimately saving you time and money in the long run. Don’t settle for less – choose from our selection of trusted abrasive metering valves for your sandblasting needs.
Showing all 11 results
-
- Newest generation abrasive metering valve with improved wear-life while maintaining fine metering control.
- Offers improved life and lower cost over previous generation Thompson valves.
- Pressure-hold design maintains pressure in the pot, even with deadman released. This can save up to 15% of abrasive when your projects involve a lot of start-stop blasting.
- Diaphragm-activated piston requires minimum of 75 psi control pressure
- Can be retrofitted to a blast pot with only 6" clearance
- Genuine Parts - Manufactured by Schmidt® / Axxiom Manufacturing
-
SCHMIDT THOMPSON VALVE II- Abrasive Metering Valve
- Meters the flow of blasting grit, garnet abrasive sand
- Rugged, simple, bolted construction
- 1 ¼” (32 mm) thread abrasive inlet port
- Features 1” (25 mm) thread side-cleanout port
- Heavy duty tungsten carbide sleeve
- Specify air connection size
- Threaded-plunger metering design with air actuated operation
- The Thompson Valve II uses HF BTC blast coupling – not included (order separately)
- The Thompson Valve II is suitable for use with all approved blasting abrasives
- Fit most sand blast hoppers, blast pots or abrasive blasting machines
-
- Pressure-release deadman control valve i.e., blast machine depressurizes when the deadman handle is released.
- Used when an overhead hopper automatically feeds abrasive into a blast machine.
- Rugged stainless steel body, compact, isolated 2-bolt construction.
- Doubles blast machine refill cycle time.
- Virtual Position Indicator illustrates orifice size, giving the ability to set abrasive flow quickly and consistently.
- Set and forget – flow rates stay set where you put them.
- High wear, rugged plunger seal.
- Stainless steel body for long life.
- Improved urethane clean-out port enabling quick removal of obstructions while improving port and valve life.
- Fit a rebuild kit while the valve is still fitted to the blast machine.
- Sold individually.
- Genuine Products – Manufactured by Schmidt / Axxiom Manufacturing
-

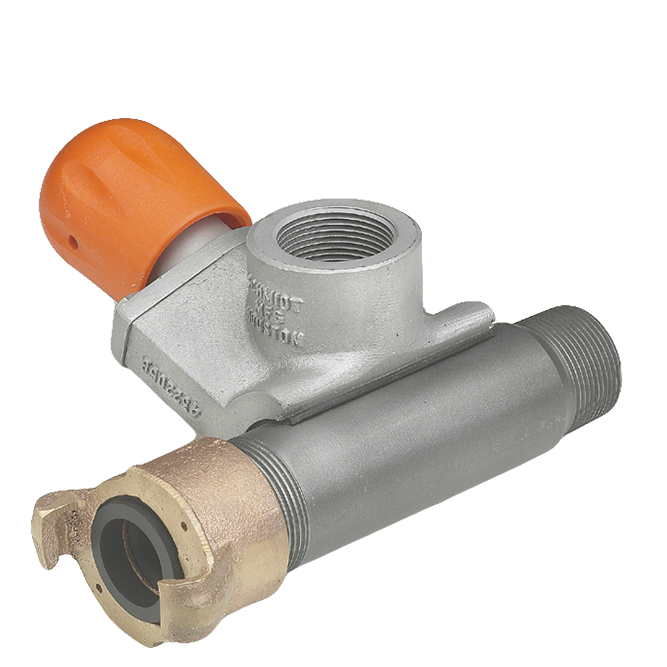

- The MicroValve™ changed the industry by providing accurate metering valve
- Simple screw type metering through a low-wearing valve
- 1 ¼" (32 mm) thread abrasive inlet port
- Hardened steel threaded base nipple
- Recommended upgrade: Microvalve™ III
- Sold Individually, Brass Coupling not included
- Genuine Products - Manufactured by Schmidt® / Axxiom Manufacturing
-
- TeraValve™ Complete Blast Pot Retrofit Kit
- Allows you to completely retrofit your existing blast pot into the latest pressure-hold technology
- Reduces abrasive consumption up to 15% compared to pressure-release systems, depending on application.
- TeraValve™ is designed to last with stainless alloy construction and internal dust wipers
- Sold as a kit with all parts, fittings and instructions required for installation
- Genuine Products - Manufactured by Schmidt® / Axxiom Manufacturing
- Kit pictured is 1-1/2" Airlines, Electric Deadman - most common
-
- Thompson Metering Valve II Lasts 10 times longer then any other valve, due to its unique engineering
- Designed to handle the harshest blasting environments known
- Will handle up to a 3/4" blast nozzle
- Will work with any abrasive, including very fine/dusty abrasives
- Most rugged and reliable valve for any application
- Sold Individually
- Genuine Parts - Made in USA by Schmidt / Axxiom Manufacturing
-
- The original Thompson® Valve invented by Bob Schmidt
- Suits a pressure hold system, which retains the pressure in the blast pot, until the deadman handle is depressed
- Meters the flow of blasting grit, garnet abrasive sand
- 3 Nipple size configurations:
- 1 ¼” (32 mm) x 1 ¼” (32 mm)
- 1 ½" (38 mm) x 1 ½" (38 mm)
- 2" (50 mm) x 2" (50 mm)
- Threaded-plunger metering design with air actuated operation
- The Thompson® Valve is suitable for use with all approved blasting abrasives
- Fits most sand blast hoppers, blast pots or abrasive blasting machines
- Genuine Parts - Manufactured by Schmidt® / Axxiom Manufacturing
-
- Not recommended for use with metallic abrasives

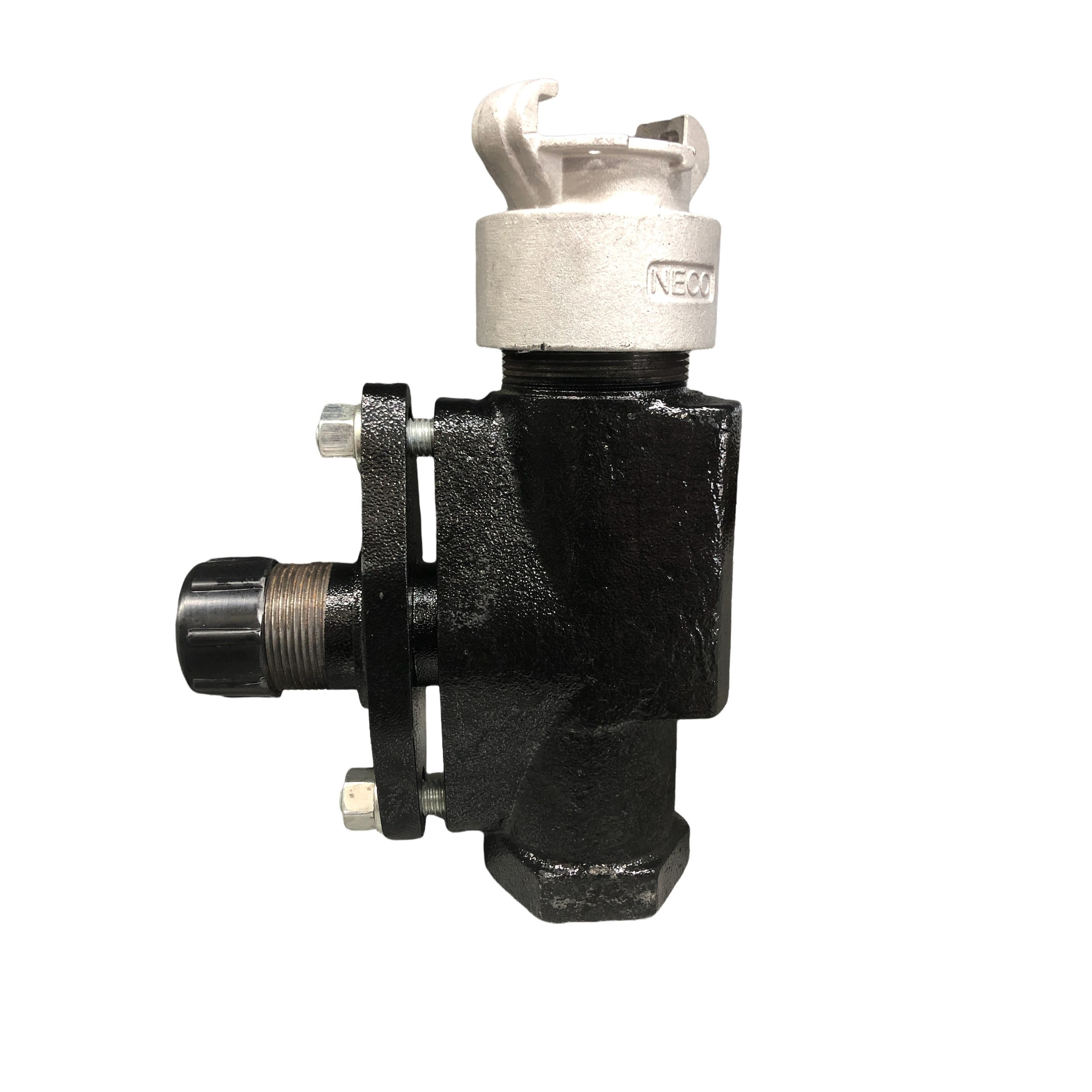

- Slide-plate metering design
- Large, bolted construction
- 1 1/4" (32 mm) ports
- Features side cleanout-inspection port
- Includes outlet nipple and Y-piece
- Optional rubber lined nipple for long life
-
- HFSTC3 blast coupling included
- Designed for use with coarse metallic abrasives
- Heavy cast iron construction
- Not recommended for use with fine abrasives
- 1 1/2" NPT female thread air connection
- Recommended upgrade: MicroValve 3
- HFSTC3 blast coupling included
- Designed for use with coarse metallic abrasives
- Heavy cast iron construction
- Not recommended for use with fine abrasives
- 1 1/2" NPT female thread air connection
- Recommended upgrade: MicroValve 3
-

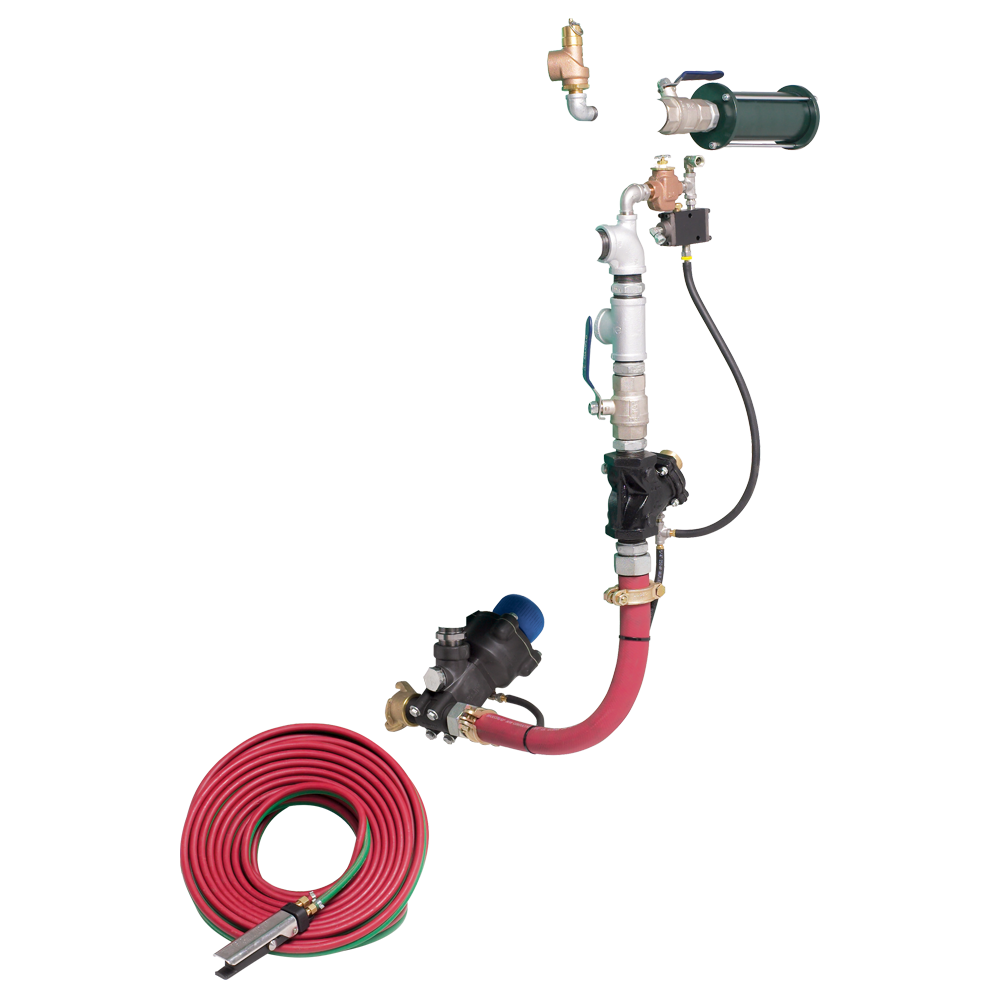

- Will transform your blast pot into a pressure hold system
- Retrofit Kit includes:
- Thompson® Valve Series II Metering Valve
- Full pusherline kit
- Automatic air valve and all interconnecting hoses
- Control line strainer and control valve
- Response deadman handle and Twinline
- Does not include muffler or pressure relief valve pictured
- Genuine Parts - Manufactured by Schmidt® / Axxiom Manufacturing
-
- To replace the valves on your pressure release blast pot
- Retrofit Kit includes:
- 1 1/4" Combo Valve
- 1 1/4" MicroValve 3
- Full pusherline kit
- All interconnecting hoses
- Control line strainer and control valve
- Response deadman handle and Deadman line
