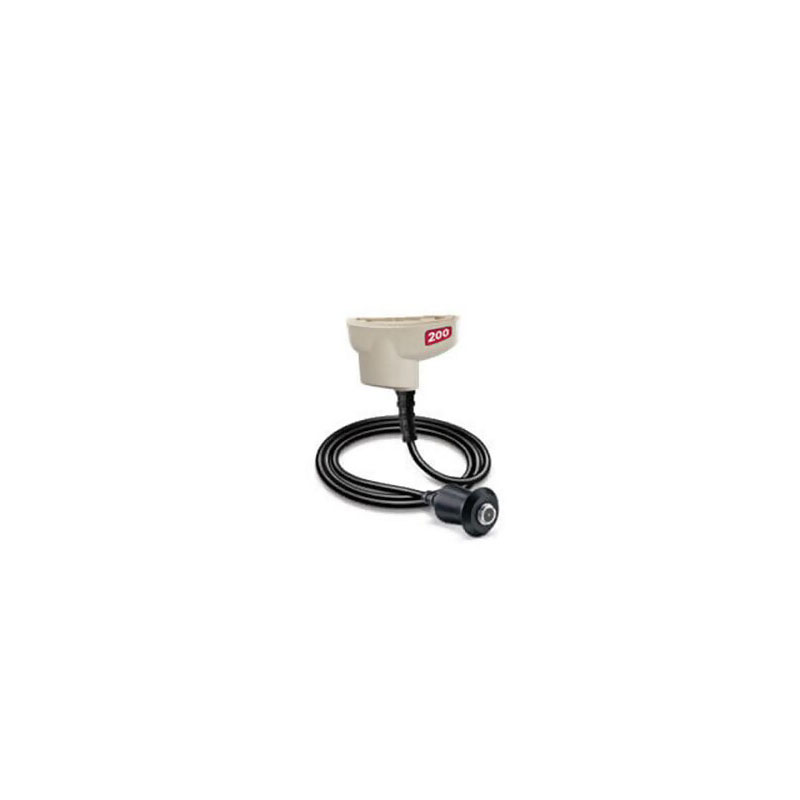

DeFelsko® PosiTector 200 C Probe

SKU: IND200CS
Web price i
Please sign in to your account to see your pricing, which may be different from the price displayed.
$1,815.00

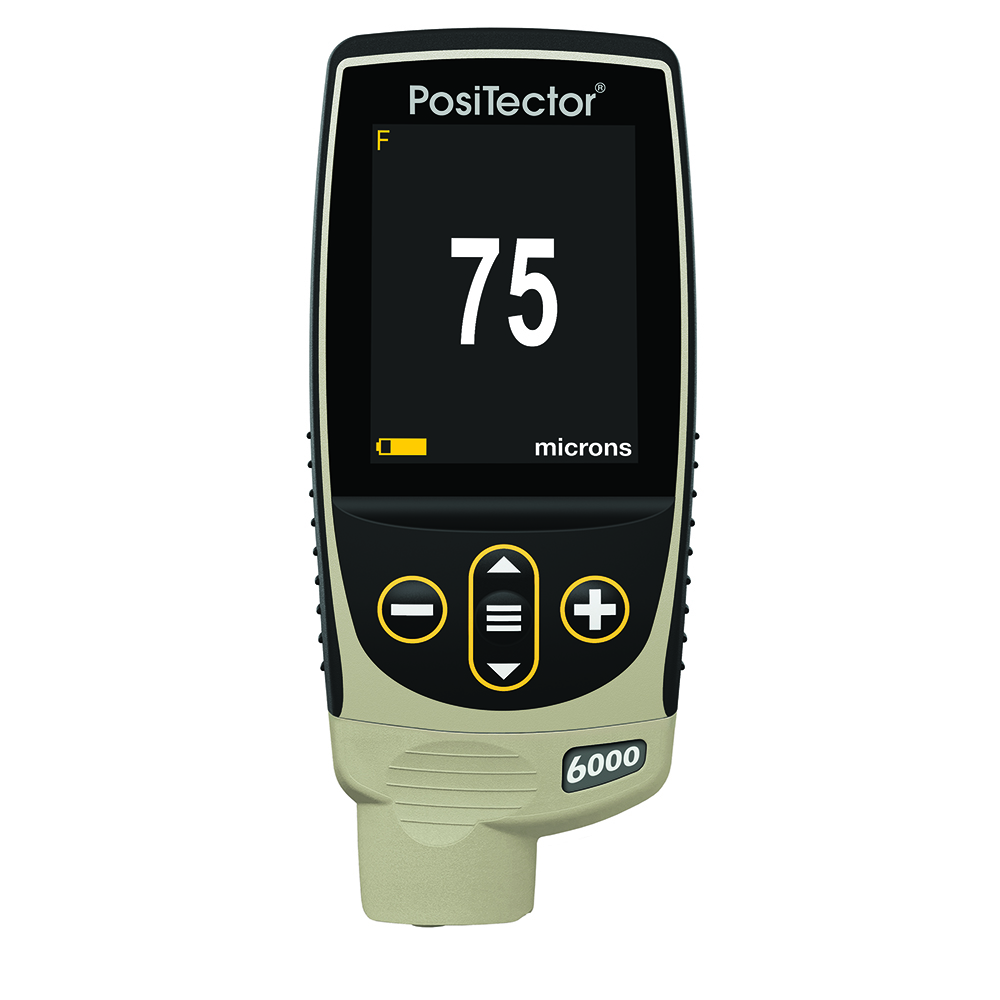

PosiTector Standard gauge bodies
include:

  • Larger 2.8” impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • Fast Mode—90+ readings per minute for quick inspection
  • Statistics Mode—Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring
  • Reading Storage Capacity 1,000 per probe (250,000 in up to 1,000 batches in Advanced model)
  • Touchscreen keyboard for quickly renaming batches, adding notes, and more
  • SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for max/min specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result.
  • Prompted Batch Mode—create pre-defined batches with on-screen text and image prompts for each reading
  • 3 Scan Modes—Increase measurement speed to 180+ readings per minute
  • Multiple stored calibration adjustments for measuring on a variety of substrate conditions
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
Web price i
Please sign in to your account to see your pricing, which may be different from the price displayed.

$1,815.00

Ship to 20149

Description



Probe Model Typical Applications Measurement Range Accuracy Minimum Layer Thickness
200B Polymer coating on wood, plastic, etc. 13 – 1000 um / 0.5 – 40 mils ± (2 µm + 3% of reading) ± (0.1 .mil + 3% of reading) 13 µm / 0.5 mil
200C Coatings on concrete, fiberglass, etc. 50 – 3800 um / 2 – 150 mils ± (2 µm + 3% of reading) ± (0.1 .mil + 3% of reading) 50 µm / 2 mils
200D Thick, soft coatings such as polyurea, asphalitic neoprene, very thick polymers, etc. 50 – 7600 um / 2 – 300 mils ± (20 µm + 3% of reading) ± (1 mil + 3% of reading) 500 µm / 20 mils




All gauges feature…

  • Fast measurement speed—60+ readings per minute.
  • Enhanced FAST mode—90+ readings per minute for quick inspection.
  • Ready to measure—no adjustment required for most applications
  • On-gauge help explains menu items at the touch of a button
  • Flashing display—ideal in a noisy environment
  • RESET feature instantly restores factory settings
  • Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • Ergonomic design with durable rubberized grip
  • Wear-resistant probe tip
  • Shock-absorbing protective rubber holster for added impact resistance
  • Two year warranty on gauge body AND probe Certificate of Calibration showing traceability to NIST or PTB included
  • Built-in temperature compensation ensures measurement accuracy
  • Hi-RES mode increases displayed resolution for precision applications
  • Conforms to national and international standards including ISO and ASTM
  • Multiple calibration adjustment options including zero, 1 point, 2 point, and ISO 19840 correction factors
  • Selectable display languages
  • Auto rotating display with Flip Lock
  • Extended cables available (up to 15 m/50 ft) for remote measuring
  • Continually displays/updates average, standard deviation, min/max, and number of readings while measuring
  • Screen Capture—save 100 screen images for record keeping and review
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Instant-on feature quickly powers up the gauge if recently powered down
  • Up to 30% longer battery life
  • PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Every stored measurement is date and time stamped
  • Includes PosiSoft suite of software for viewing and reporting data
