DeFelsko® PosiTector® 200 D Probe

Web price i
Please sign in to your account to see your pricing, which may be different from the price displayed.

PosiTector Standard gauge bodies include:

  • Larger 2.8” impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • Fast Mode—90+ readings per minute for quick inspection
  • Statistics Mode—Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring
  • Two year warranty on body AND probe
  • Reading Storage Capacity 1,000 per probe (250,000 in up to 1,000 batches in Advanced model)
  • Touchscreen keyboard for quickly renaming batches, adding notes, and more
  • SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for max/min specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result.
  • Prompted Batch Mode—create pre-defined batches with on-screen text and image prompts for each reading
  • 3 Scan Modes—Increase measurement speed to 180+ readings per minute
  • Multiple stored calibration adjustments for measuring on a variety of substrate conditions
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
Web price i
Please sign in to your account to see your pricing, which may be different from the price displayed.


Ship to 20149
Expected to arrive: 09/29/2022


Probe Model Typical Applications Measurement Range Accuracy Minimum Layer Thickness
200B Polymer coating on wood, plastic, etc. 13 – 1000 um / 0.5 – 40 mils ± (2 µm + 3% of reading) ± (0.1 .mil + 3% of reading) 13 µm / 0.5 mil
200C Coatings on concrete, fiberglass, etc. 50 – 3800 um / 2 – 150 mils ± (2 µm + 3% of reading) ± (0.1 .mil + 3% of reading) 50 µm / 2 mils
200D Thick, soft coatings such as polyurea, asphalitic neoprene, very thick polymers, etc. 50 – 7600 um / 2 – 300 mils ± (20 µm + 3% of reading) ± (1 mil + 3% of reading) 500 µm / 20 mils


All gauges feature…

  • Surface temperature is constantly updated and displayed simultaneously
  • Button-activated laser pointer for simple, accurate targeting
  • Ready to measure—no adjustment required for most applications
  • On-gauge help explains menu items at the touch of a button
  • RESET feature instantly restores factory settings
  • Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • Ergonomic design with durable rubberized grip
  • Shock-absorbing protective rubber holster for added impact resistance
  • Two year warranty on gauge body AND probe Certificate of Calibration showing traceability to NIST or PTB included
  • Certificate of Calibration showing traceability to NIST included (Long Form)
  • Fast response precision sensor provides accurate, repeatable readings
  • 5:7:1 distance to spot ratio – ideal for measuring large areas
  • Smart Trend™ indicators identify rising, falling, or stable readings

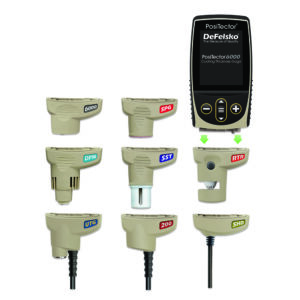

  • PosiTector body accepts all PosiTector DPM, 6000, 200, RTR, SPG, SST, SHD, and UTG probes easily converting from an infrared thermometer, to a dew point meter, coating thickness gauge, surface profile gauge, soluble salt tester, shore hardness durometer or ultrasonic wall thickness gauge.
  • Selectable emissivity values – choose from 7 present material options, set a custom emissivity value, or adjust to a known temperature.
  • Auto rotating display with Flip Lock
  • Scanning Statistics Scan Mode – continually displays/updates average, standard deviation, min/max surface temperature and number of readings while measuring one reading per second
