Description

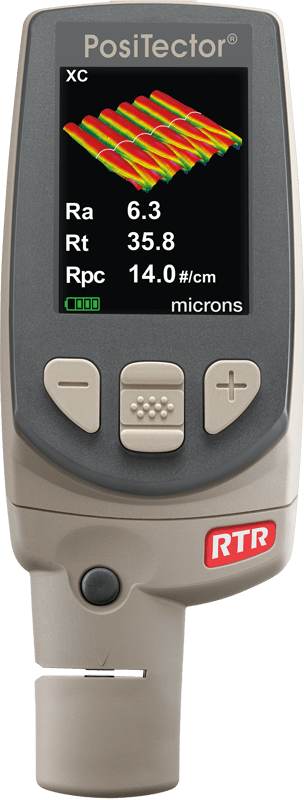

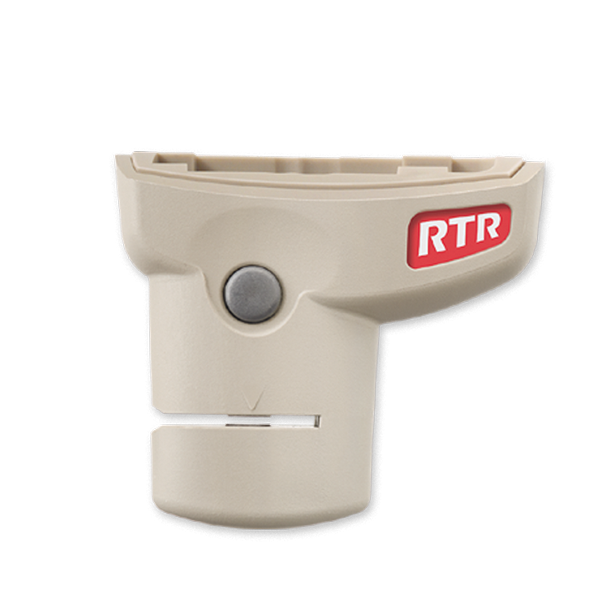

Replica Tape Reader to take measurements and record 2D & 3D details of blasted steel or textured coating surfaces.

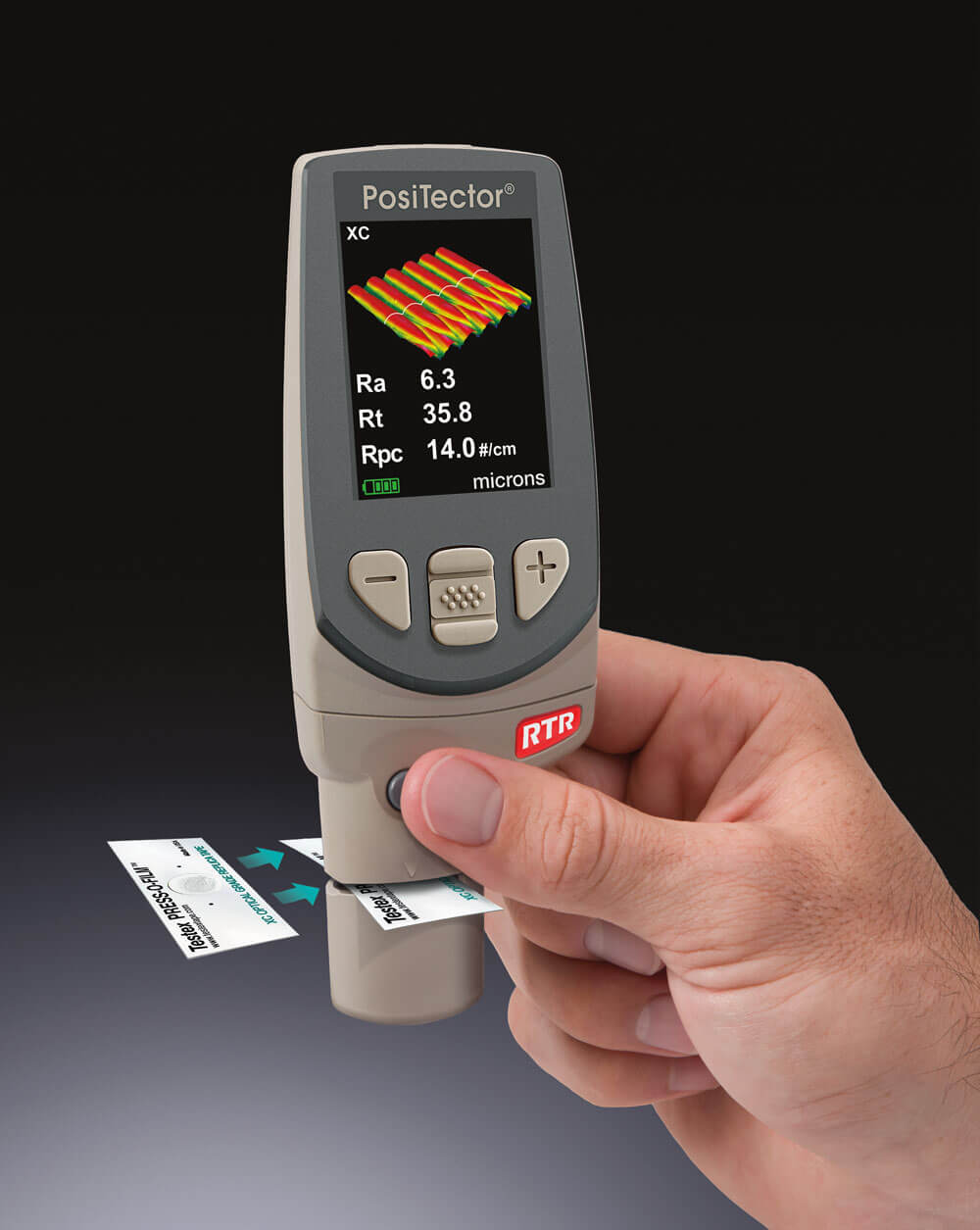

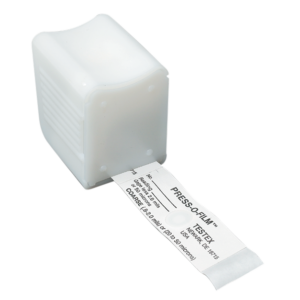

• Takes measurements from Testex Press-O-Film replica tape
  • Best images taken from the Optical Grade Testex Tape, which is available in Coarse or X-Coarse
• Displays 2D & 3D parameters of replica tape within seconds of burnishing
• Report common parameters: Ra, Rq, Rz, Rp, Rv, Rt, Rpc (2D), and Sa, Sq, Sz, Sp, Sv, and Spd (3D)
• Perfect for use on jobsites or in the lab
• Works with Flat, curved, or irregular surfaces
• Certified and traceable to an accredited national laboratory

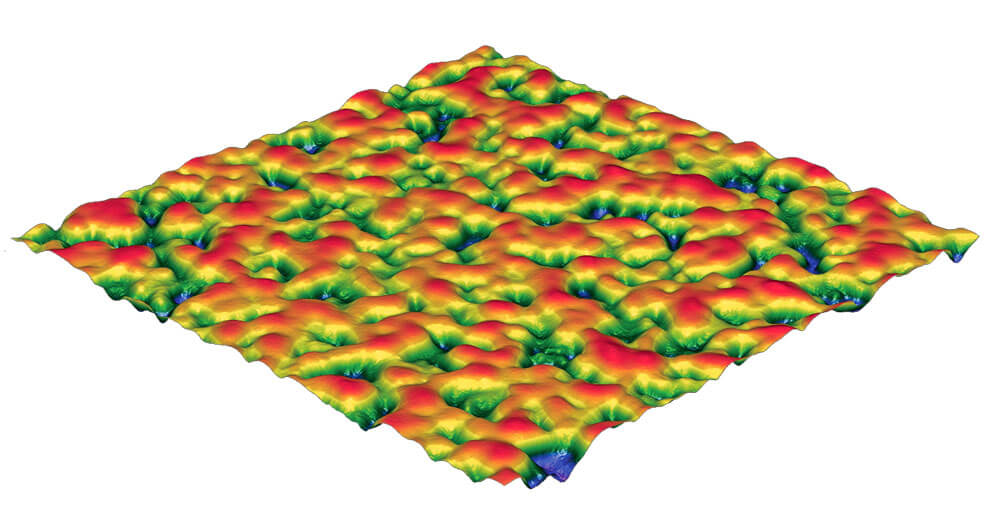

• Download 3D .sdf image files for analysis to included PosiSoft or third party software
• Calibration Certificate included, shows traceability to Longform, PTB for H & HL, and NPL for Ra and Rt
• Conforms to ASME B46, ASTM D4417, ISO 8503-5, NACE SP287, SSPC-PA 17, SSPC-SP5, SP6, SP10, SP11-87T and more.
