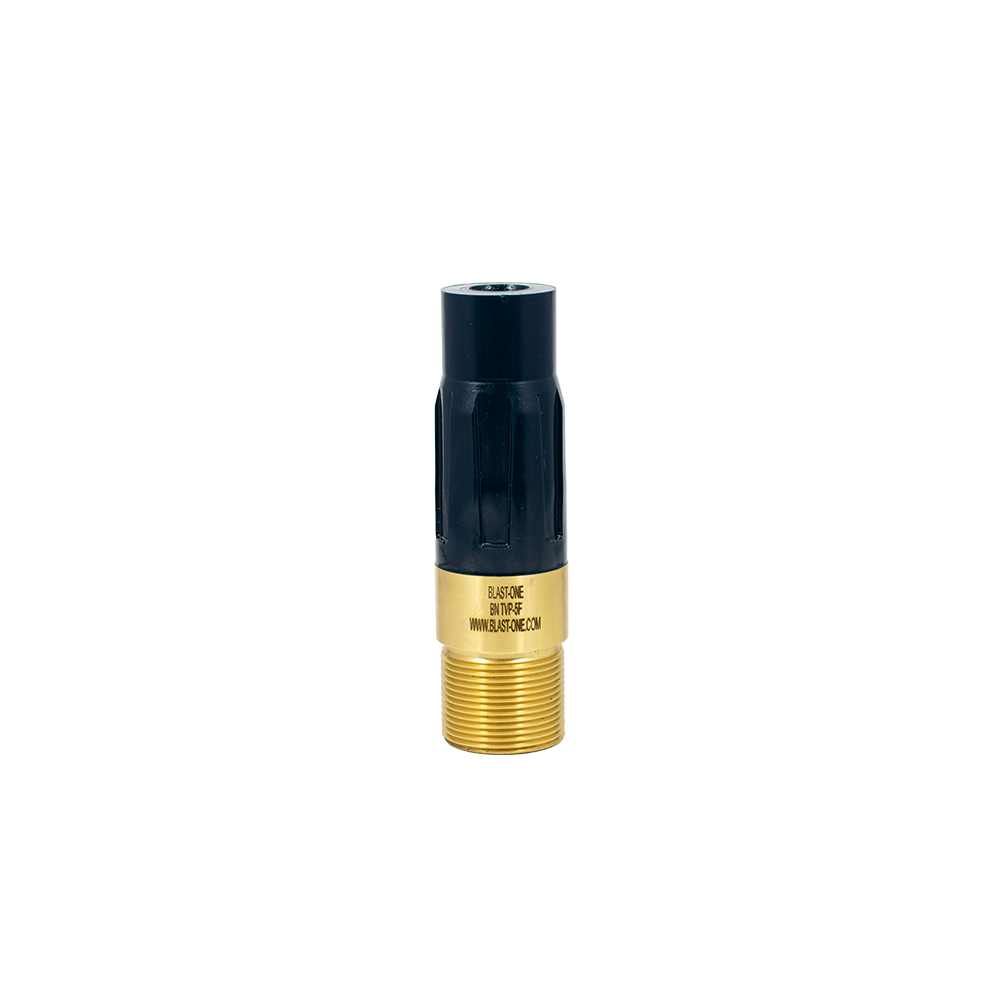

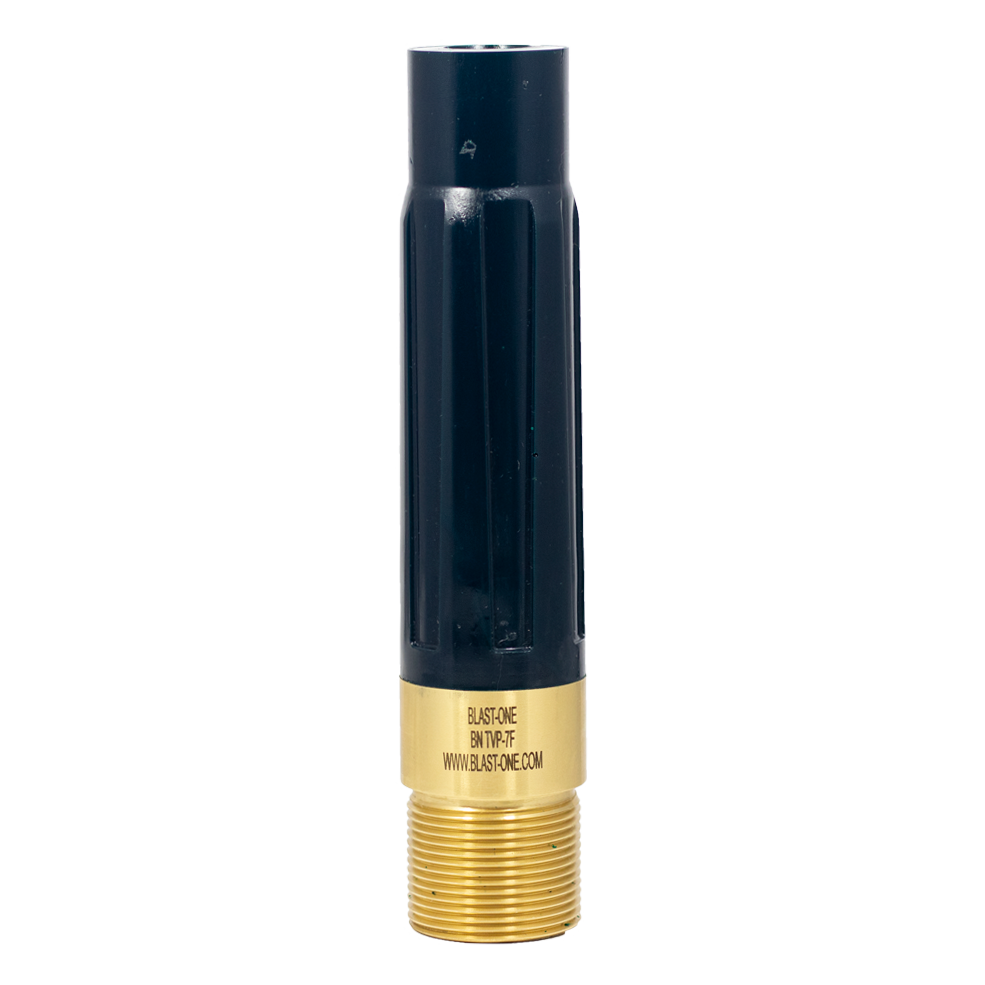

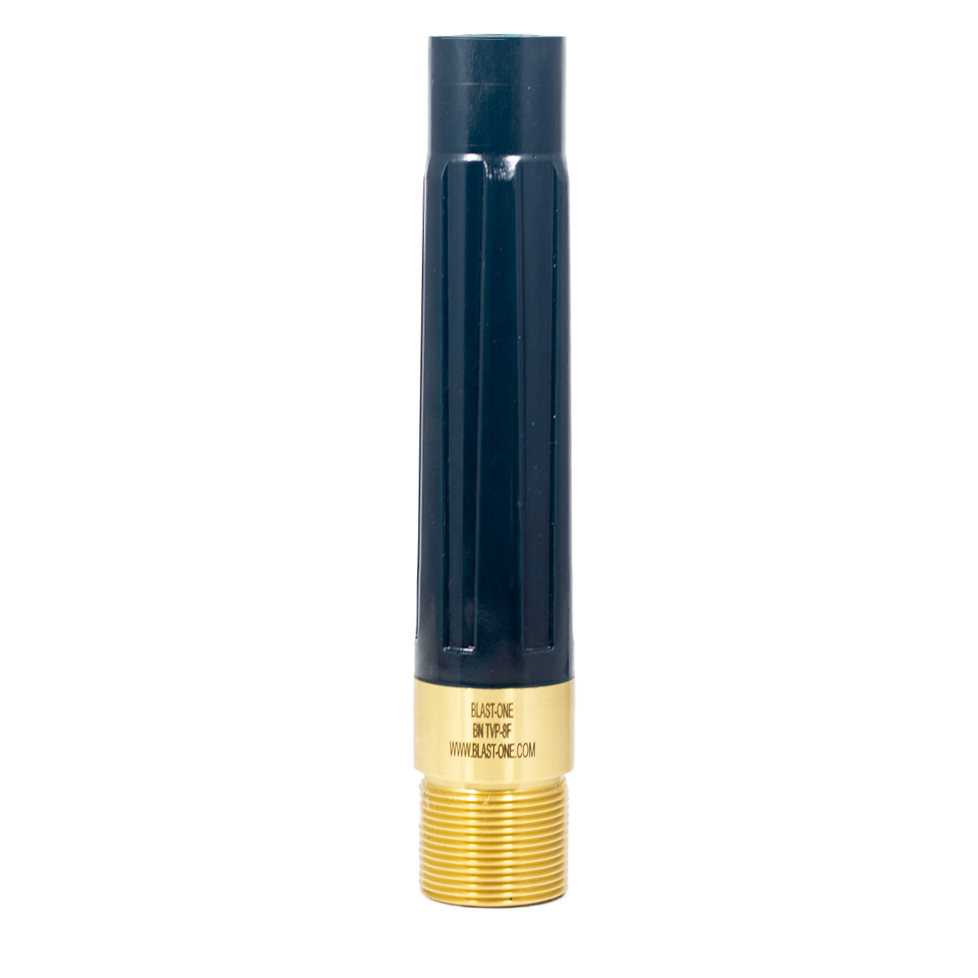

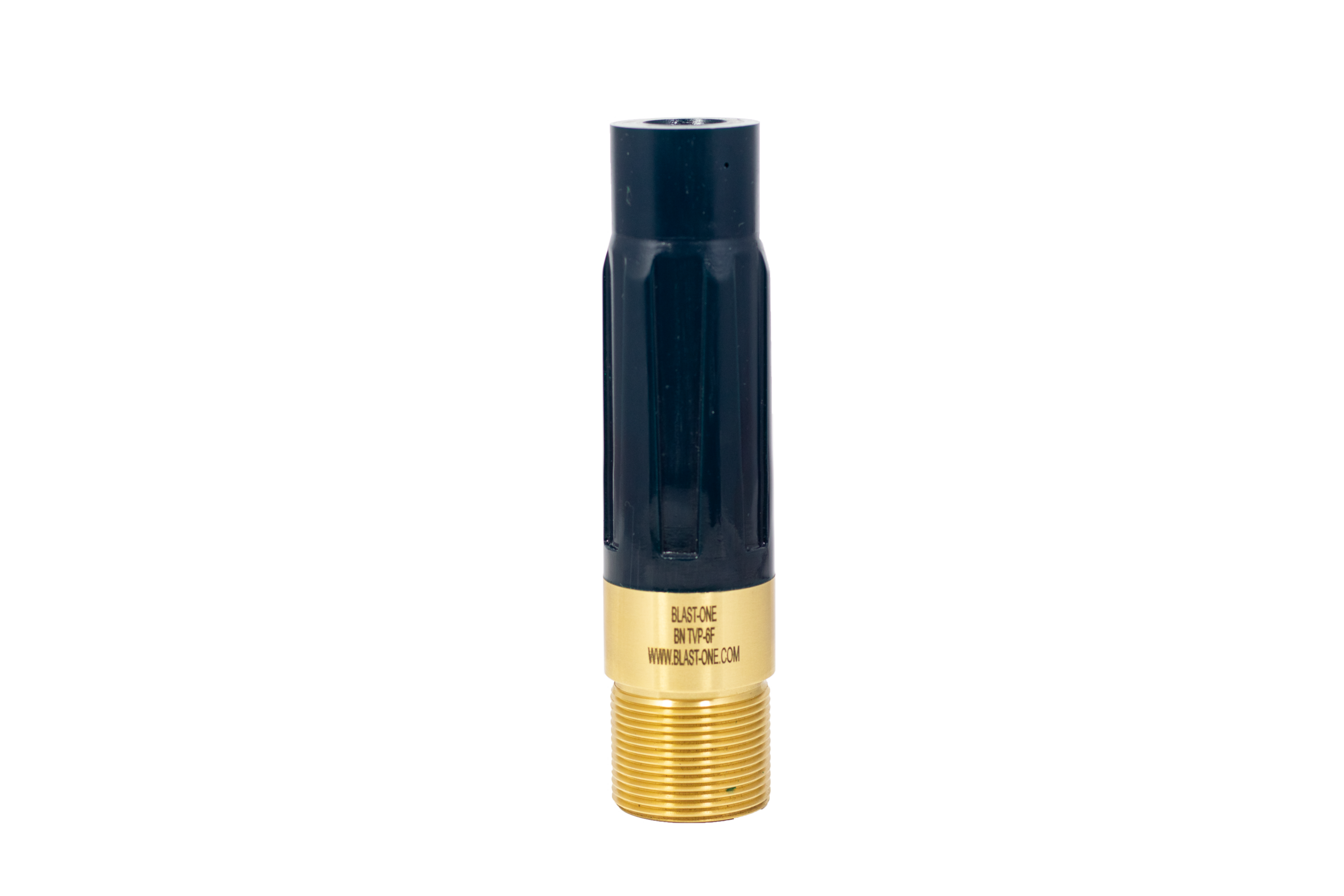

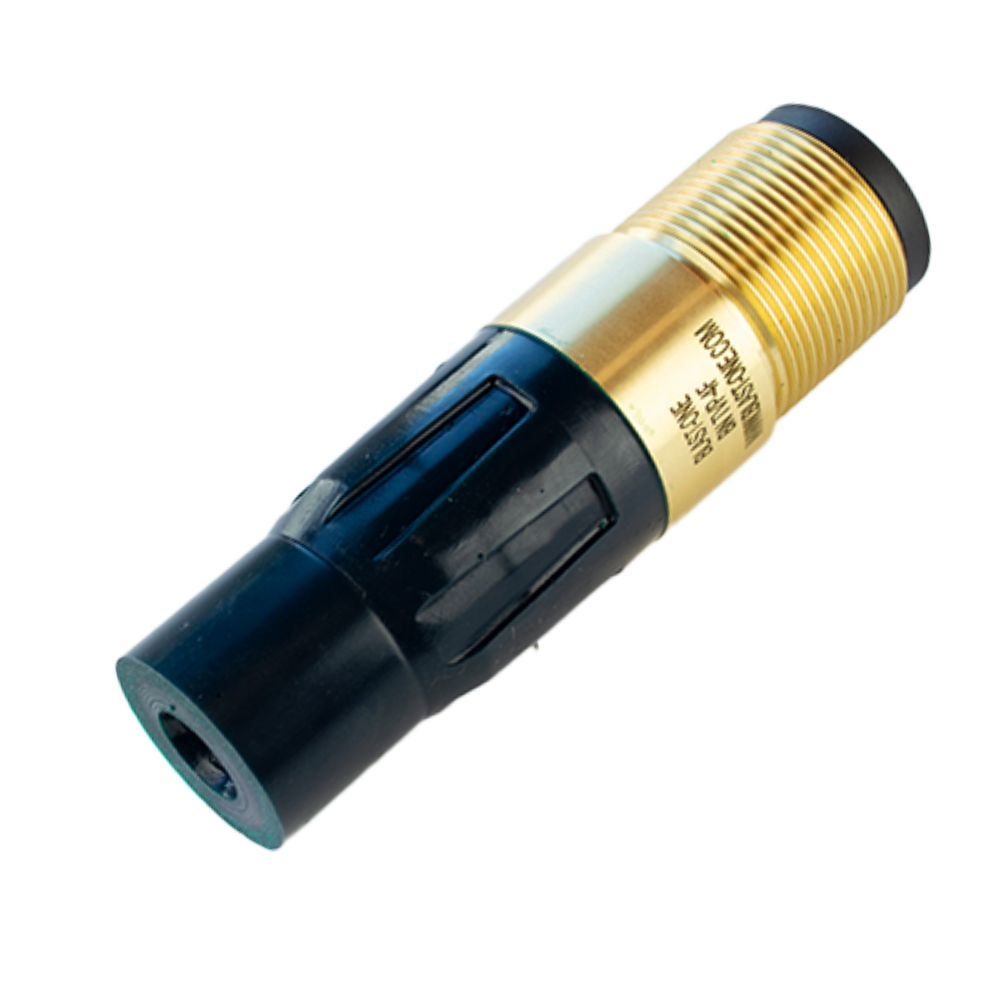

HEAVY DUTY Tungsten Carbide Blast Nozzle

SKU: P-BNTVP
  • Industrial-strength abrasive blasting nozzle
  • 1-1/4″ NPSM (32mm) fine industrial brass threads
  • Nozzle sizes 3/16″ – 1/4″ have 1″ (25mm) wide throat entry, long venturi
  • Nozzle sizes 5/16″ – 3/4″ have 1 1/4″ (32mm) wide throat entry, long venturi
  • Tungsten carbide liner provides enhanced durability
  • Brass thread polyurethane jacket
  • Polyurethane jacket and thread nozzles available upon request
  • Sold Individually
  • Recommended Upgrade: Ultra-Tuff Blast Nozzle – 2x life, 50% weight

HEAVY DUTY Tungsten Carbide Blast Nozzle

SKU: P-BNTVP

Web price i
Please sign in to your account to see your pricing, which may be different from the price displayed.

$142.00 - $370.00

Ship to 20149

$142.00$370.00

Description

The Heavy Duty Tungsten Carbide Blast Nozzle is an industrial-strength abrasive blasting nozzle designed for superior performance and durability. Its long venturi-style design increases production rates by about 40% compared to straight-bore nozzles, while also providing a more even abrasive dispersion across the blast pattern.

Key features of the Heavy Duty Tungsten Carbide Blast Nozzle include:

  • 1-1/4″ NPSM (32 mm) fine industrial brass threads
  • Long venturi design for increased abrasive speed and dispersion
  • Tungsten carbide liner for enhanced durability and wear life of 200-500 hours
  • Brass thread polyurethane jacket for impact protection and lighter weight
  • Replace nozzles when they wear to the next size larger to maintain optimum pressure and performance
  • Available in multiple sizes, with 1″ (25 mm) wide throat entry for 3/16″ – 1/4″ and 1 1/4″ (32 mm) wide throat entry for 5/16″ – 3/4″ nozzles
  • Polyurethane jacket and thread nozzles available upon request
  • Recommended upgrade: Ultra-Tuff Blast Nozzle for double the life and 50% less weight

Maintaining adequate pressure at the nozzle (100 psi) ensures optimal blasting speeds and performance. Replacing your nozzle before it enlarges to the next size will save you time and money in the long run. Experience the difference with the Heavy Duty Tungsten Carbide Blast Nozzle.
