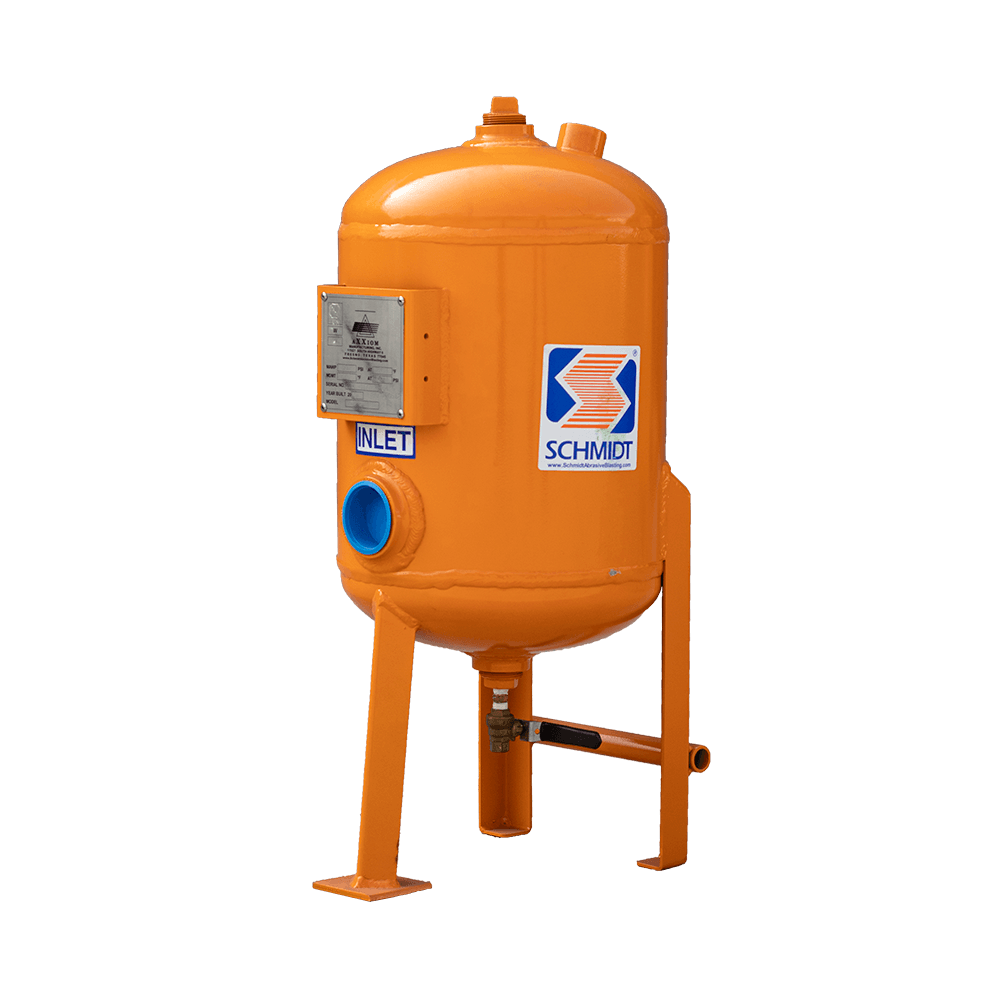

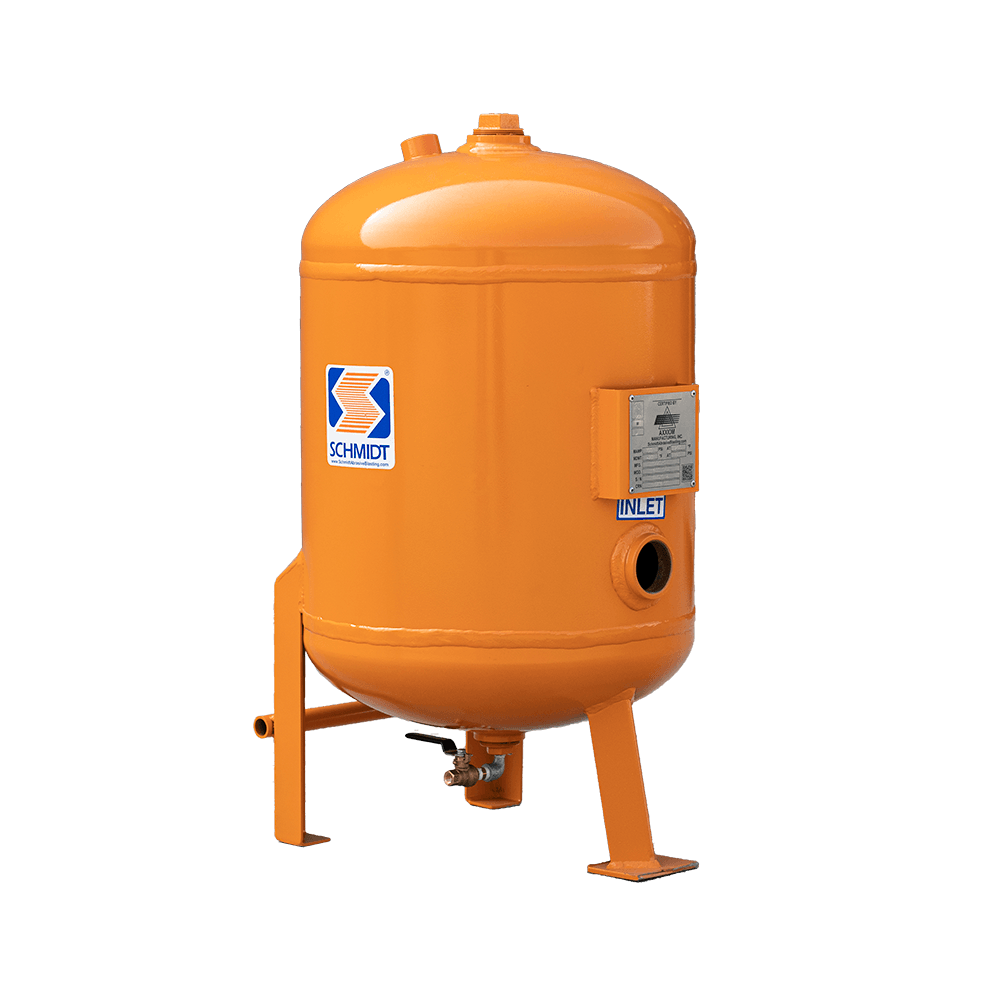

High Capacity Portable Moisture Separator
Built by Schmidt®, these moisture separators are available in multiple versions as follows:
- Size
- 800 or 1600 CFM capacity
- Configuration
- Stationary or Portable (with handle, axle & wheels)
- Fittings

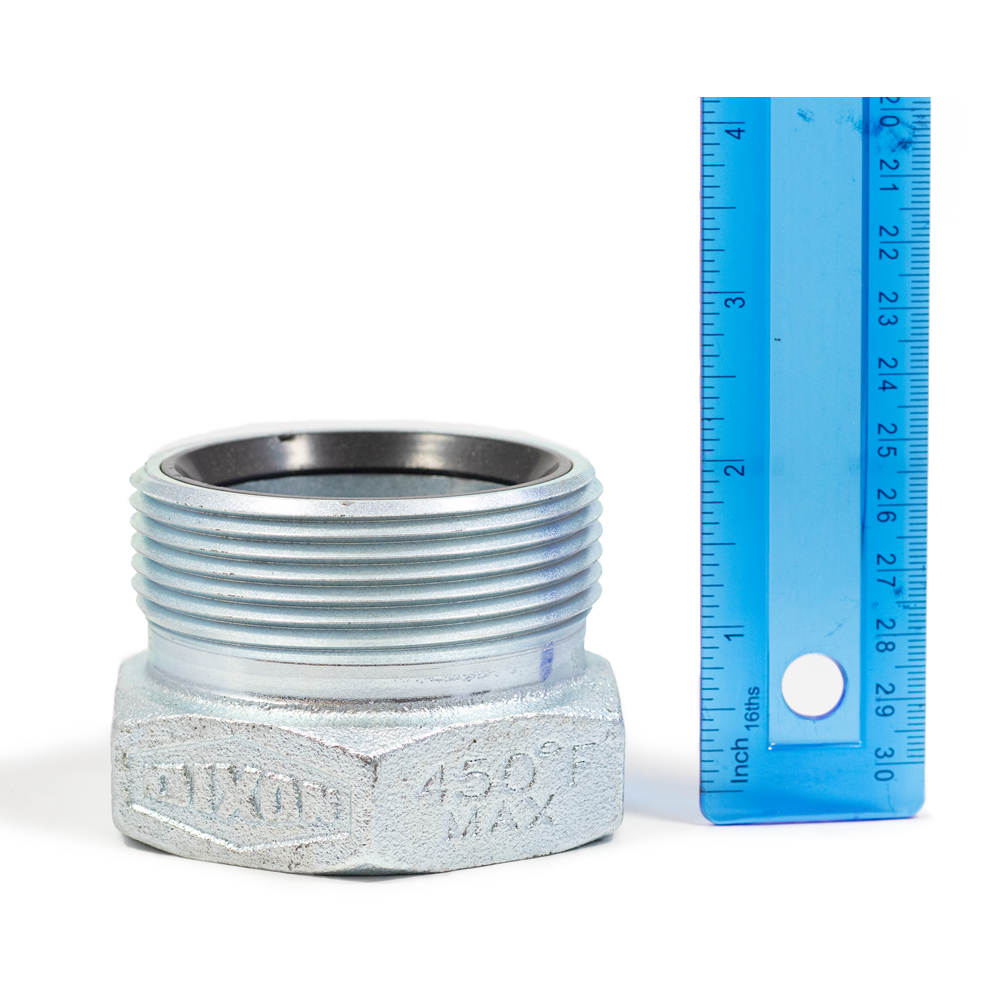

- Built with 2″ NPT ports on both Inlet and Outlet, these can be equipped with your choice of Spud or 4-claw fittings, ball valves, splitters, etc.
Note: Fittings are optional and must be ordered separately. See You May Also Like below.
High Capacity Portable Moisture Separator
SKU: P-AFMSHDescription

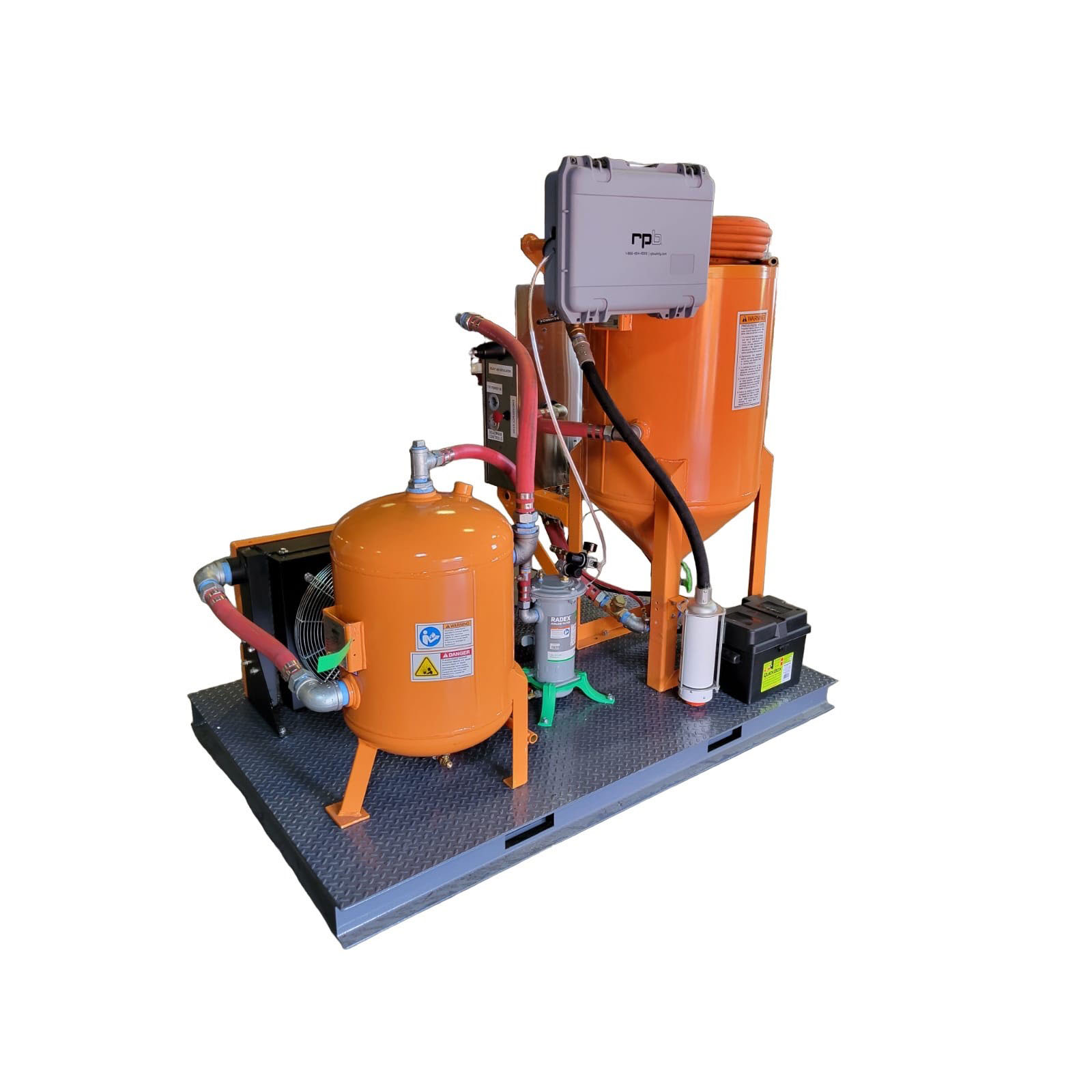

Moisture removal is essential for high performance abrasive blasting. Primary air drying is best accomplished by using a drop-out tank in combination with an aftercooler and often, a deliquescent tablet system.

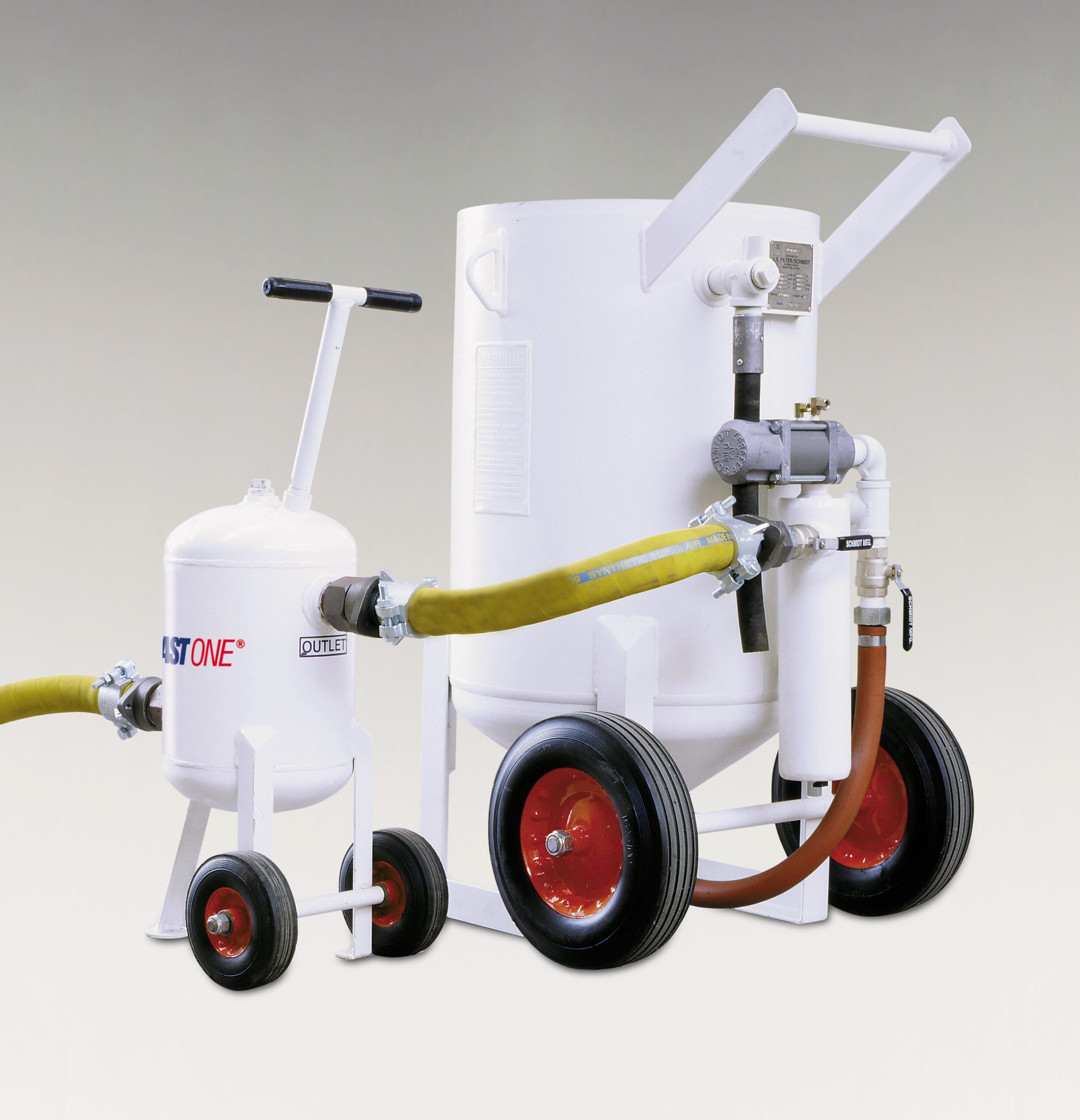

When the primary air dryer is at a distance from the blast pot, best practice dictates that a secondary drop-out tank would be placed in-line immediately before the blast pot.
Introducing the Portable Moisture Separator, an essential tool for clean, dry air in production blasting. With clean, dry air, you can easily achieve up to 15% faster blasting. Experience no choking of your blast machine, no constant adjustment of your abrasive metering valve, and no never-ending clearing of damp abrasive from your blast machine. Enjoy a constant supply of clean and lean air and abrasive mix. Key Features:
- Inlet size 2″ (50 mm) female thread
- Outlet sizes: 2″ (50 mm) female thread – 1″ (25 mm) female thread – plugged (top outlet)
- Rated at 150 PSI
- Connected in-line close to the blast machine
- Expansion flow-chamber design with internal stainless steel coalescing element
- Highly effective moisture droplet removal for peak productive blasting with minimal pressure loss
- Supplied with manual drain valve
- Heavy-duty construction ensures durability in abrasive blasting operation

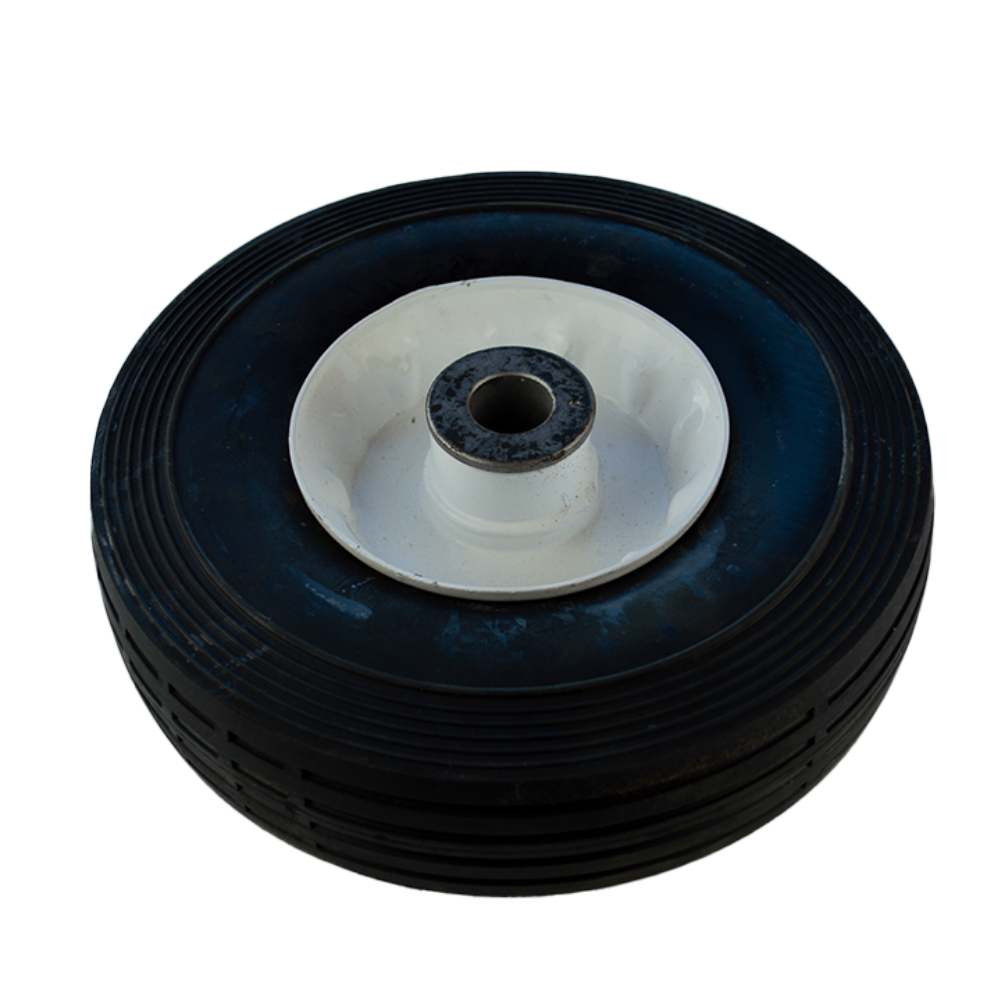

- Optionally includes axle, wheels, and handle
- Air fittings not included – specify and order separately
