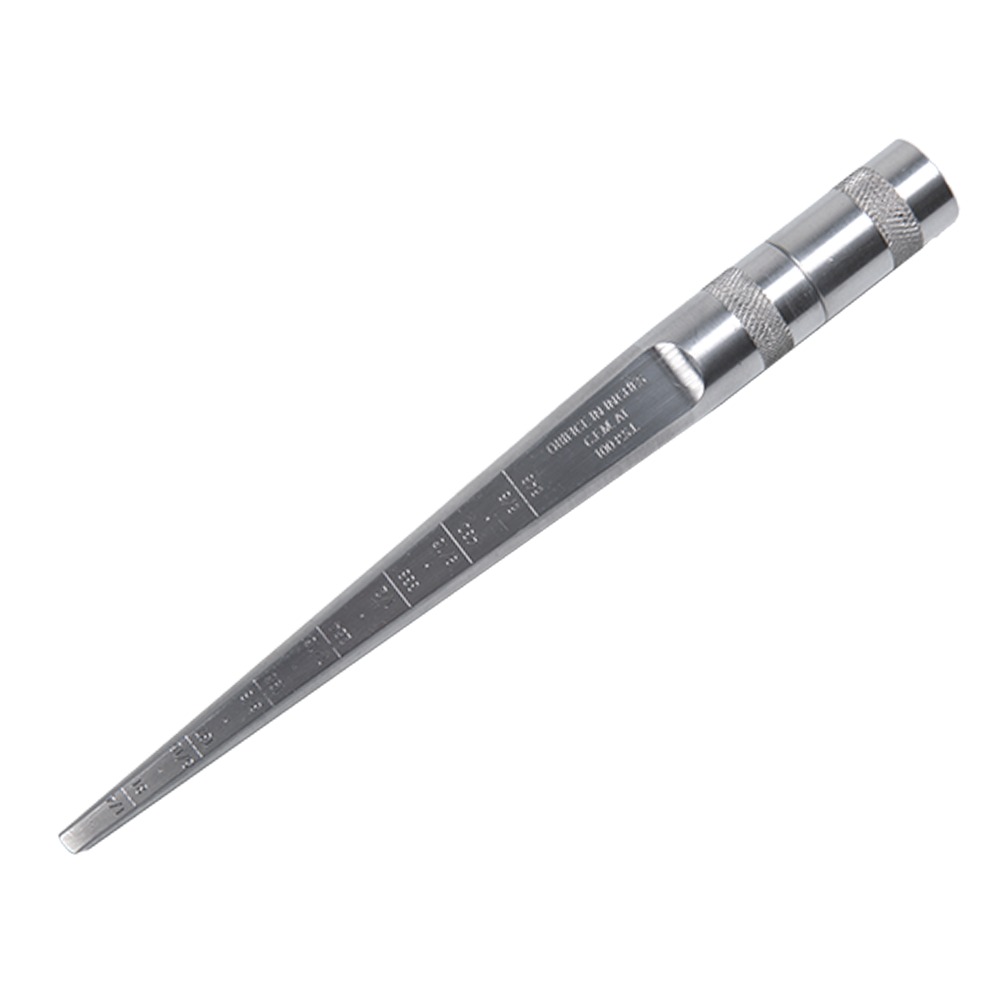

Nozzle Wear Size Analyzer Gauge

  • Used to determine the internal diameter of a blast nozzle orifice
  • Allows you to determine the level of wear of the blast nozzle
  • Comes with a removable cap and crayon
  • Has size markings to allow you to see quickly what size your nozzle is
  • Sold Individually

In stock

Nozzle Wear Size Analyzer Gauge

Web price i
Please sign in to your account to see your pricing, which may be different from the price displayed.


Worn nozzles cost money! We recommend you replace your nozzles when they wear out 1/32 of an inch, this is 1/2 a size…

A venturi blast nozzle interior has a shape and length specifically designed for it’s orifice size. This is to ensure optimum performance and efficiency. A worn nozzle is more costly to use for two reasons…

  • A bigger orifice requires more compressed air to maintain a desired pressure.
  • The even spread of abrasive across the blast pattern deteriorates as the blast nozzles wears.

To check the amount of wear in your nozzle…

  • Mark the rear of the engraved section of the gauge with a crayon.
  • Insert the gauge into the rear of the nozzle (threaded end).
  • Orifice size can be determined by observing the highest orifice size marking from which the crayon has been removed.
