Nozzle Thread Adaptors

SKU: P-HFNHA

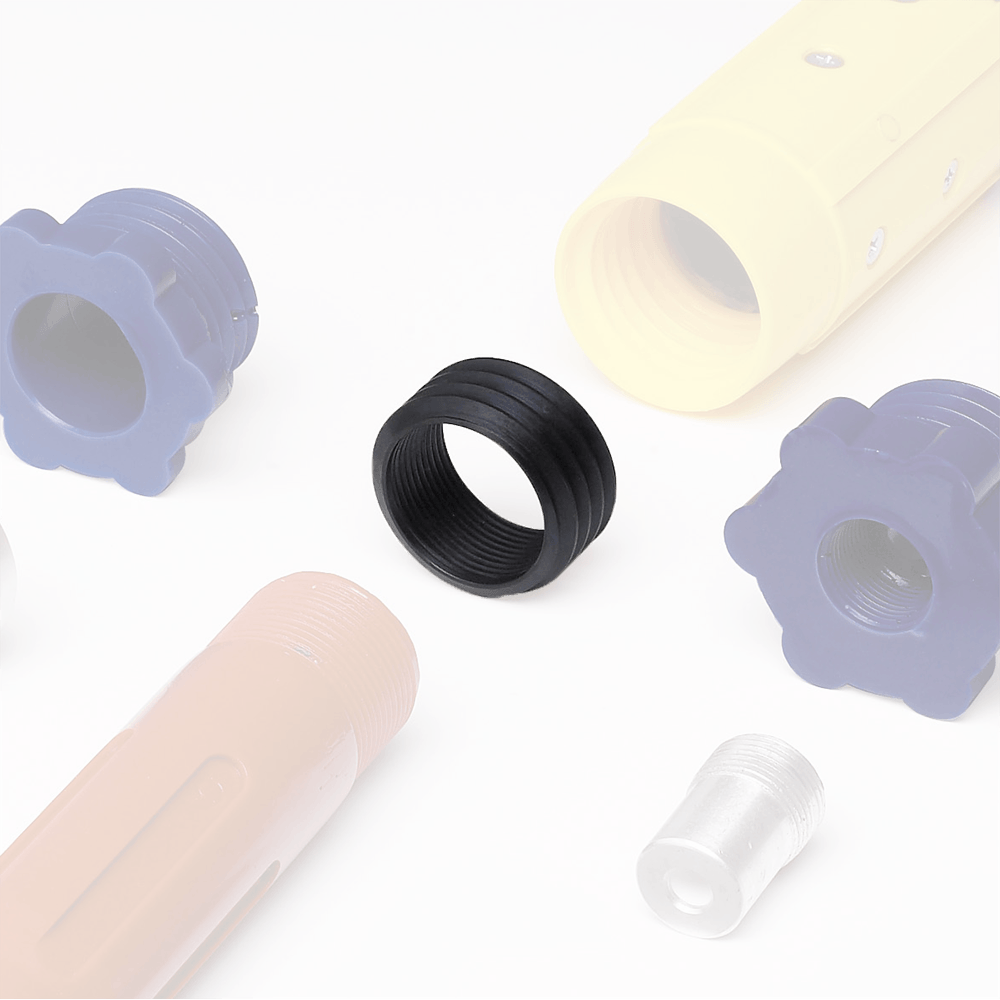

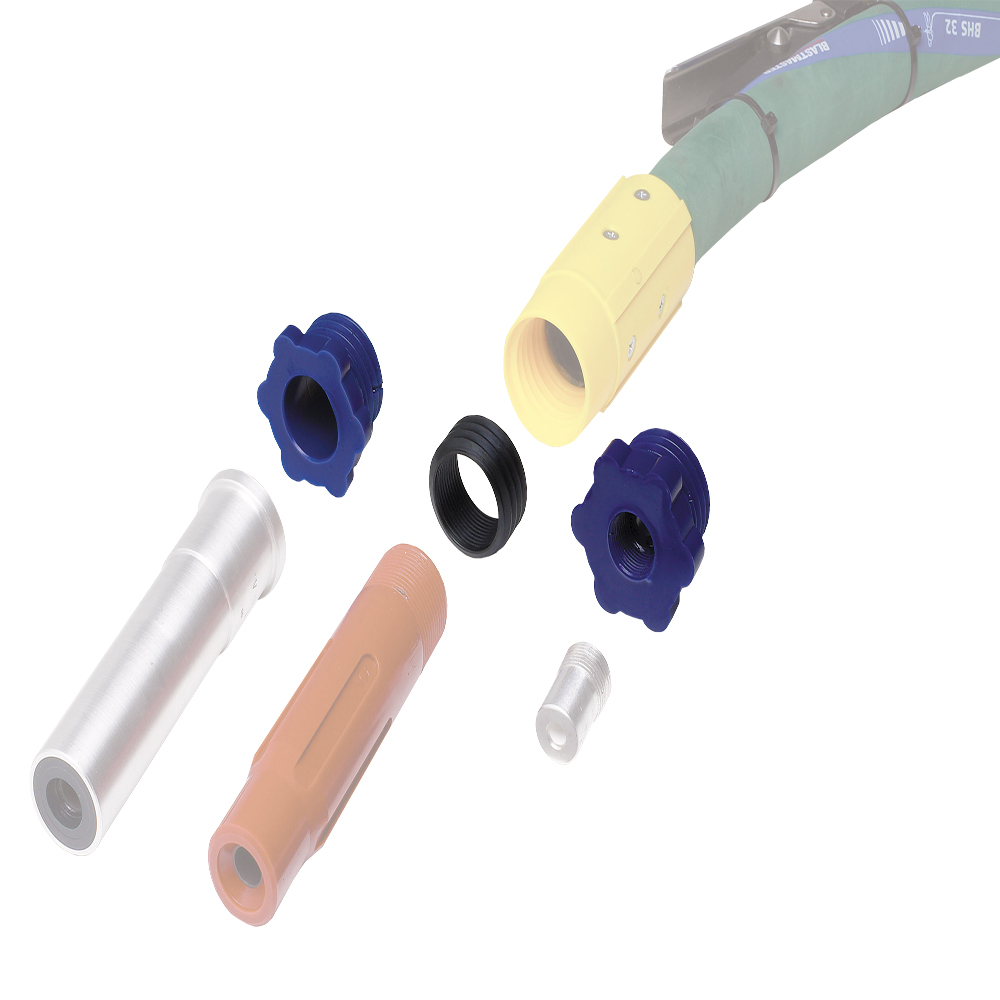

Thread adapters are a convenient way to allow nozzles of one thread type to be used in nozzle holders of a different type.

Boron Carbide is the longest life version, but not available in all configurations.  Polyurethane, steel, aluminum, etc. are also available and are lower in cost.

  • Available configurations:
    • Contractor (2″ / 50mm) Thread Nozzle Holders to:
      • ¾” (20mm) Medium Thread nozzles
      • 1-¼” (32mm) Fine Thread nozzles
      • Flange nozzles
    • Fine (1-¼” / 32mm) Thread Nozzle Holders to:
      • ¾” (20mm) Medium Thread nozzles
      • Coming soon:  2″ / 50mm Contractor thread nozzles

Nozzle Thread Adaptors

SKU: P-HFNHA

Web price i
Please sign in to your account to see your pricing, which may be different from the price displayed.

$15.92 - $344.00

Ship to 20149

$15.92$344.00

Description

HFNHA20 – Polyurethane adaptor that allows medium 3/4″ thread nozzles to be used in a contractor (2″) thread nozzle holder. Best for use in light-duty or temporary applications. Has slight grips in the outer mold for easy removal from the holder. Wear is reduced because of the abrasion-resistant polyurethane material used in its manufacture. Pulls the nozzle up against the seat in the nozzle holder for a good seal & protection of the thread end. The interior shape of the adapter allows the convergence of the air & abrasive flow into the narrower Medium thread nozzle entry.

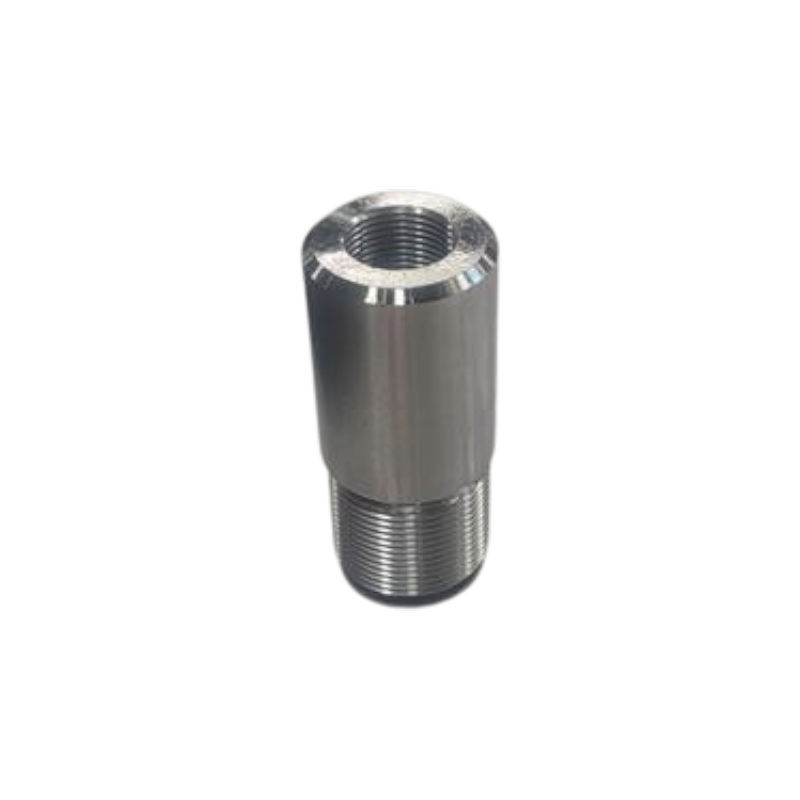

HFNHA32 – Steel adaptor that allows fine thread nozzles to be used in a contractor thread nozzle holder. Simple design with Coarse 2″ Contractor threads on the outer surface & 1-1/4″ NPSM threads on the inner.

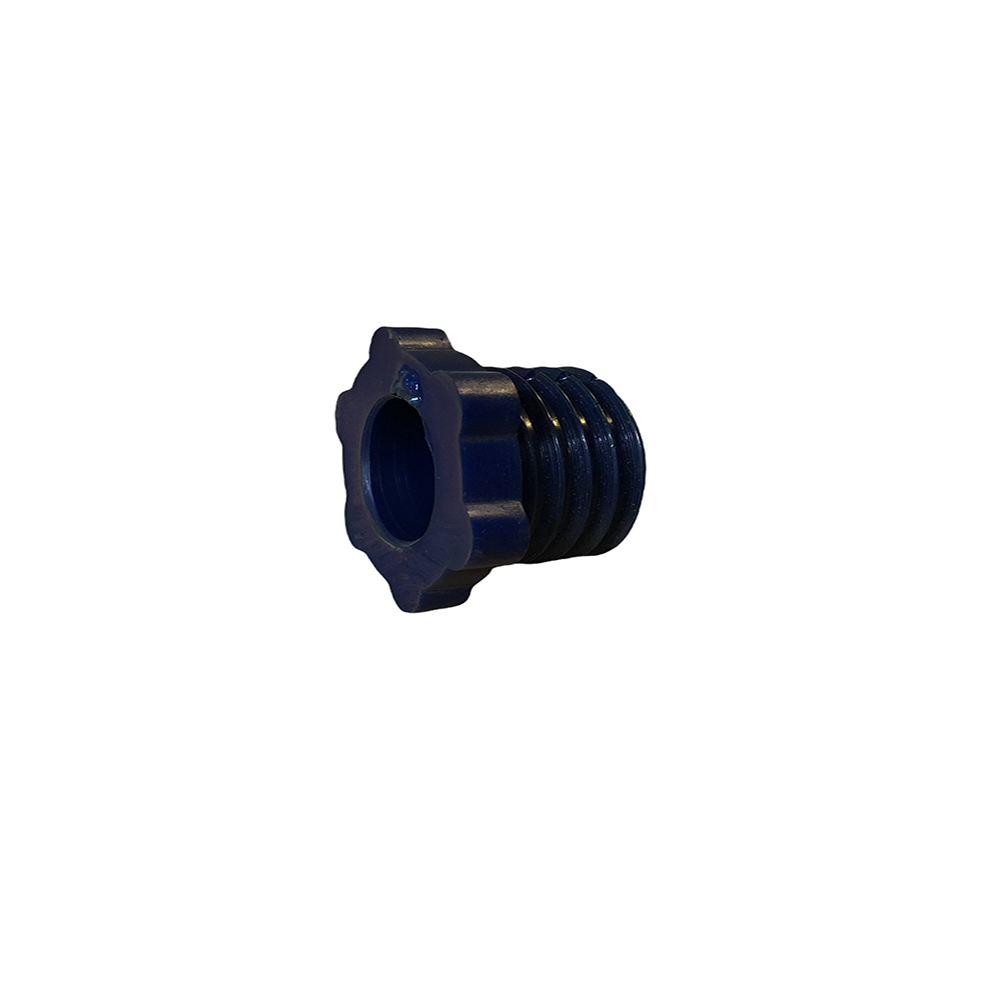

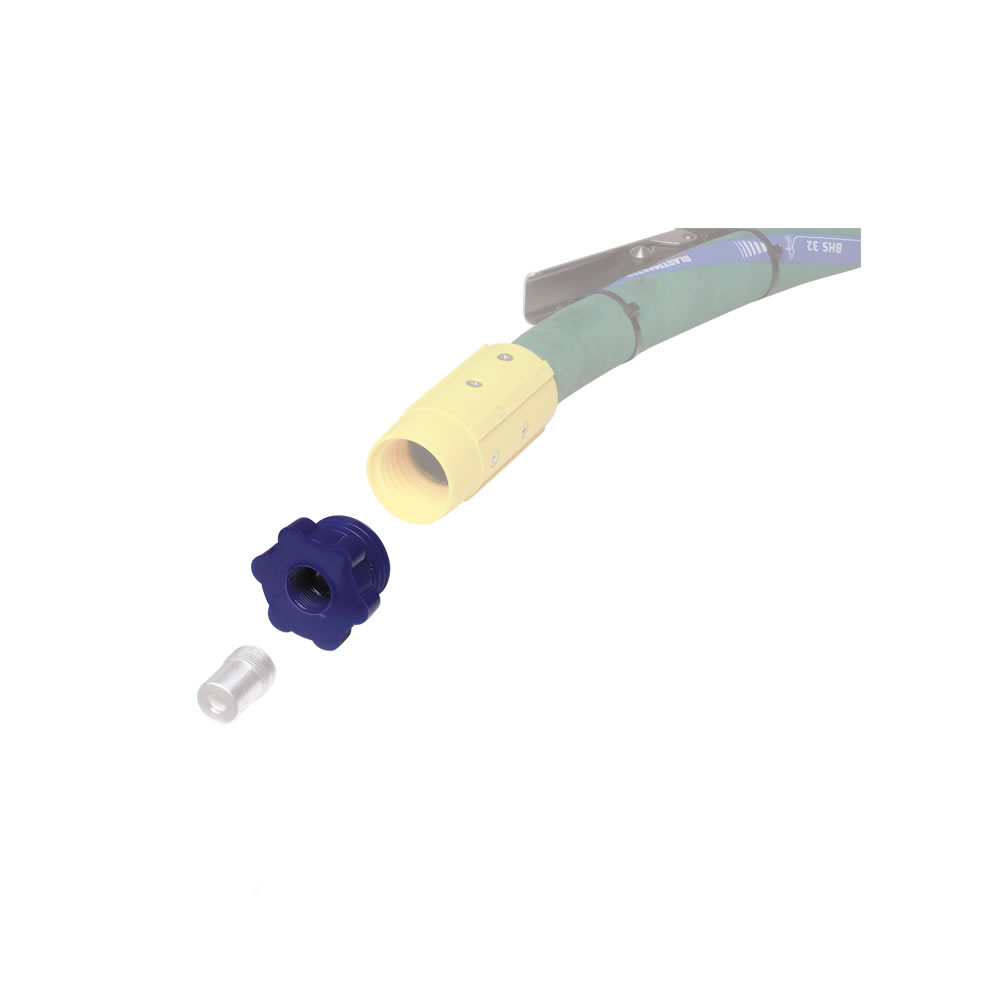

HFNHAFL – Polyurethane adapter allows flanged nozzles (with no thread) to be used with a 2″ (50mm) Contractor thread nozzle holder, like HFPNH2
