High Voltage Holiday Calculator

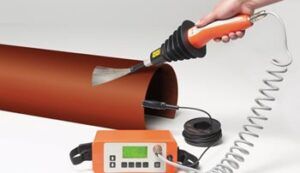

MAKING SURE YOU HAVE THE CORRECT VOLTAGE FOR YOUR HIGH VOLTAGE DETECTOR

A high voltage passes through the conductive substrate to finish the electrical circuit. In order to pass the right level of current, depending on how thick the coating is, the holiday detector needs to be altered.

The detector will activate an alarm where there is a defect in the coating. The High Voltage Holiday Detector is to be used in accordance with ISO2746, AS3894-1 Standards.

Gather the data below:

  • Dry Film Thickness (micron)
  • Coating Factor

Calculating the correct voltage for your high voltage detector

A high voltage holiday detector works by passing a high voltage through to the conductive substrate to complete the electrical circu

i

t. The holiday detector needs to be adjusted to pass the correct level of current depending on the thickness of the coating. Where the coating has a defect and the circuit is completed, the detector will activate an audible and visual alarm.

Used in accordance with ISO2746, AS3894-1 Standards.

It’s important to collect the following data:

  • Dry Film Thickness (micron)
  • Coating Factor

Dry Film Thickness

Use DFT in Microns (Mils x 25.4)



Coating Factor

- Select Factor -
- Select Factor - Ultra Hi-Builds (80%+ Solids volume solids) Hi-Builds (60% - 79% volume solids) Medium Builds (40% - 59% volume solids) Low Builds (15% - 39% volume solids)

Your Test Voltage

DISCLAIMER: The above calculator is only a guide and does not represent nor claim to be either a full or complete or accurate nor an approved or standard method of calculating blasting efficiency. It is the responsibility of the reader and/or users of this information to determine and verify each calculation as required in or by any work specifications and/or standards. Blast-One™ expressly disclaims any liability for the use or misuse of the above information.
