Graco Xtreme XL Airless Spray Painting Machine

  • The Graco Xtreme XL Airless Spray Painting Machine has the largest air motor allowing higher pressures to be sprayed
  • aka – King High Flow Sprayer
  • 10,000, 13″ air motor
  • Ideal for large jobs that require a high-output sprayer, to support multiple spray guns
  • Handles the workload equivalent of multiple sprayers

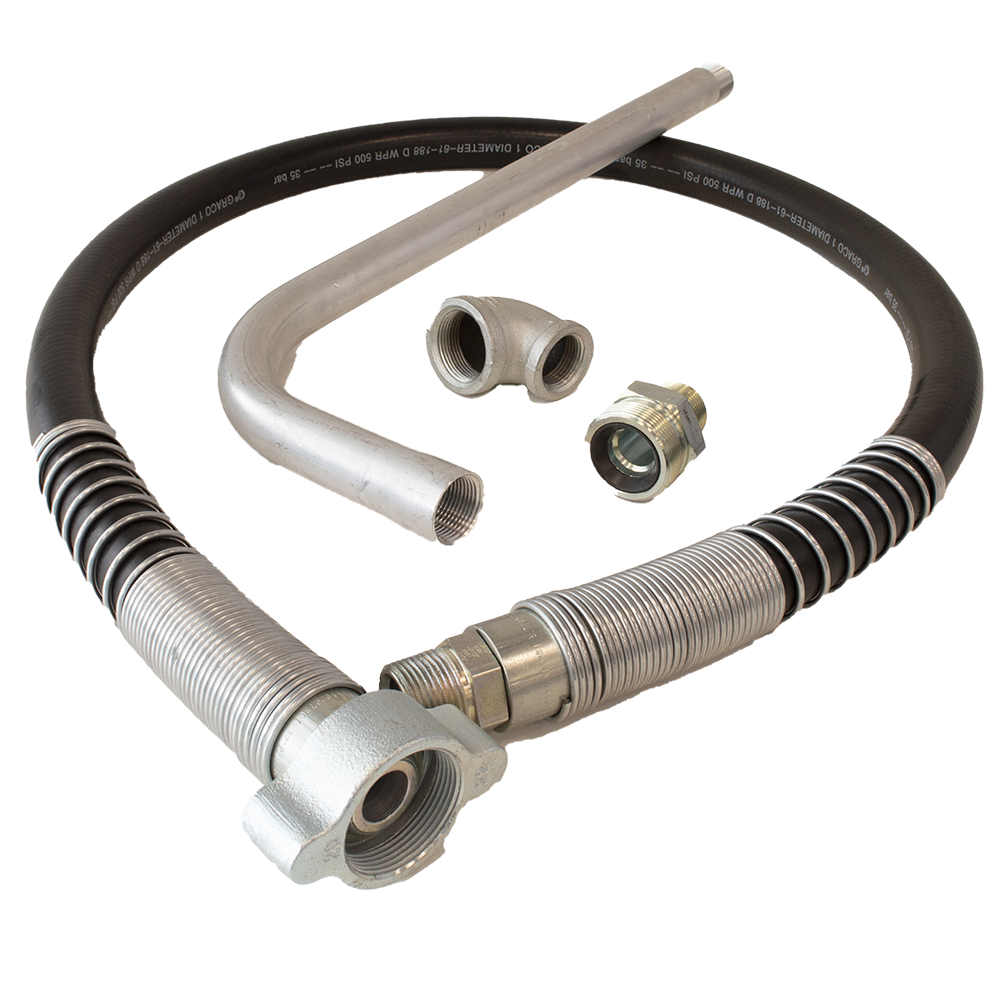

  • Includes: Integrated filter, heavy duty cart, air kit, siphon kit and hose/gun kit
  • Genuine product – manufactured by Graco
  • Pump Size Calculator

Graco Xtreme XL Airless Spray Painting Machine


Web price i
Please sign in to your account to see your pricing, which may be different from the price displayed.

$12,340.00 - $12,840.00

Ship to 20149



The Xtreme XL Airless Spray Painting Machine is the largest single-leg sprayer created by Graco. It’s high-quality and prepared for high pressure and high-volume situations. This durable, portable and quality product his faster and more efficient for larger projects.


  • A 10,000 cc, 13″ XL air motor: can handle the workload equivalent of multiple sprayers, durable and efficient. This, coupled with a 290cc lower gives you 60% more fluid flow at the same pressure – compared to the standard King
  • Easy accessibility: with exposed poppets and external piolots, troubleshooting and maintenance can be done quickly and efficiently.
  • Low pulsation: even with many sprayers and high pressure
  • Air piloted: allows sharper changeovers
  • De-Ice bleed air control: will maintain its performance even under heavy icing conditions
  • Quiet Operation: even in comparison with smaller motors
  • High Pressure Rating: allows for spraying high industrial coatings
  • Manual Shuttle Override Button: allows a manual restart to the motor if the main valve ices up
  • 70:1 ratio: will spray up to 100% solids, as well as any abrasive-infused coatings
  • Minimal to no pressure loss: even when running multiple guns with large tips

Specifications for the XL70 – 180: 60:1

  • Ratio: 60:1
  • Max operating air pressure 100 psi
  • Max fluid working pressure: 6,000 psi
  • Fluid flow at 60cpm: 129 lpm
  • Max free flow output: 38 lpm

Specifications for the XL80 – 70:1

  • Ratio: 70:1
  • Output per cycle (cc): 250
  • Max working pressure: 7,250 psi
  • Max air input pressure: 88 psi
  • Output at 60 cycles/min lpm: 15:1 (4)
