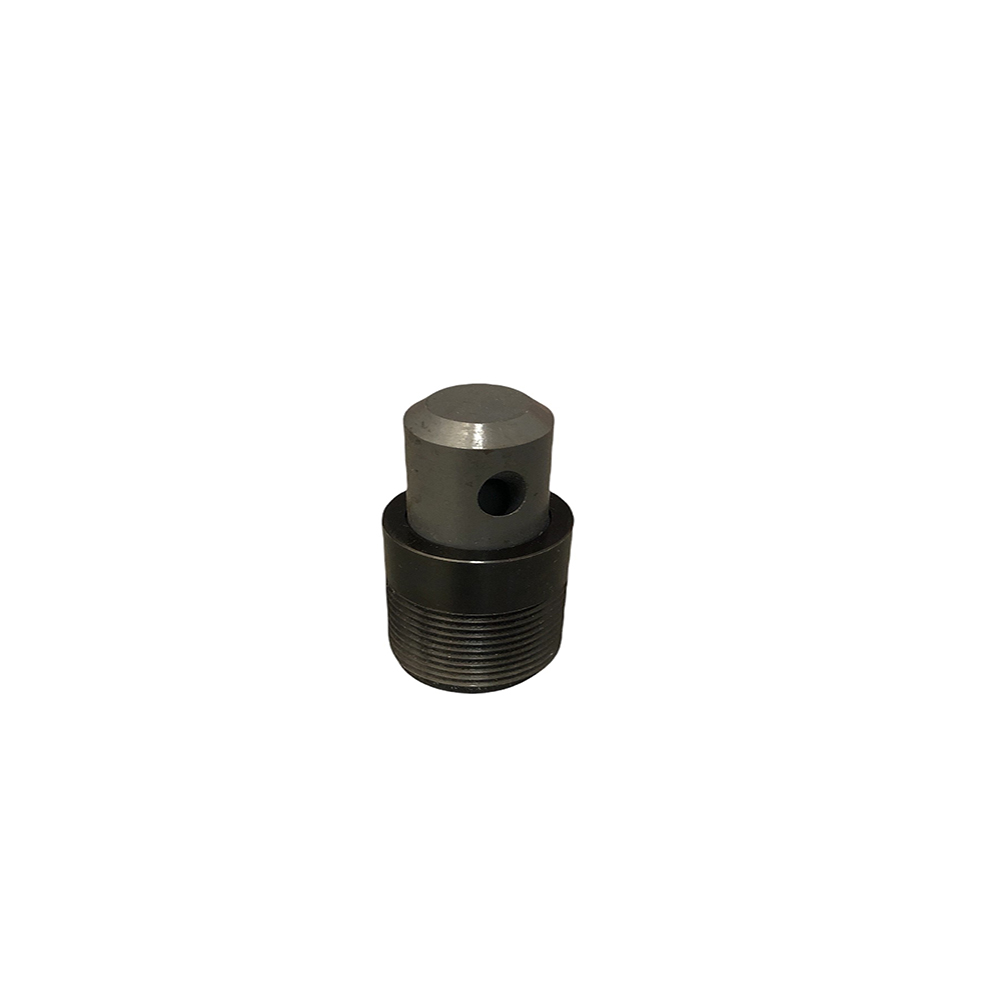

ATA Series Angle Blast Nozzle

Sized between the Tite Space and the full size nozzles, the ATA series of angle nozzles come standard with ¾” Medium Threads. They are excellent for applications requiring the operator to operate in small areas, especially when paired with a small bore whip-hose. Basic specs are:

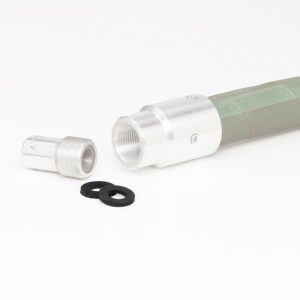

• 3/4″ (20mm) Medium male thread (other options available by special order).  Can be used in standard Fine or Coarse nozzle holders by use of a thread adapter available here.
• 1/2″ (13mm) throat entry
• 45° forward, 90° right angle, and 135° reverse blast pattern options available
• Some sizes are available in Double, Triple or Quad orifices
  • Note:  Using nozzles with multiple orifices will multiply the compressed air CFM requirement accordingly
• Tungsten carbide liner.  Extended life liners for large projects available by special order.
• Short 2-1/8″ length

Contact us for additional options available by special order.
