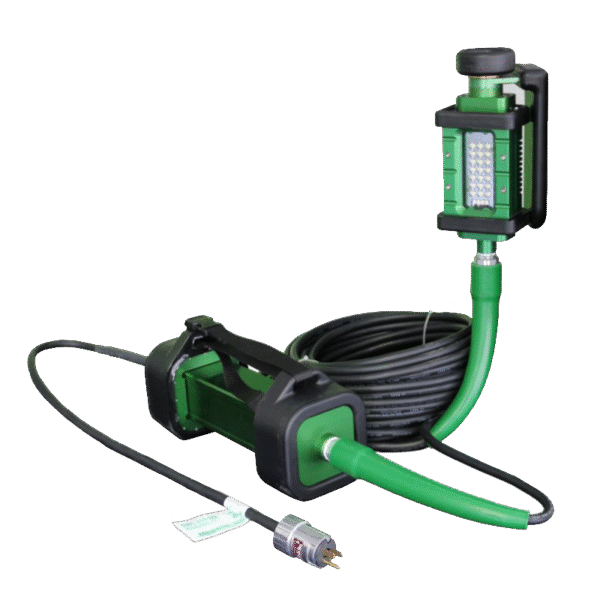

Western Technology Brickette Explosion Proof LED Blast Light

SKU: P-BABL21
Web price i
Please sign in to your account to see your pricing, which may be different from the price displayed.
$2,532.32 - $13,297.47
  • Highly Portable and Explosion Proof LED Blast Light
  • Can be used as a mounted area light or a hand held light
  • Suitable for Hazardous and Wet Locations
  • Class I, Div 1 & 2 and Class II, Div 1 & 2 Rated
  • Smaller version of the Brick Light
  • #1 preferred area light for travelling blasters and painters
  • Stringer and Medusa light packages available – Made to order only
  • Genuine Parts – Manufactured by Western Technology
Clear
Web price i
Please sign in to your account to see your pricing, which may be different from the price displayed.

$2,532.32 - $13,297.47

Ship to 20149

Description

The BRICKette Explosion Proof Blast Light is a world class industrial light that is built Kick-it-Tough. Made to accommodate smaller work spaces where you need to be delicate how you are handling it and where you place it.

Manufactured by Western Technology in Seattle Washington.. The BRICKette is built from a single block of Aluminum with polyurethane bumpers to guaranteed its not to break, even when used by blasters and painters in the harshest of environments.

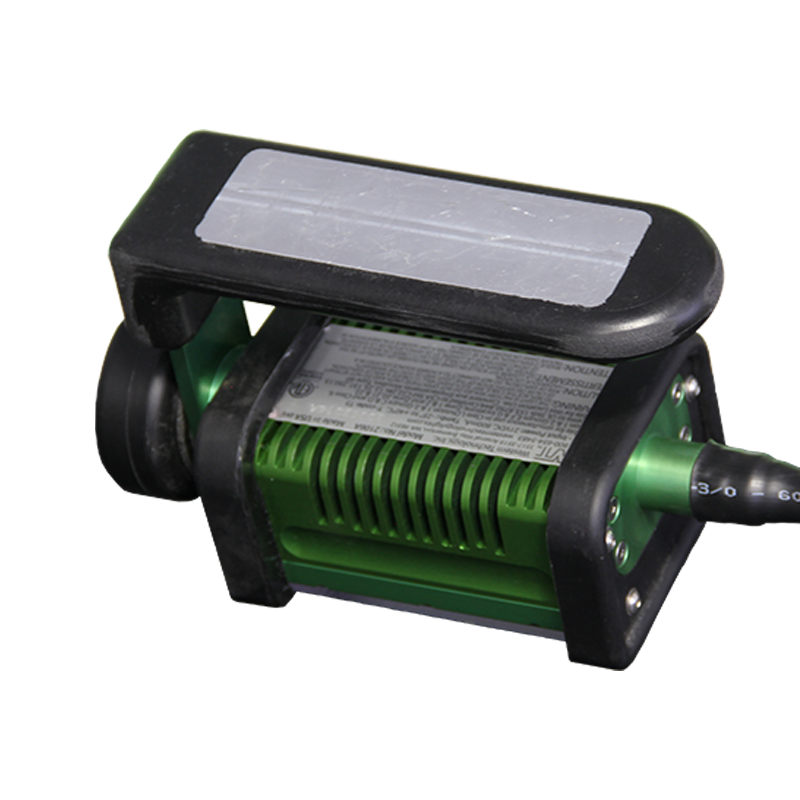

Magnetic long handle can be used a multitude of ways including

  • Magnetically attach to steel pipes, beams or walls
  • Use the handle to hang over ropes, scaffold tubes or pipework
  • The handle is large enough to act as a sturdy base for floor mounting as well

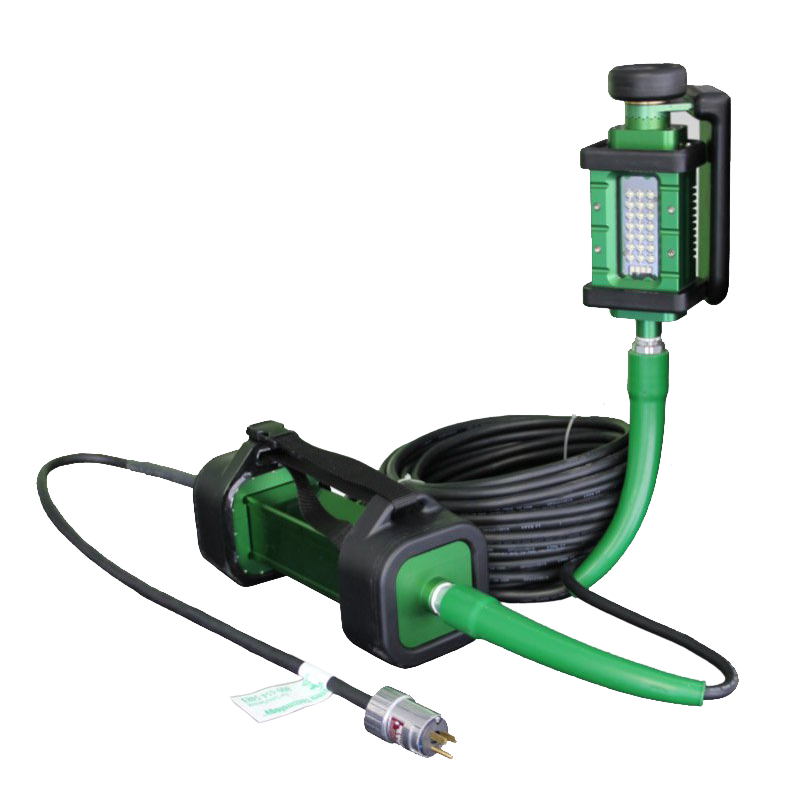

The Power Box is very flexible, you can power 1 light, or power five lights in a string (Stringer Lights) or on 5 separate cables (Medusa). each light has a dimmer so each operator with a light can adjust the brightness to exactly what they need.

Popular Accessories

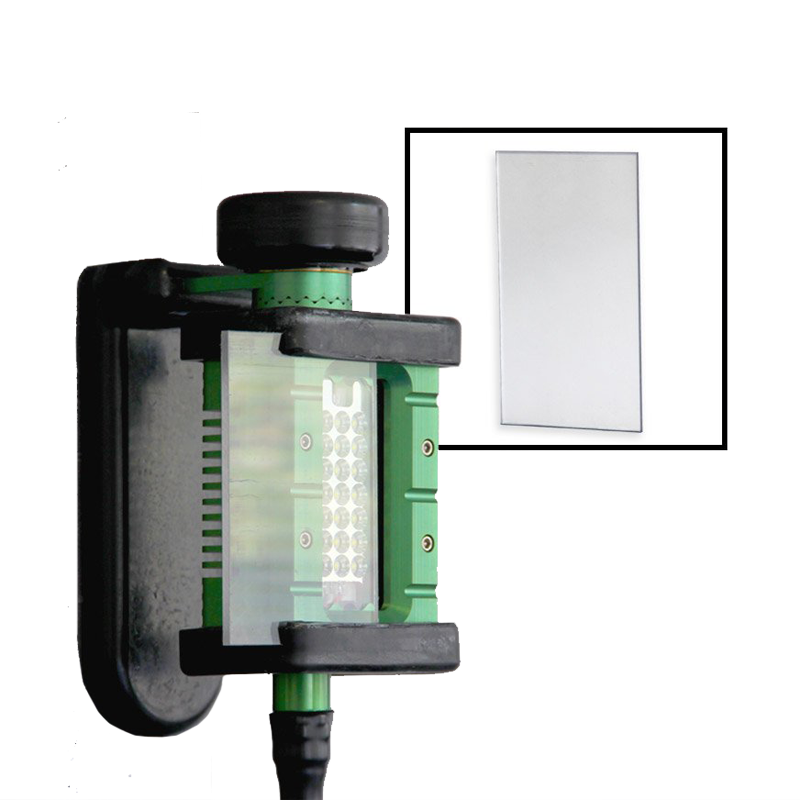

Blast Shields – to protect the inner lens from wearing when blasting
OverSpray Bags – protect the light when you are painting. Makes clean up a breeze

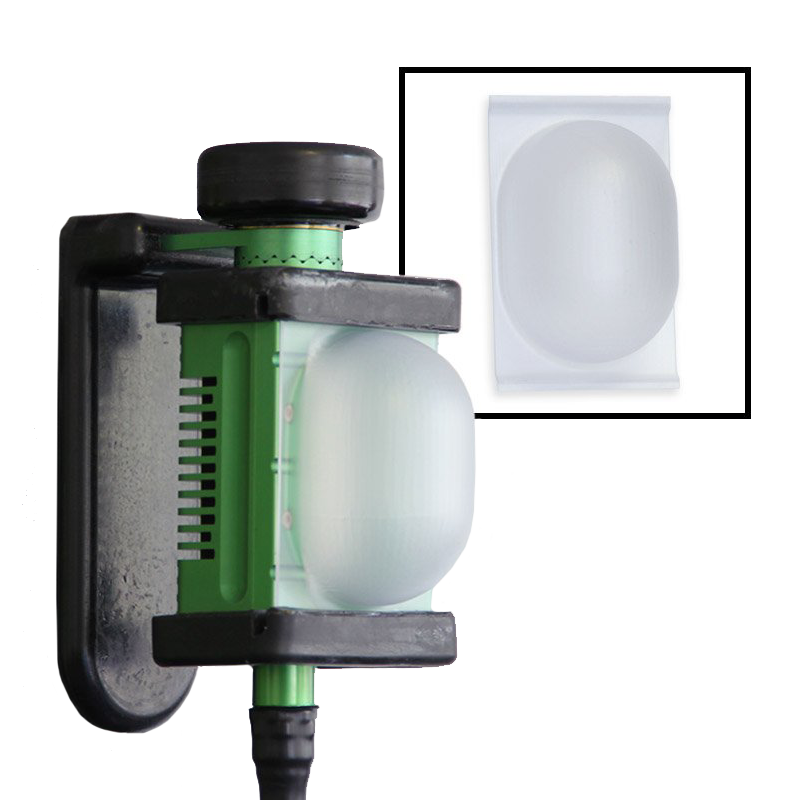

Dome Diffuser – pulls the light in and disperses it over a larger area
Body Wrap – to stop the aluminum body from touching anything

ADDITIONAL INFORMATION


Approvals:

Suitable for simultaneous use in:
Class I, Div 1 & 2, Groups C & D
Class II, Div 1 & 2; Groups E, F, & G
CSA Zones 1 & 2; Zones 20, 21, & 22

Conforms to: UL Stds 153, 8750, 844;
Certified to: CSA Std C22.2#s 12, 25, 30, 137, 250.13
Suitable for Wet Location NEMA Type 6P
Certified: Portable Luminary, Portable Luminaire

Temperature Rating: T-code: T5, (-25° to +40°C)
LED Color: ~6000K, CRI >70
Light Head Power: 21VDC, 800mA, LVLE
Illuminous: 26,000 lux at 1 ft
Light Output: 2,500 lumens
Reflective Optic Beam Angle: 60°
Weight: 3.5 lbs (light head only), 4.2- 5.3 lbs (light head with handle)
Dimensions: 6″L x 2.9″W x 2.3″H
