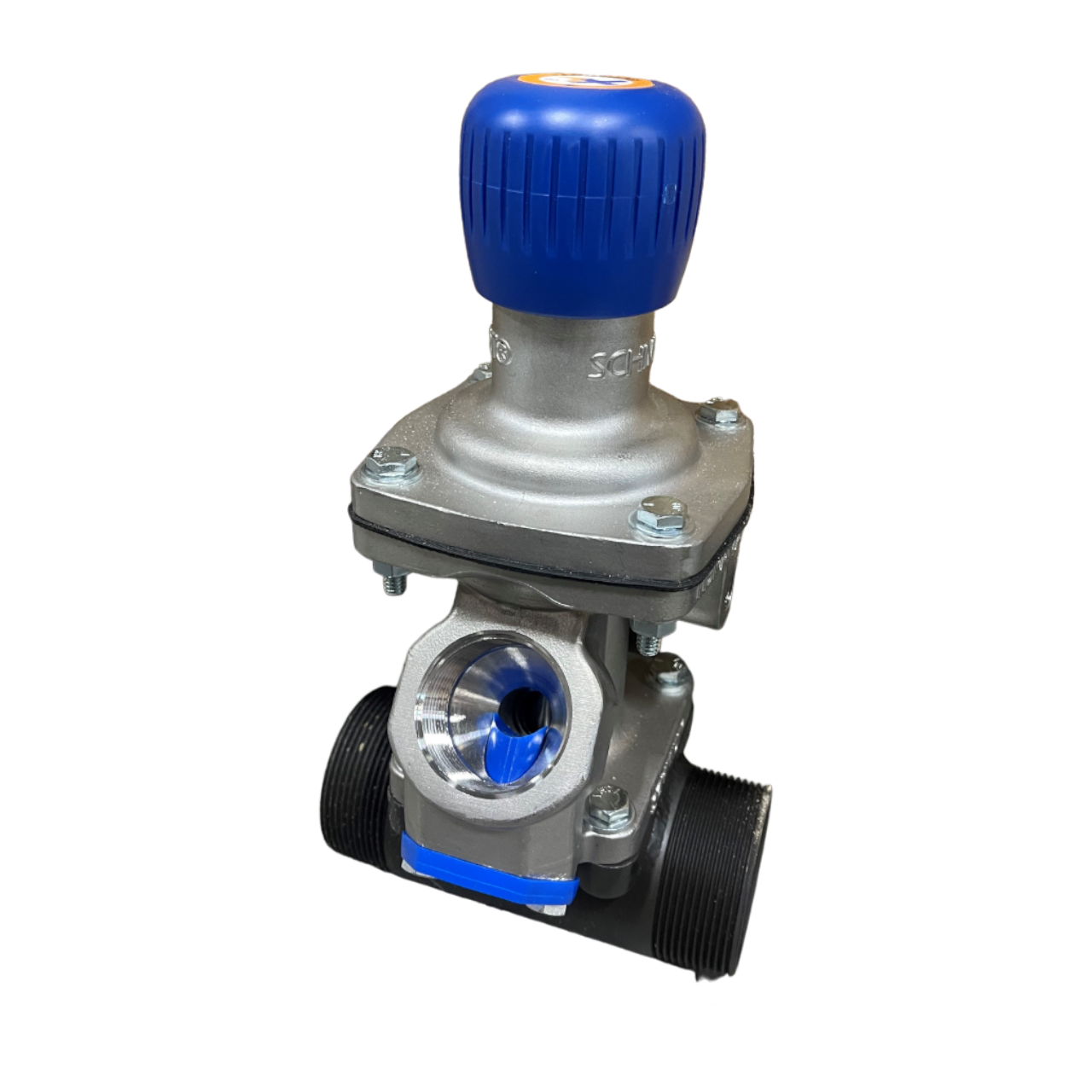

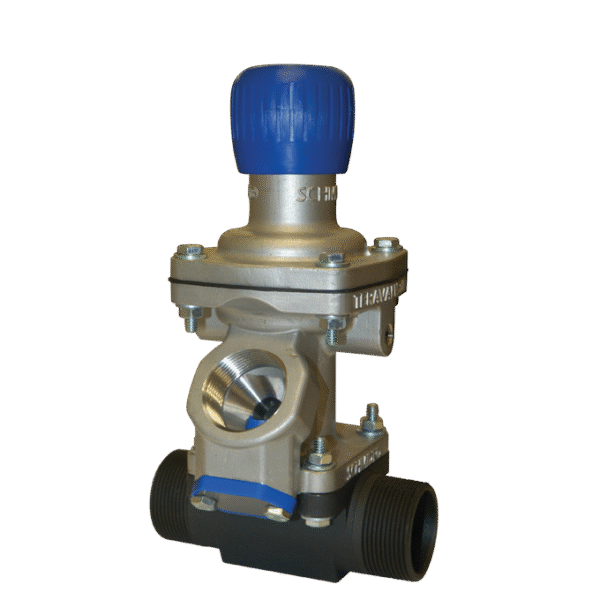

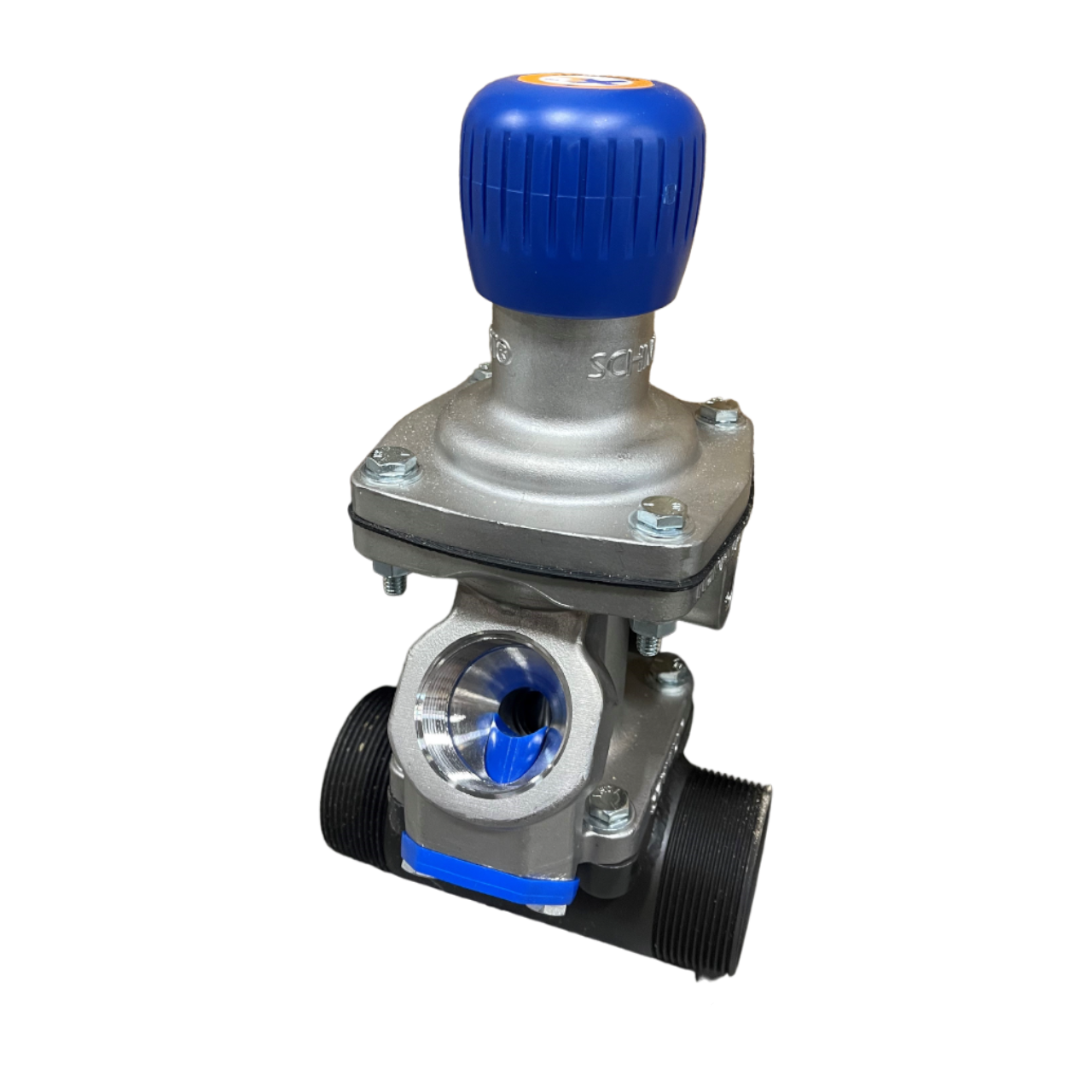

Schmidt TeraValve XL Metering Valve

SKU: P-GV2130

  • Abrasive metering valve with accurate adjustment capabilities
  • Diaphragm-activated piston requires minimum of 75 psi control pressure to use
  • Pressure-hold style valve, where the valve will seal off the abrasive and air when the deadman is released.
  • Can be retrofitted to a blast pot with only 6″ clearance


The new TeraValve abrasive metering valve is revolutionary in its ability to provide high performance, pressure hold blasting. The TeraValve operates on a diaphragm. This simplifies overall operation and maintenance. The new Schmidt extended life (XL) technology provides durability and long life, even when used with harsh abrasives. The compact size fits easily onto low clearance blast pots or blast cabinets without modification. This makes it easy to convert automatic blowdown pots to a more efficient and productive pressure hold system.

Additional information

Weight N/A
Dimensions N/A
Nipple Size

1" x 1-1/4", 3/4" x 1-1/4", 1-1/4'' x 1-1/4'', 1-1/2'' x 1-1/2''

Document Downloads

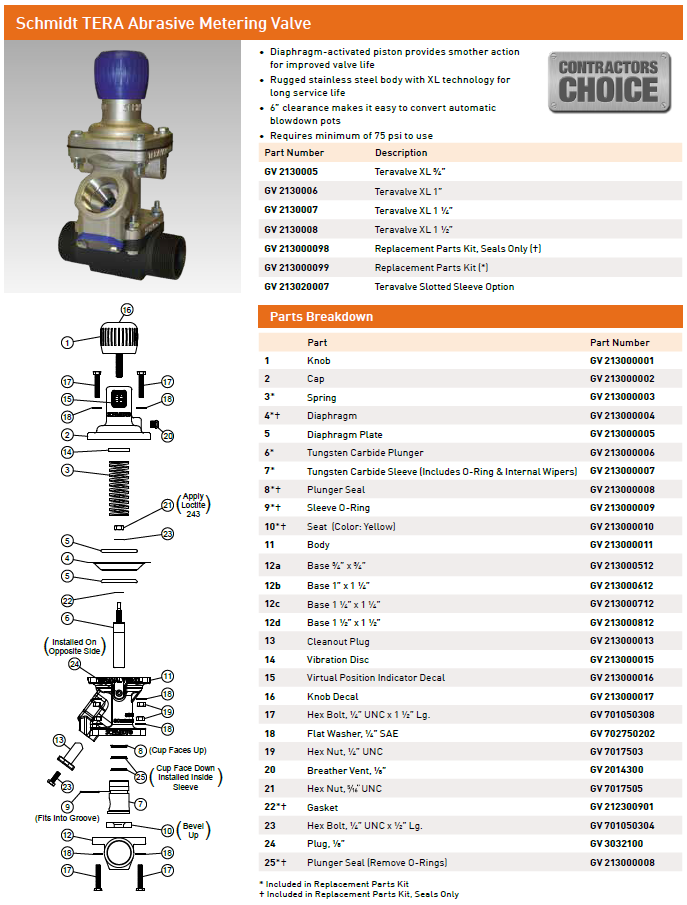

Tara Valve Data Sheet

Parts Breakdown

Part Number
