Axxiom/Schmidt S-Series Pop-up Valves / Shafts and Seating Rings

SKU: P-BAP21

BlastOne has the parts needed to service and maintain all Axxiom / Schmidt blast pots.  The following are the common Pop Up components – contact us if you do not see the version you need.

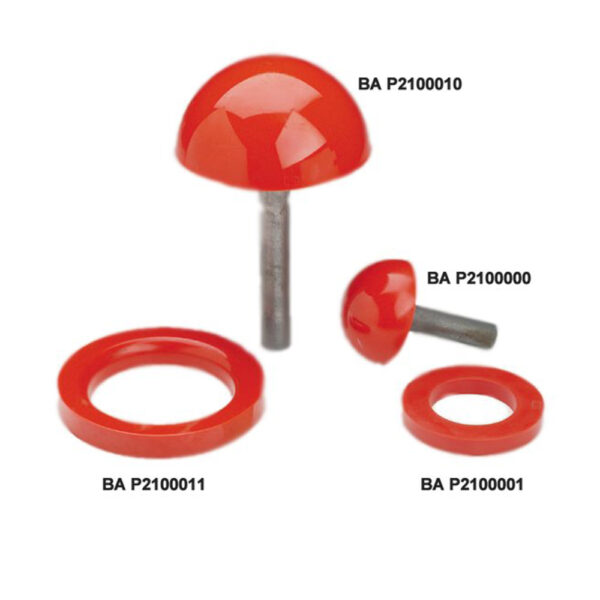

Pop-up Valve and Shaft (aka Pop-up Head)

  • Hemispherical pop-up valve seals off pot when pressurized
  • Shaft is embedded in the urethane head
  • Suits Schmidt’s contractor series blast pots
  • Available in the following:
    • MPN 2100-000, Small, for 1.5 CF pots

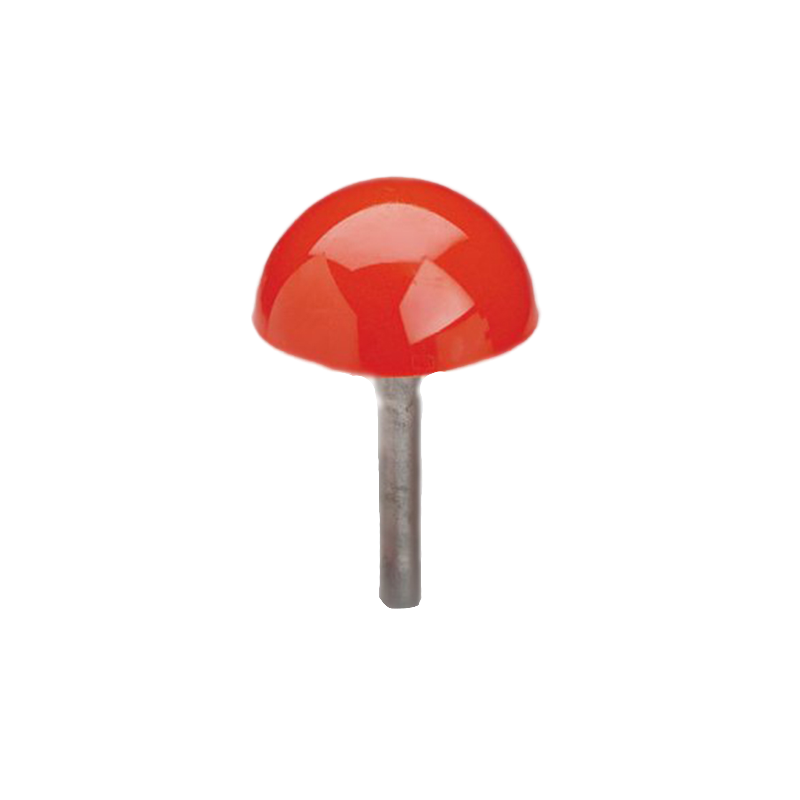

    • MPN 2100-010, Standard, for 3.5, 6.5, 10, & 20CF pots
    • MPN 2100-010-04, Alternate for Standard sizes, designed for high flow

Seating Ring

  • Available in the following:

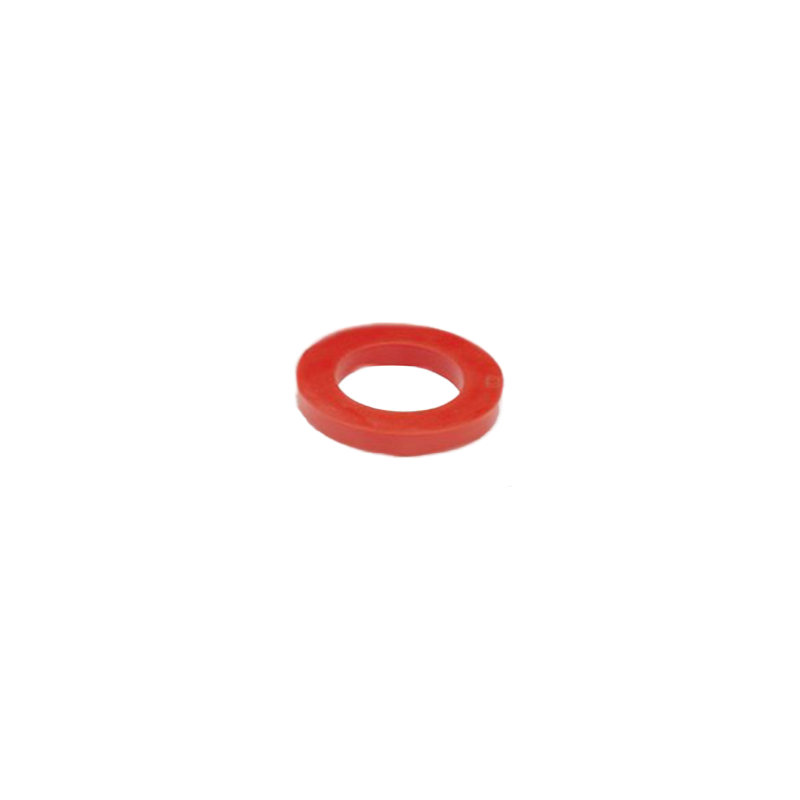

    • MPN 2100-001, Small, for 1.5 CF pots

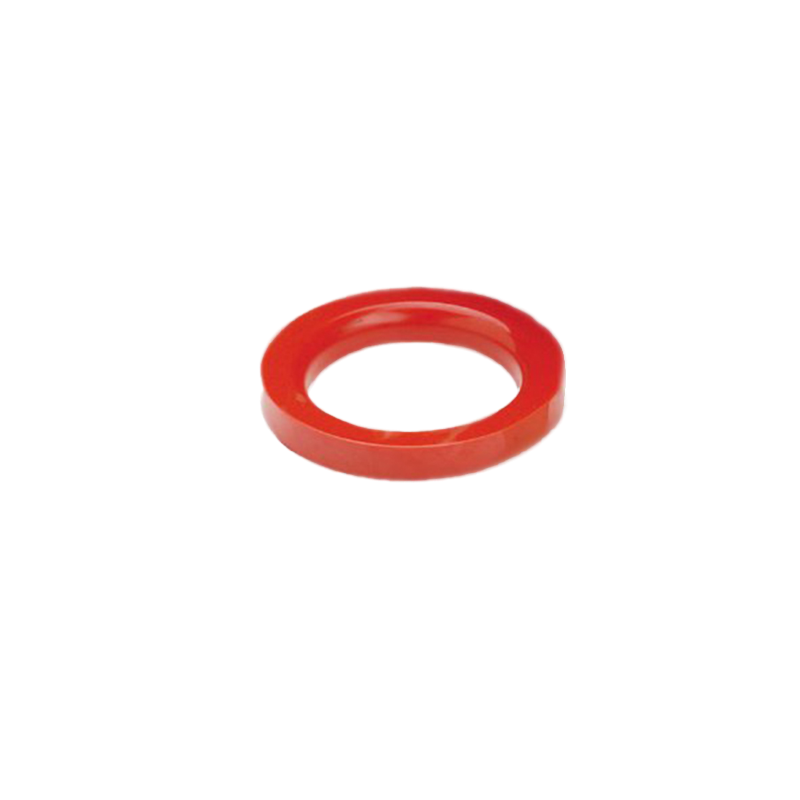

    • MPN 2100-011, Standard, for 3.5, 6.5, 10 & 20 CF pots

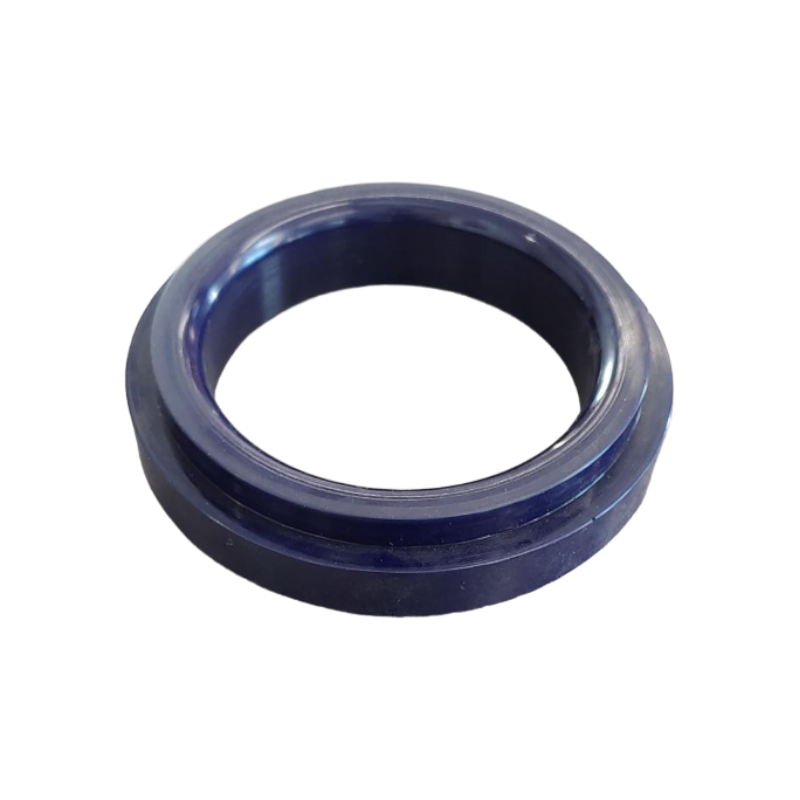

    • MPN 2100-011-04, “Sure-Seal” Alternate for standard sizes, good when applications include blasting at low pressures.  Use with 2100-010-04 pop-up head.





Axxiom/Schmidt S-Series Pop-up Valves / Shafts and Seating Rings

SKU: P-BAP21

Web price i
Please sign in to your account to see your pricing, which may be different from the price displayed.

$45.66 - $120.51

Ship to 20149

$45.66$120.51

Description

Pop-up valves lift to seal against the pop-up ring when the pot is pressurized, enabling the pot to hold pressure.  If the valve or ring are worn or damaged, there will be a pressure loss, creating differential pressure issues.  See our How-To video for help in replacing these parts.
