Graco Air Spray Gun Repair Kits

IMAGES & VIDEO

Graco Air Spray Gun Repair Kits

SKU: P-GRASREPKITS

Graco Stellair™, Stellair ACE, and AirPro Repair Kits include the most common replacement parts needed to keep your airspray guns operating at peak performance. With multiple repair kit options available, users can quickly replace worn components to ensure consistent spray quality and extended equipment life. All kits contain genuine Graco OEM parts for precise fit and durability.

Available Kits:

  • Gun Repair Kit – General maintenance for all Graco Air Spray guns.
  • Air Cap Seal Kit – Replaces worn air cap seals for proper atomization. For all air spray guns.
  • Air Section & Air Valve Repair Kits – Repairs air section components for optimal airflow in all air spray guns.
  • Trigger Repair Kit – Restores trigger function and responsiveness.  For all Graco air spray guns.
  • Retaining Ring Repair Kit – Secures components for safe, reliable operation. For all Graco air spray guns.
  • Fluid Inlet Fitting Kit – Ensures a leak-free fluid connection. For Stellair™.  For all Graco air spray guns.
  • Fluid Inlet Fitting with Flats Kit – Expanded kit with flats. For AirPro and Stellair™

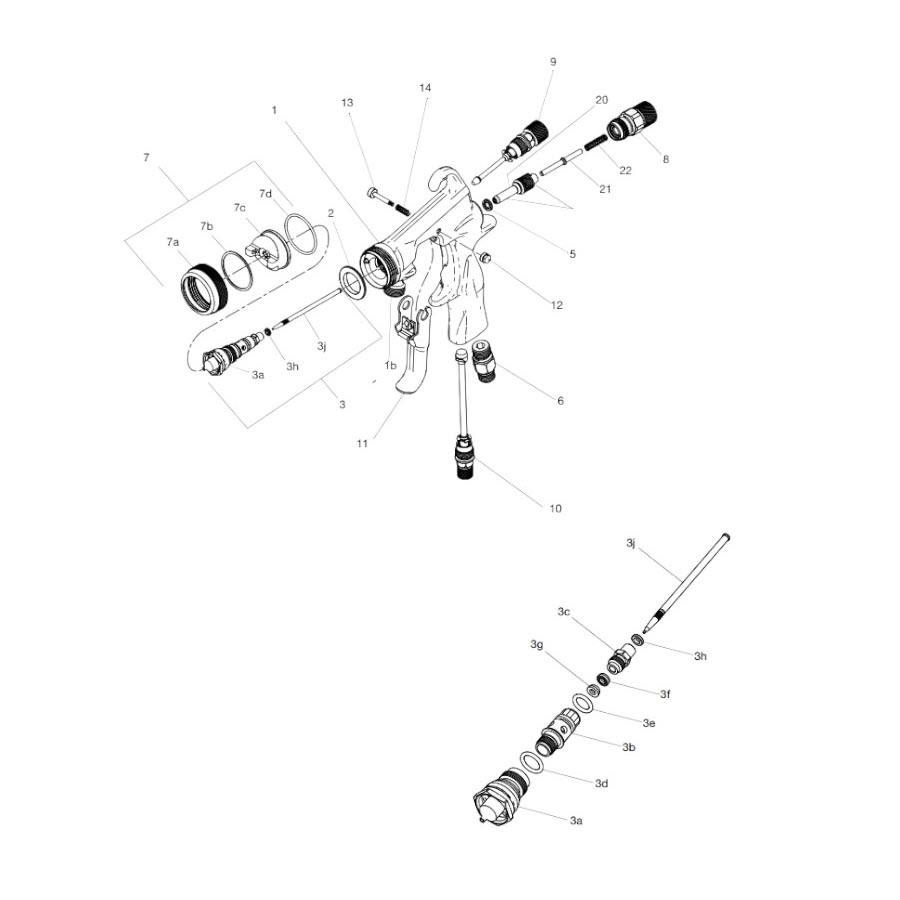

  • Gun Assembly Kit – Comprehensive kit for rebuilding the spray gun assembly. For Stellair™ only.
  • Fluid Cartridge Repair Kits – If rebuilding the fluid cartridge is desired, these components help restore fluid flow and spray performance.  For Stellair™ and Stellair ACE only.
  • Needle Packing Repair Kit – Repacks fluid needles for AirPro series guns only.
  • Nozzle O-ring Kit – Convenient 5-pack of this common wear item, for AirPro series guns only.
  • Gun Body Kit – Gaskets and fittings used when rebuilding the body of the AirPro gun (only).
  • Fan Adjustment Knob & Valve Repair Kits.  For Stellair ACE.
Read More
Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Graco Air Spray Gun Repair Kits

SKU: P-GRASREPKITS

Web price i
Please sign in to your account to see your pricing, which may be different from the price displayed.

$12.50 - $400.00

Ship to

$12.50 – $400.00
add to favorites

Graco Air Spray Gun Repair Kits

Sku: P-GRASREPKITS

Extend the life and performance of your Graco Stellair™ and Stellair ACE Spray Guns with genuine Graco repair kits. These kits contain essential replacement parts for air, fluid, and trigger components, helping operators maintain consistent spray quality and reduce downtime. Why Choose Graco Stellair Repair Kits?
  • Keep your spray gun in peak condition – Replace worn parts before performance declines.
  • Genuine Graco OEM parts – Ensures precise fit and reliability.
  • Quick and easy repairs – Minimize downtime with simple part replacements.
  • Cost-effective maintenance – Avoid costly repairs by replacing parts proactively.

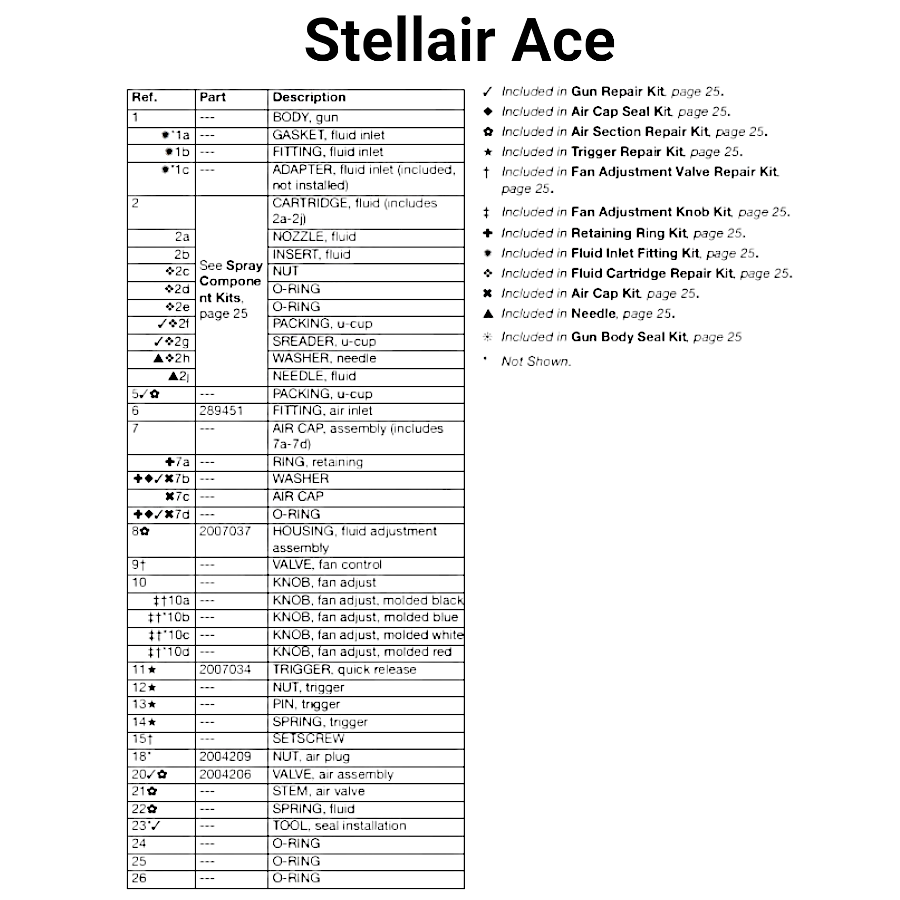

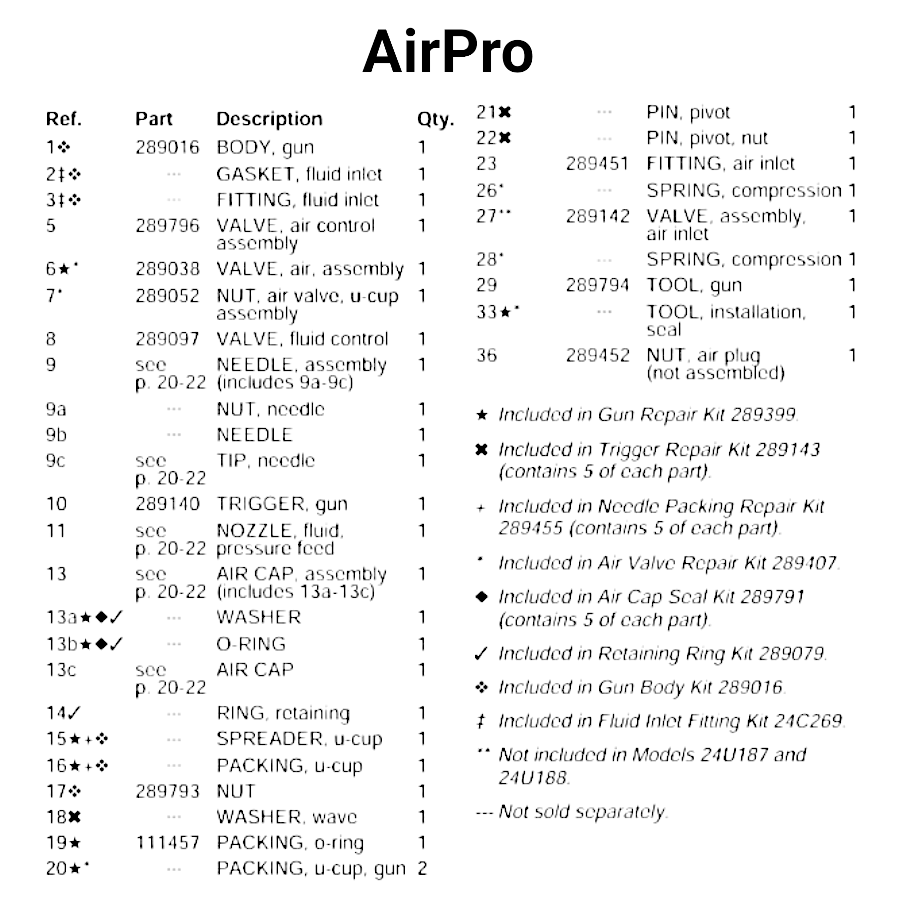

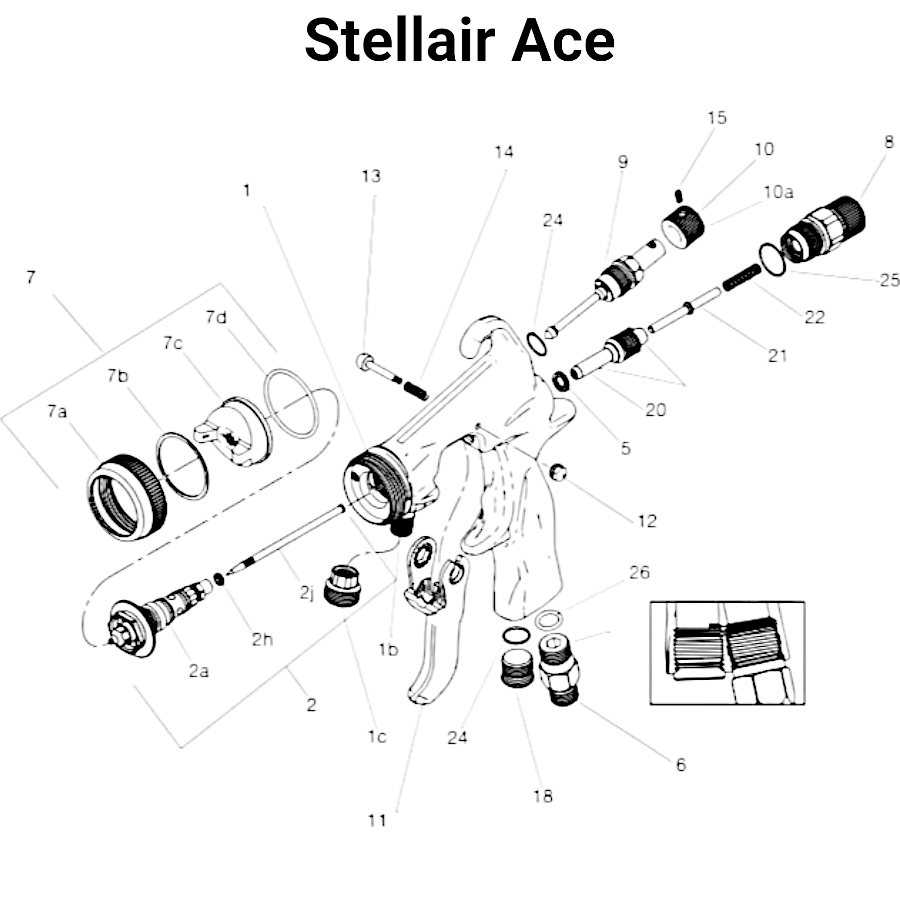

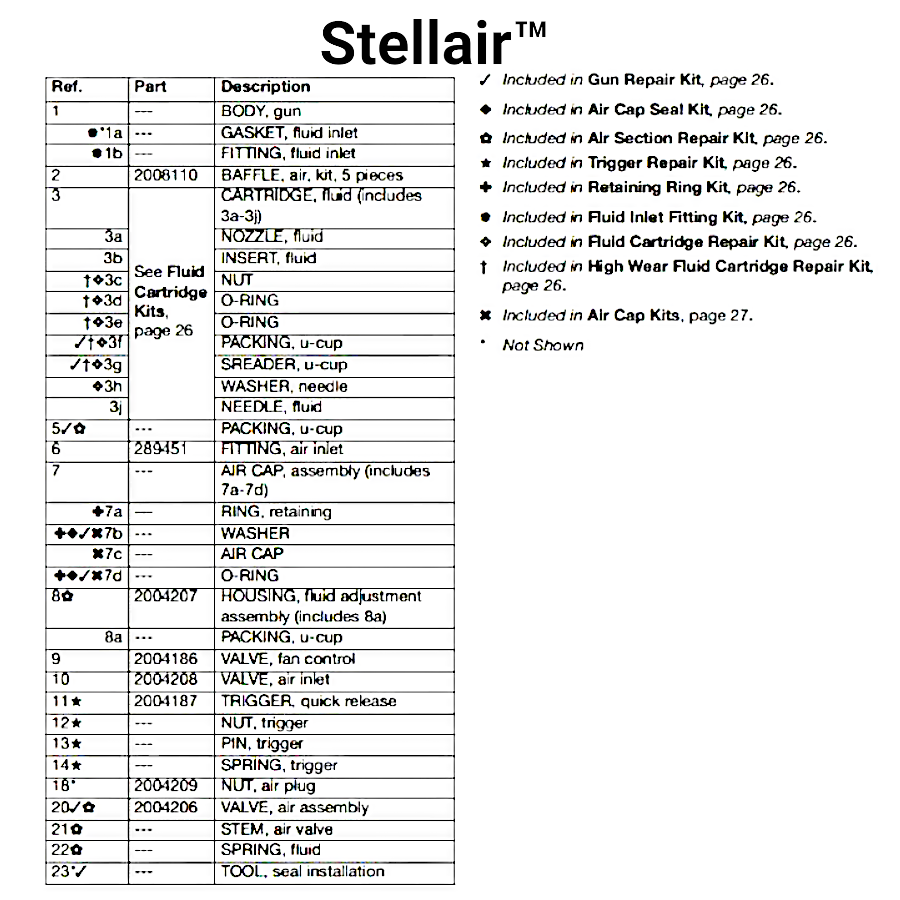

Available Repair Kits and their Applications
  • General Maintenance & Repair
    • Gun Repair Kit
      • MPN: 2006038 – For Stellair™ and Stellair ACE

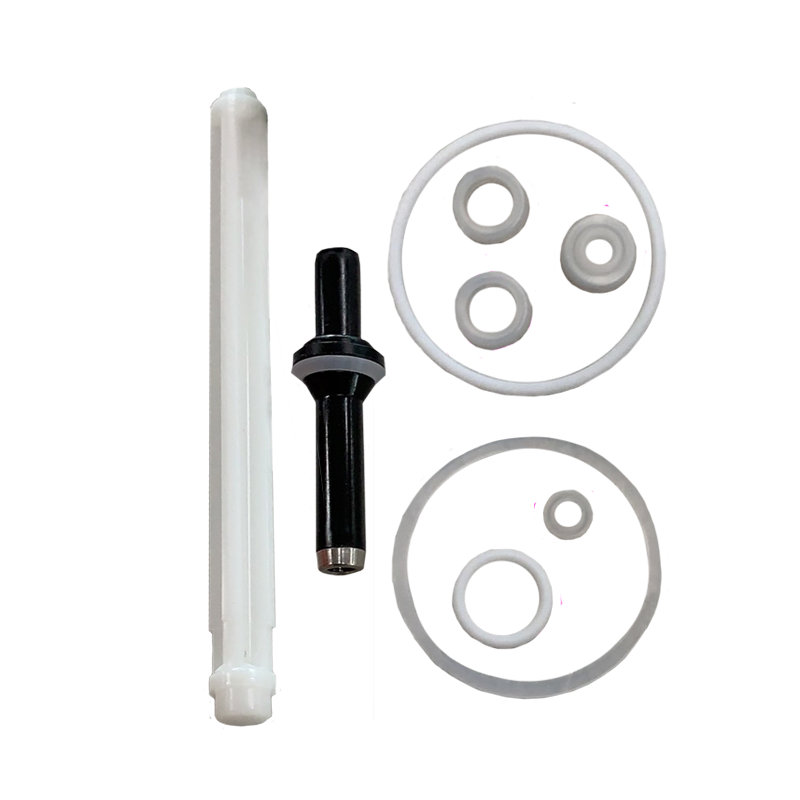

    • Gun Repair Kit
      • MPN: 289399 - For AirPro
  • Air System Repairs
    • Air Cap Seal Kit
      • MPN: 289791 – For AirPro, Stellair™, and Stellair ACE.
    • Air Section Repair Kit –
      • MPN: 2006029 for Stellair™
      • MPN: 2007036 for Stellair ACE
    • Air Valve Repair Kit -
      • MPN: 289407 for AirPro
    • Fan Adjustment Valve Repair Kit -
      • MPN: 2007038 for Stellair ACE
    • Fan Adjustment Knob Kit
      • MPN: 2007039 for Stellair ACE
  • Trigger & Retaining
    • Trigger Repair Kit –
      • MPN: 2004188 for Stellair™
      • MPN: 2007036 for Stellair ACE
      • MPN: 289149 for AirPro
    • Retaining Ring Repair Kit –
      • MPN: 2004189 for Stellair™
      • MPN: 2007033 for Stellair ACE
      • MPN: 289079 for AirPro
  • Fluid System Repairs
    • Fluid Inlet Fitting Kit
      • MPN: 24C269 for AirPro and Stellair™
      • MPN: 2007040 for Stellair ACE
    • Fluid Inlet Fitting with Flats Kit
      • MPN: 26A102 for Stellair™ and AirPro
    • Fluid Cartridge Repair Kits
      • MPN: 2006033 –  for both Stellair™ and Stellair ACE.  All fluid cartridges except High Wear.
    • High Wear Fluid Cartridge Repair Kit
      • MPN: 2007155 – for Stellair™ High-Solids fluid cartridges.
    • Needle Packing Repair Kit
      • MPN: 289455 for AirPro
    • Nozzle O-Ring Kit, 5-pack
      • MPN: 24C310 for AirPro
  • Complete Gun Body Kits (does not include air cap or fluid nozzle/needle or fluid cartridge)

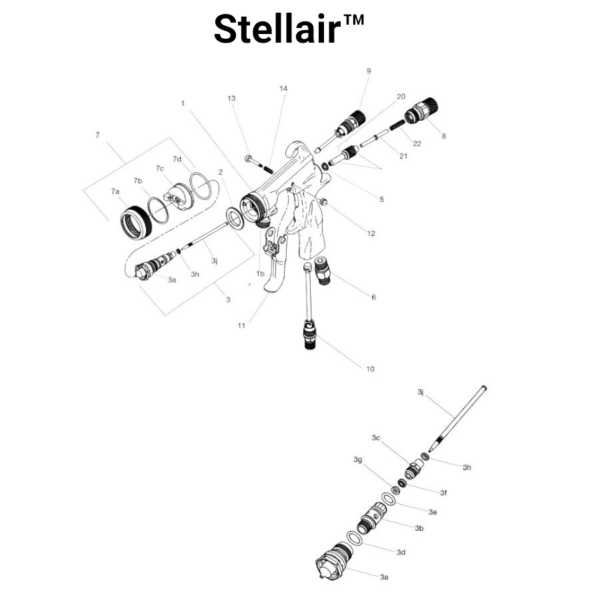

    • Gun Assembly Kit
      • MPN: 2006040 – For Stellair™ only

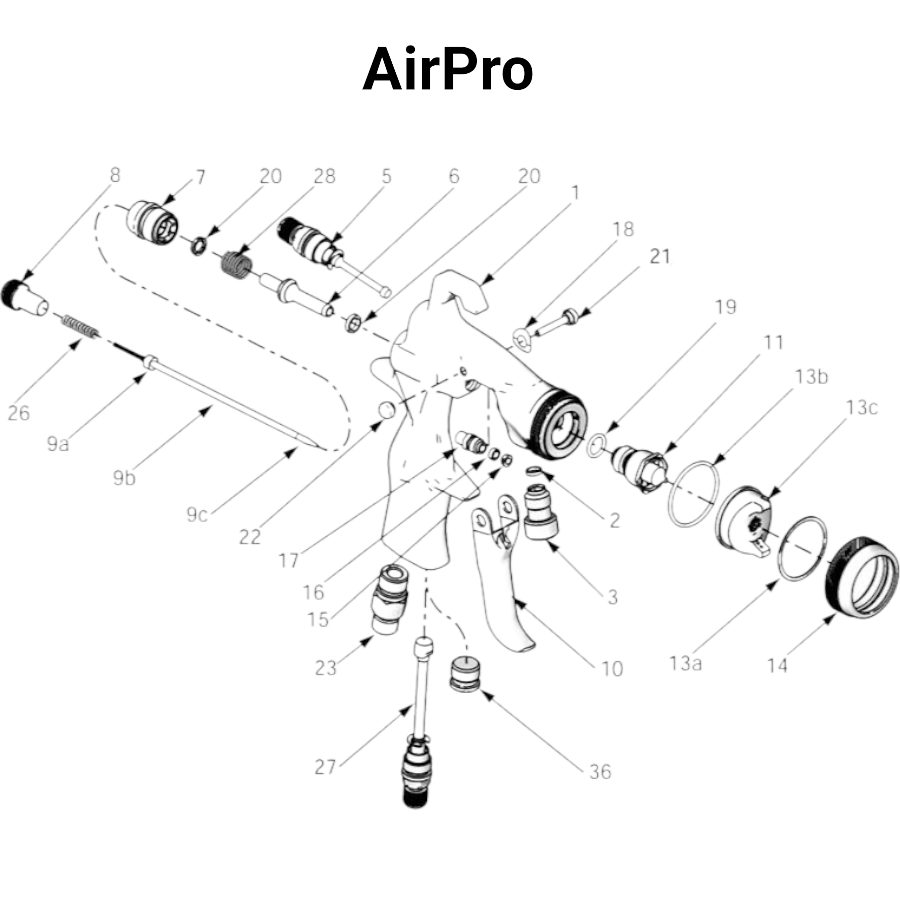

    • Gun Body Kit
      • MPN: 289016 - For AirPro only
Applications The Graco Stellair Repair Kits are ideal for professionals in:
  • Automotive Painting – Keep spray guns functioning for flawless basecoats and clearcoats.
  • Industrial Coatings – Maintain consistent material application and fluid flow control.
  • Wood Finishing – Prevent fluid leaks and airflow issues for smooth finishes.
  • Protective Coatings – Ensure precise coating application with reliable equipment.
