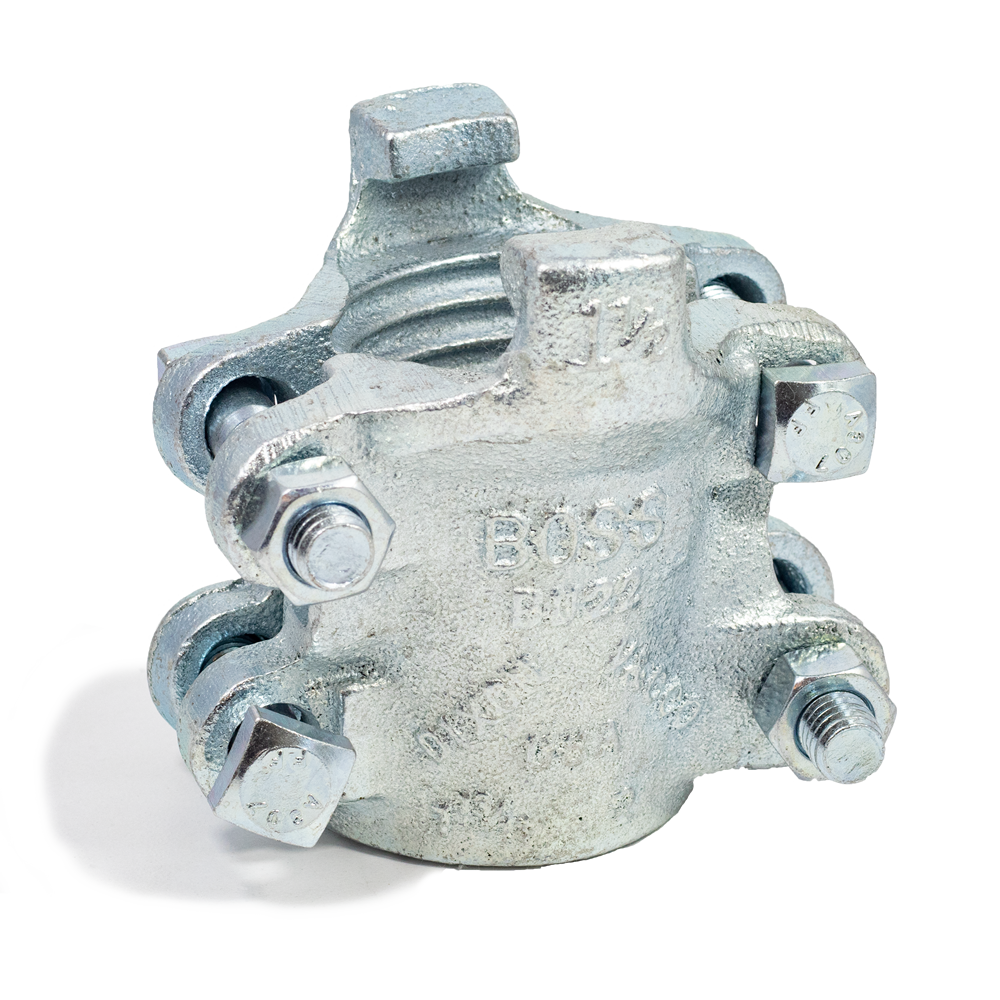

Hose Claw Bolt Clamp
- Suits 1-1/2″ – 3″ BlastOne MegaFlow Bull Hose and Spud or 4-Claw fittings
- Holds coupling in the hose by clamping externally
- Genuine part manufactured by Dixon
- Sold individually
Hose Claw Bolt ClampSKU: P-FMBBU
Dixon Ground Joint plated steel couplings for high pressure, high flow MegaFlow Bull air hose. 4-bolt, 2-piece clamp with 2 gripping fingers. Always use whipchecks with air hose.
Claw clamp bolts must be tightened to the manufacturer’s torque specifications. Dixon clamps are designed to bend when tightened and are for single use only. Bolt torque must be checked and retightened regularly, due to ‘cold flow/rubber creep’ phenomenon found in all rubber hoses.
Torque specifications for Dixon Claw Bolt clamps are as follows:
- FMBBU22 1-1/2″ Bolt clamp – 40 ft. lbs.

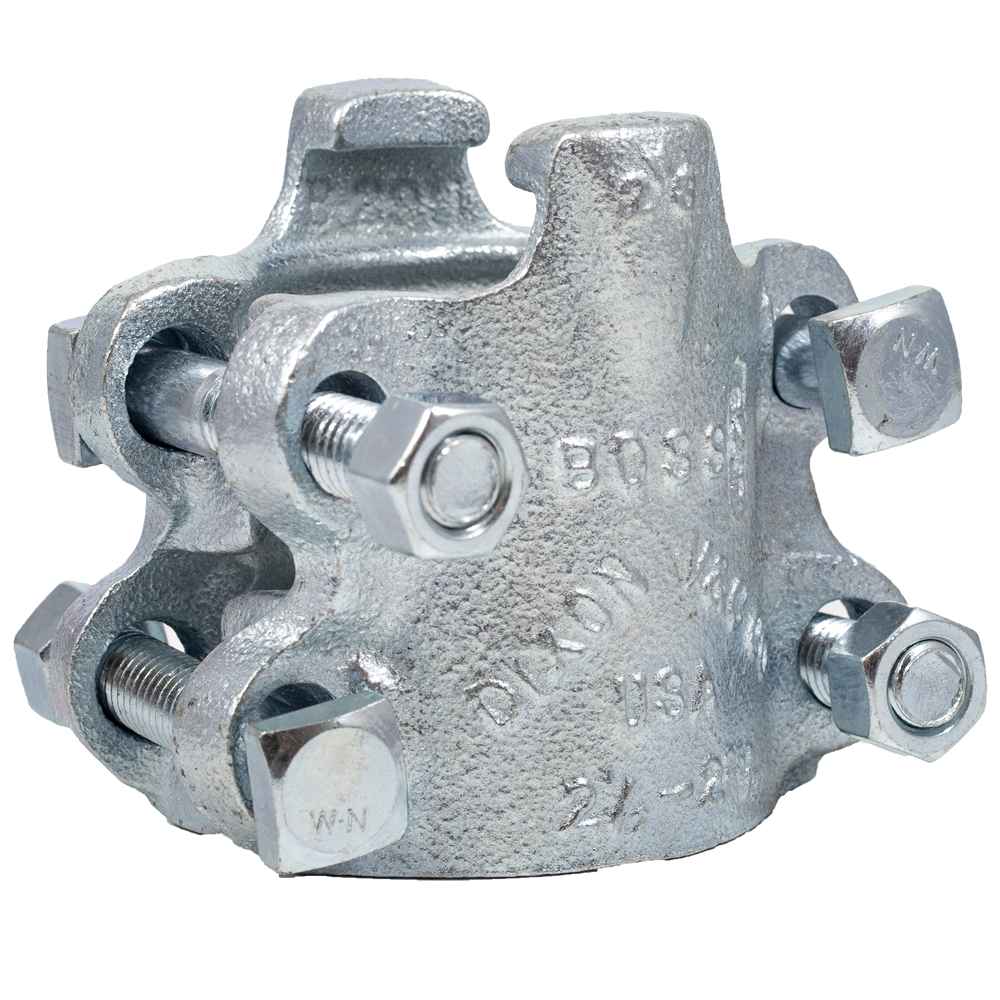

- FMBBU29 2″ Bolt clamp – 60 ft. lbs.
- FMBBU35 3″ Bolt clamp – 150 ft. lbs.
