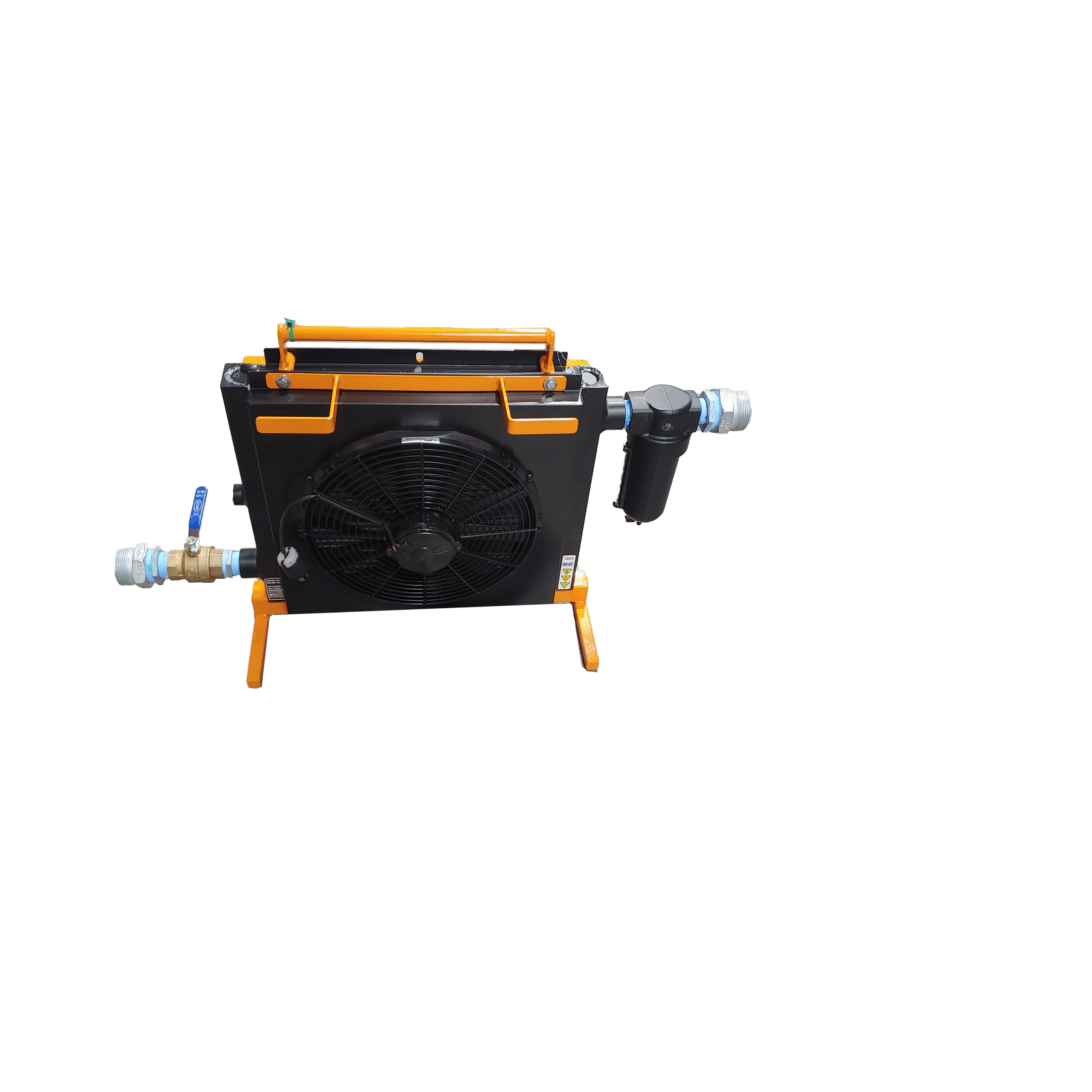

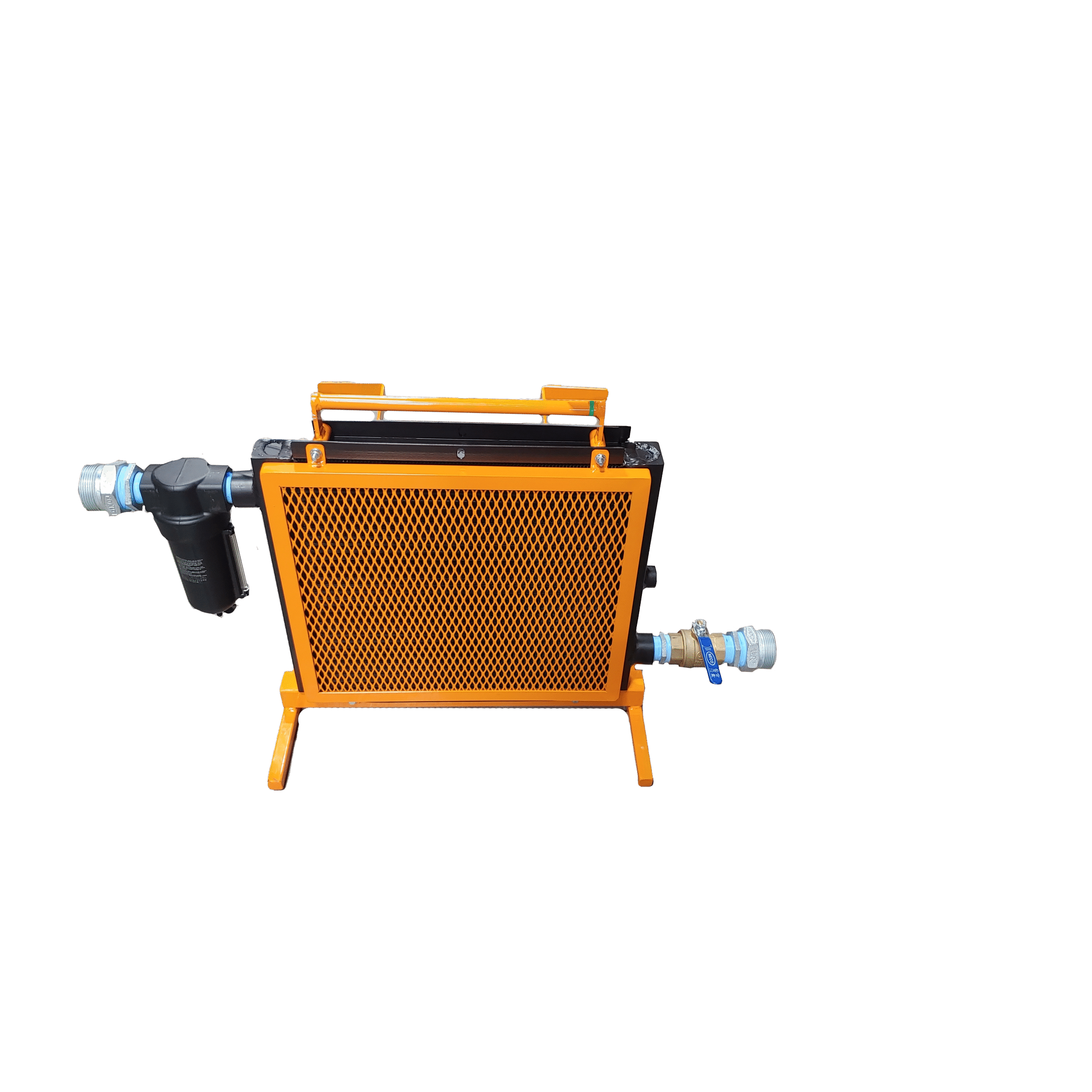

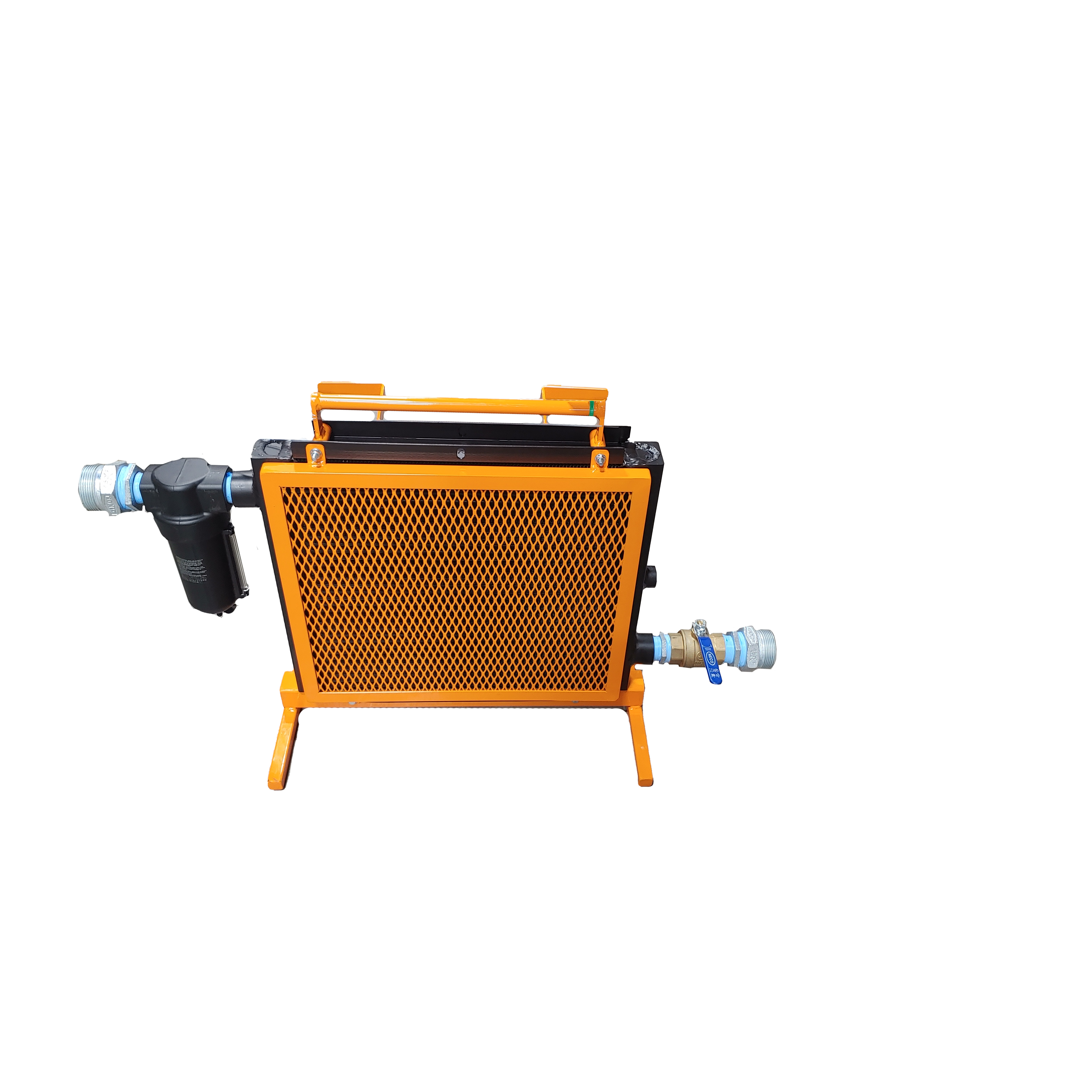

Economy Aftercooler Assembly

Sku: ACS400AC12V

The AKG DCS-30-12 Oil Cooler combines a high-performance 12 VDC motor-driven fan with a precision-engineered aluminum cooling core to maintain stable hydraulic fluid temperatures. This compact unit is ideal for mobile and stationary hydraulic systems that require consistent cooling without external pressure bypass.

Built for reliability, the cooler features an integrated fan shroud that enhances airflow across the aluminum core, increasing heat dissipation and extending component life. With a working pressure of up to 250 PSI and a temperature rating of 250°F, it’s designed to handle tough jobsite conditions in construction, agricultural, and industrial applications.

The DCS-30-12 unit’s low-maintenance design and tool-friendly installation make it a preferred choice for technicians looking for long-lasting cooling performance. Its lightweight build (53 lbs.) and compact frame make it suitable for tight installations without compromising cooling efficiency.

• 12 VDC motor, 19-amp draw
• Maximum working pressure: 250 PSI
• Maximum working temperature: 250°F
• Dimensions: 23.62 in. W x 7.2 in. D x 22.13 in. H
• Weight: 53 lbs.
• Aluminum cooler core with plastic fan blades and guards
• Painted steel motor housing for durability
• Shroud included for enhanced cooling performance
• No pressure bypass or temperature sensor included
