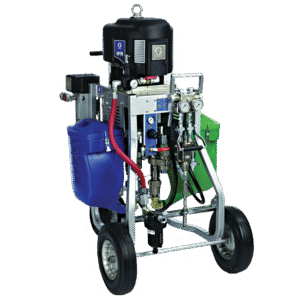

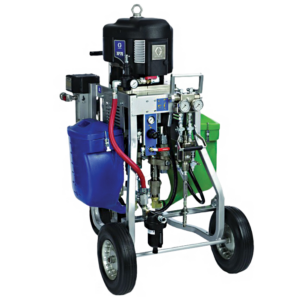

Online form Graco XM PFP Plural Component Sprayer
Sku: GM262869
Graco XM PFP Plural Component Sprayer (GM262869): High-Performance Spraying for Passive Fire Protection Coatings Applying Passive Fire Protection (PFP) coatings is one of the most challenging tasks in industrial coating applications. The Graco XM PFP Plural Component Sprayer is engineered to precisely mix, heat, and spray highly viscous PFP materials, ensuring a consistent, high-quality application while reducing material waste. Advanced System Components for Superior Performance This complete spraying system includes:- Two Check-Mate® 20-gallon (76L) heated hoppers with agitators and level sensors for consistent material preparation.
- 50 ft (15m) dual heated hose set to maintain proper material temperature during application.
- Remote mix manifold with 17 ft (5m) of static mixing line for precise material blending before spraying.
- 30:1 solvent flush pump for fast and effective system cleaning, reducing downtime.
- XHF Spray Gun with a 429 tip, designed to handle the high-viscosity nature of PFP coatings.
- Handles Difficult-to-Apply Coatings – Designed specifically for the challenges of PFP applications, ensuring smooth and even coverage.
- Consistent Temperature & Ratio Control – Maintains precise mixing and heating for optimal material performance.
- Reduces Material Waste – The system ensures accurate blending, reducing errors and minimizing costly rework.
- User-Friendly Operation – The intuitive control panel allows for quick learning and simple operation.
- Industrial fireproofing applications requiring thick, high-viscosity coatings.
- Oil & gas infrastructure where passive fire protection is critical.
- Structural steel coatings for fire resistance in commercial and industrial buildings.
- Heavy-duty protective coatings for high-temperature environments.
- Product Type: Plural Component Sprayer
- Base System: Graco XM Sprayer
- Hoppers: (2) Check-Mate® 20-gallon (76L) heated hoppers with agitators & sensors
- Hose Set: 50 ft (15m) dual heated hoses
- Mixing: Remote mix manifold with 17 ft (5m) static mixing line
- Flush System: 30:1 solvent flush pump
- Spray Gun: XHF Gun with 429 spray tip
- Control System: Intuitive and easy-to-use control panel
