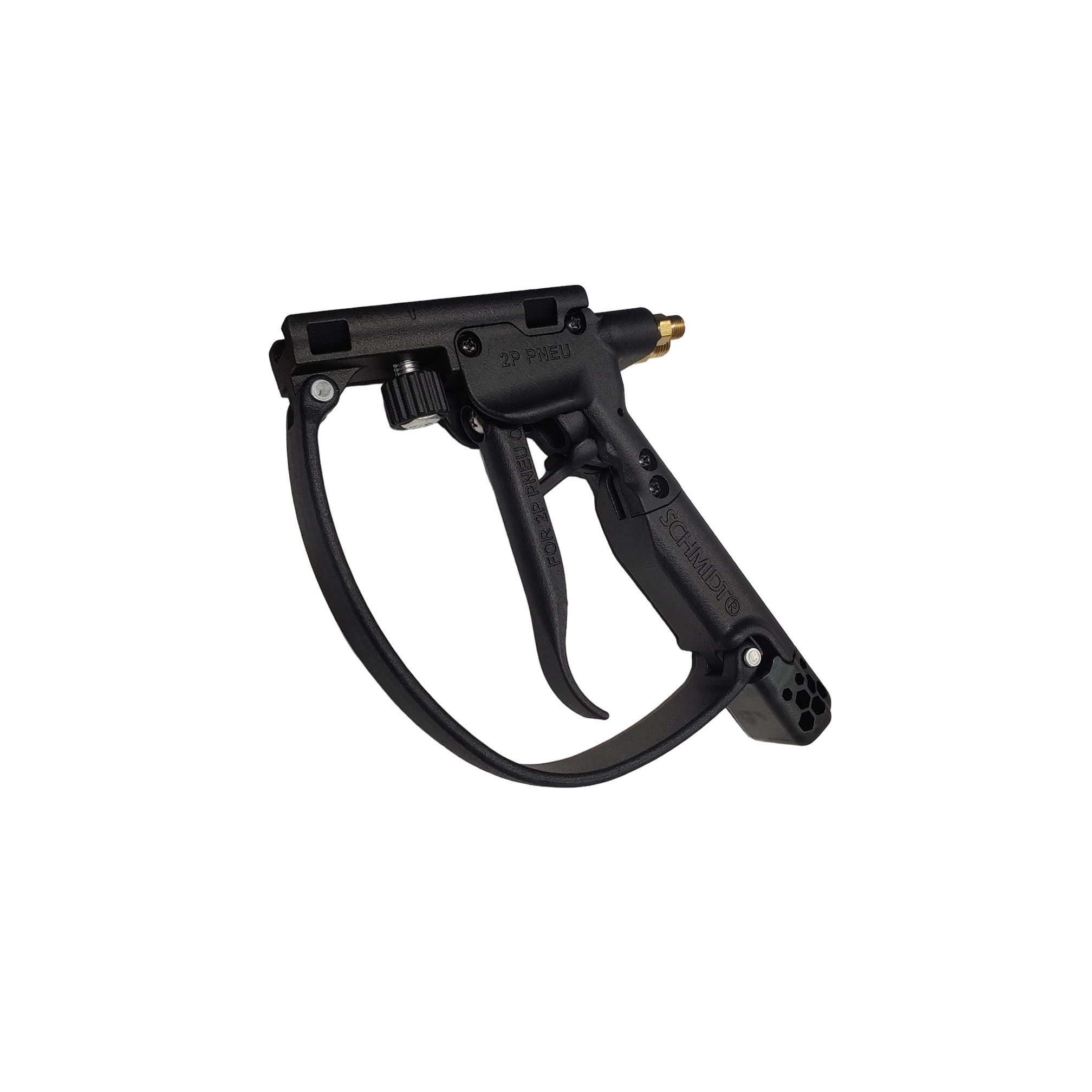

Schmidt G3 Trigger-style Deadman control

Sku: P-DMG3

The Axxiom/Schmidt G3 Trigger Deadman Control Switch is an industry-trusted safety device designed to give operators reliable start/stop control with a more comfortable trigger-style grip. Built to maintain the same safety and dependability operators expect from Schmidt deadman controls, the G3 Trigger improves hand position and reduces fatigue during extended blasting.

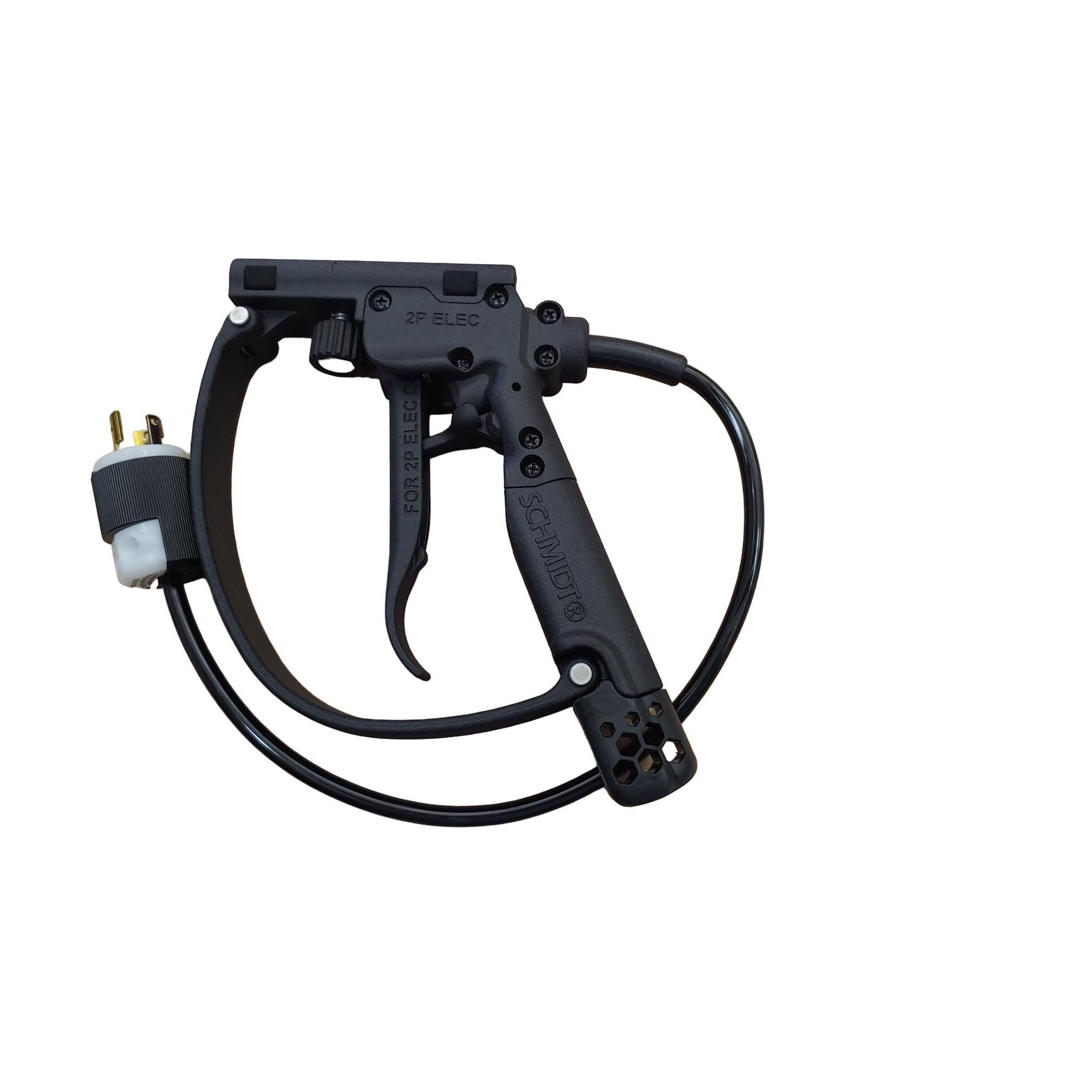

This deadman is offered in both pneumatic and electric power choices, with multiple standard configurations available for each option. Pneumatic versions provide quick response and fast shutoff, while electric versions are commonly recommended for longer hose runs, or in environments where pneumatic freeze-up is an issue. A modular design allows the trigger deadman to be switched between pneumatic and electric configurations if your setup changes.

• Configurations:
  • Single function: Blast machine on/off deadman control
  • Dual function:  On/off control plus Abrasive Cut-Off (ACO), allows blast hose to easily be switched to blow-off mode on compatible blast machines.
  • Swivel-strap configuration:  All G3 deadman variations are offered as cost-saving bundles which include the convenient BAABS G3 swivel assembly
• Style: Ergonomic trigger grip for a more natural hand position while blasting
• Safety design: Normally closed valve design helps prevent unintended startup
• Operator-friendly: Ambidextrous safety flap for left- or right-handed use
• Connection: Wide port spacing supports easier twin-line hookup
• Application guidance: Electric controls are recommended for hose lengths over 100' or in applications where deadman freeze-up may be a concern
• Electrical durability: Military-spec, high-cycle rugged electric switch (electric models)
• Service life: Independently insulated conductors (electric models)
• Compatibility: Can be used with standard blast nozzle and BAABS unit
• Build origin: Made in Texas
