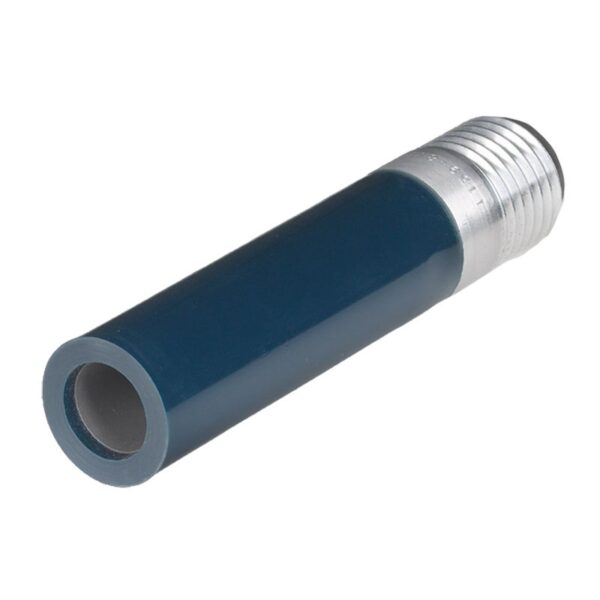

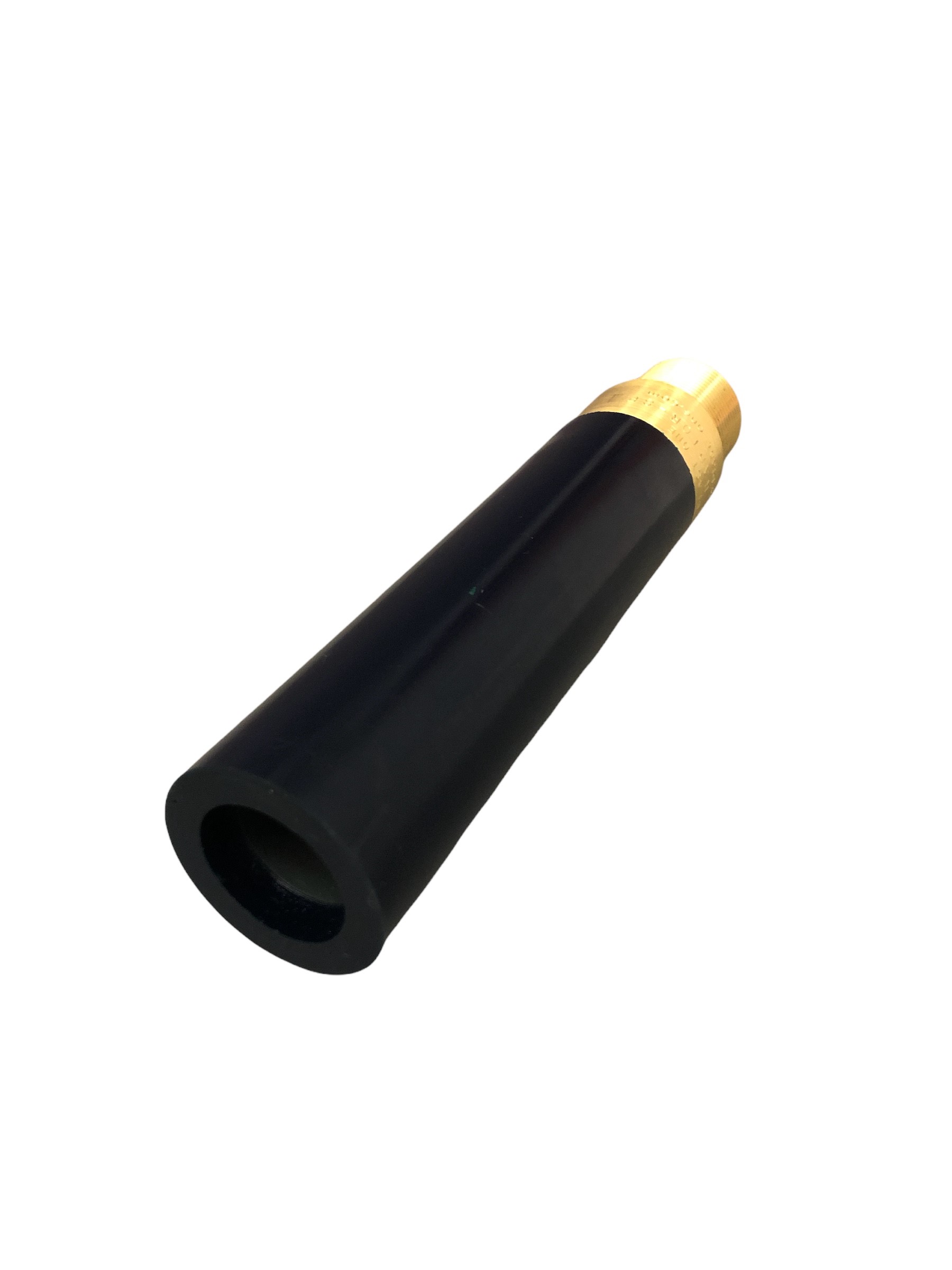

RAPTOR Large Pattern Silicon Nitride Blast Nozzle

SKU: P-BNRAPTOR

Designed with a 60% larger blast pattern, the Raptor (aka Bazooka) nozzle makes short work of your large commercial blast / sweep blast / brush blast projects. Additional details as follows: Click for Buying Guide

Thread types:
- Contractor (2″) aluminum threads
- Fine (1-¼”) brass threads
Liner Options:
- Silicon nitride, offers lighter weight and generally longer life than tungsten carbide.
- Tungsten carbide
Jacket:
- Urethane, for improved resistance to damage
Design:
- 1-¼” throat entry, extended venturi

Note: As the Bazooka nozzles have metal threads, they work best with nylon nozzle holders and HFG32P (NW-32) nozzle washers.

Categories: Blast Nozzles, High Performance Nozzles, Wet-Blast, Specialty & Other Nozzles Tags: bazooka, bazooka nozzle, Blast Nozzle, brush blast, commercial blast, raptor, silicon nitride, SN159-VP, sweep blast, T159-VP

RAPTOR Large Pattern Silicon Nitride Blast Nozzle

SKU: P-BNRAPTOR

Web price i

$429.00 - $508.00

Ship to

Nozzle Size
Thread Type
Composition
Quantity

$429.00 – $508.00

Product Description
Product Options

RAPTOR Large Pattern Silicon Nitride Blast Nozzle

Sku: P-BNRAPTOR

AVAILABLE FOR RENTAL OR PURCHASE The Raptor Blast Nozzles are extra large pattern high speed blast nozzles, maximum performance is achieved when blasting above 120 psi nozzle pressure.

Extra large pattern high speed blast nozzle, designed for brush blasting
2" UNC (50mm) Contractor thread or 1-¼" (32mm) Fine thread
Multiple Orifice sizes available
1-1/4" (32mm) wide throat entry, extra long venturi
SiALON II silicon nitride or Tungsten Carbide liners available
Urethane jacket
Maximum performance achieved when blasting above 120 psi nozzle pressure.
Not to be used with Steel abrasives

					Product Notes	Purchase Price
BNRAPTOR10FTC	#10 - 5/8"	Fine 1-1/4" (Industrial)	Tungsten Carbide	-	MPN: T159-10VPMPN: T159-10VP	$508.00
BNRAPTOR12FTC	#12 - 3/4"	Fine 1-1/4" (Industrial)	Tungsten Carbide	-	MPN: T159-12VPMPN: T159-12VP	$508.00
BNRAPTOR4C	#4 - 1/4"	Coarse 2" (Contractor)	Silicon Nitride	-	MPN: SN159-450VPMPN: SN159-450VP	$429.00
BNRAPTOR6C	#6 - 3/8"	Coarse 2" (Contractor)	Silicon Nitride	-	MPN: SN159-650VPMPN: SN159-650VP	$429.00
BNRAPTOR6F	#6 - 3/8"	Fine 1-1/4" (Industrial)	Silicon Nitride	-	MPN: SN159-6VPMPN: SN159-6VP	$429.00
BNRAPTOR7C	#7 - 7/16"	Coarse 2" (Contractor)	Silicon Nitride	-	MPN: SN159-750VPMPN: SN159-750VP	$429.00
BNRAPTOR7F	#7 - 7/16"	Fine 1-1/4" (Industrial)	Silicon Nitride	-	MPN: SN159-7VPMPN: SN159-7VP	$429.00
BNRAPTOR8C	#8 - 1/2"	Coarse 2" (Contractor)	Silicon Nitride	-	MPN: SN159-850VPMPN: SN159-850VP	$429.00
BNRAPTOR8F	#8 - 1/2"	Fine 1-1/4" (Industrial)	Silicon Nitride	-	MPN: SN159-8VPMPN: SN159-8VP	$429.00
