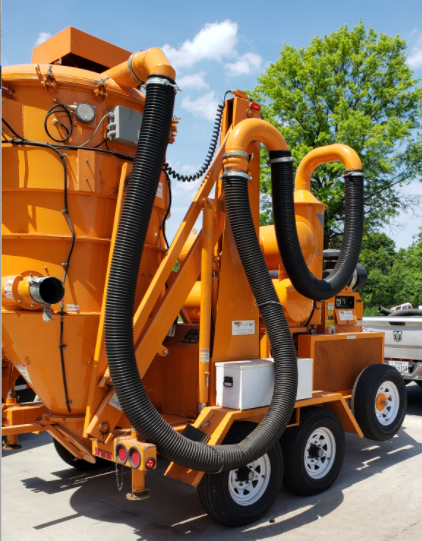

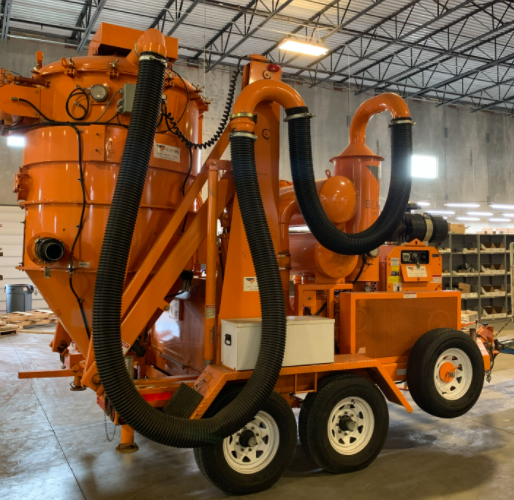

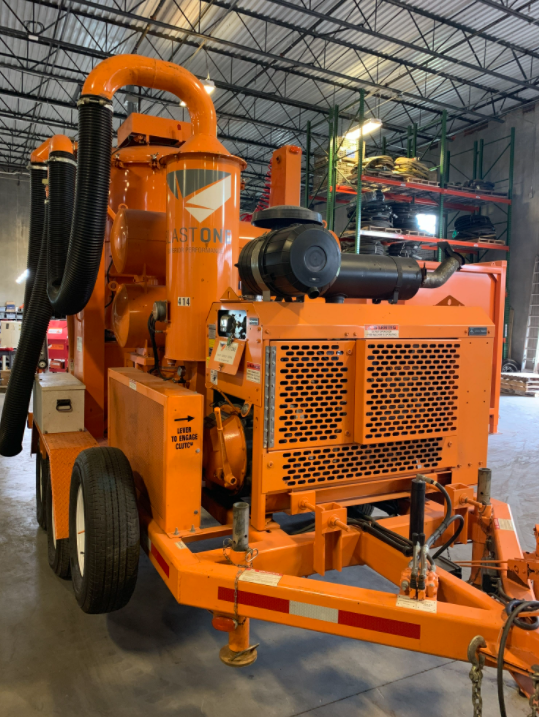

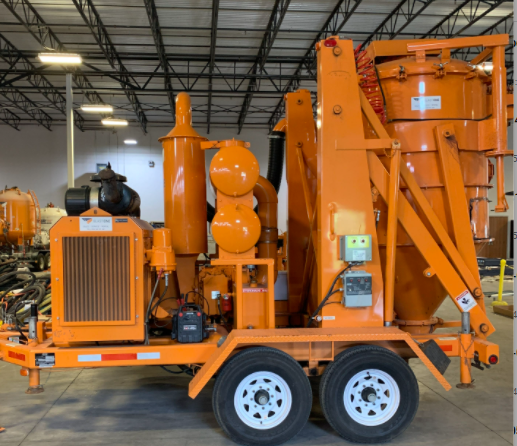

Vecloader 616 Trailer Mounted Vacuum – Diesel Powered


  • Available for Purchase or Rent
  • 170HP T4 John Deere Diesel
  • 2367 CFM, 28″ static pressure
  • Mounted on 2-axle road legal trailer
  • Will convey between 7-11tons of abrasive per hour
  • Primary Filtration – Coated Bags, pulse air cleaned
  • Secondary Filtration – Pleated Cartridge
  • Max Vacuum hose 5″
  • Empty weight 10,500lbs
  • Dimensions 7’5″ L x 8’5″ W x 11’2.5″ H


One of the most powerful vacuum units available. Large 170 HP diesel engine powers the tri-lobe Roots blower to create a near complete vacuum. Commonly used by contractors blasting with expendable media.

Has 2,367 CFM and 28” HG of suction and the cyclone/dust collector is hydraulically raised to allow loading of waste material into bulk bags or into a dumpster.

*Performance figures are based upon steel grit collection at 200 feet distances. Many factors impact vacuum productivity

Document Downloads

VecLoader Manua 082117
