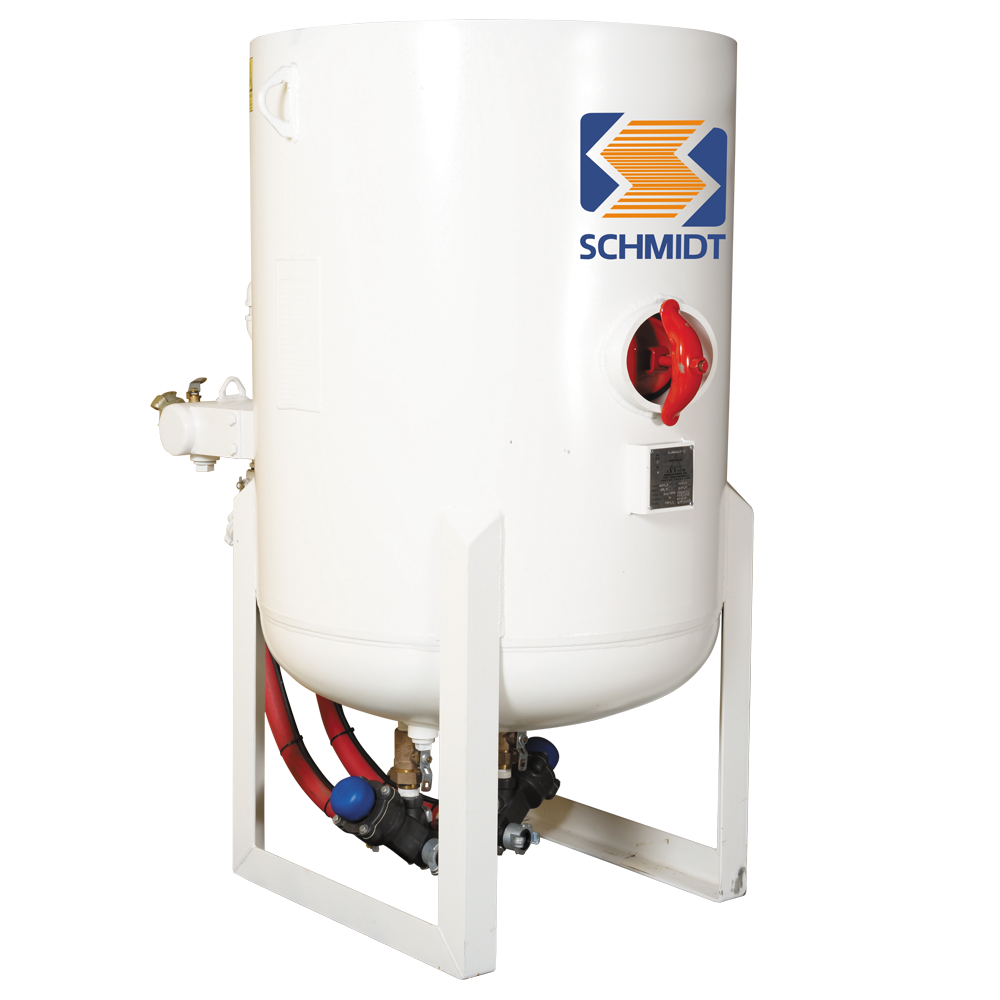

Schmidt® 20 cuft Blast Machine

Sku: P-BMS20CF

The Schmidt® 20 cf Blast Pot is purpose-built for extended industrial blasting sessions. With its larger 20 cubic foot capacity, it minimizes refill downtime and increases operator productivity, especially in high volume blast room environments.

As it is designed for blast rooms, it does not offer wheels but does include lifting eyes. It's often ordered with a second outlet to allow simultaneous operation by two users. This capability makes it a top choice for higher-volume blasting applications.

The machine is offered with premium Schmidt pressure-hold abrasive metering valves — Thompson® Valve II, and TeraValve® XL — and is rated for full 150 PSI working pressure. Customers can choose from pneumatic or electric control systems to suit their operational setup and climate needs.

All Schmidt equipment is engineered for quality and performance, and provides many years of service.

Additional information:

• 20 cubic foot capacity – up to 6+ operator hours of continuous blasting with garnet
• Built with 2 outlet capability - can add a 2nd outlet in the future if needed.  Or, buy the 2nd outlet up front!
• Built for industrial blast room applications
• 150 PSI working pressure with high-performance 1-1/2" piping
• Pressure Hold design for operational cost savings
• The 20cf blast pot is 66" tall and is 36" in diameter (as compared to 57" tall x 24" dia. for a 10cf).
• The Axxiom 20 cubic foot series is generally custom-ordered as many options are available, but common SKUs include the following:
  • BMS2001TVAWH-US:  Single outlet pneumatic basic configuration with TV II valve with urethane sleeve (best Thompson valve setup for steel grit applications)
  • BMS2002TERAAE-US: Dual outlet electric premium configuration with TeraValves.  Includes these options:
    • High Flow Auto Air Valves (HFAAV), reduces pressure drop for enhanced productivity.
    • 800 cfm Moisture Trap, supports 2 outlets and removes residual moisture from compressed air lines.  Especially useful when plant compressors are a long distance from the blast booth.
    • Union-End Ball Valves (UEBV), allows removal of metering valves without emptying the pot, saves time when servicing the valves.
  • Call or Chat for a quote on a pot with your specific options included if the above do not meet your needs.

Other options commonly used in blast rooms include:

• Spider Plate – Prevents overfilling from overhead abrasive hoppers, ensuring proper sealing of the pop-up valve
• Remote Abrasive Refill – Allows on-the-fly abrasive refilling via remote switch, no manual blowdown needed
• Remote Abrasive Cut-Off (ACO) – Adds a combo-valve to enable the operator to switch off abrasive flow and use the blast hose as an air-only tool.
• Blast Hoses, Bull Hose, and Nozzles - available in a convenient hose/nozzle bundle or purchase a la carte.
• Respirators & PPE - also available in convenient bundles such as the Nova 3 / BlasterAll PPE bundle.
• Aftercoolers or Deliquescent Air Dryers are essential for industrial applications, and are available in a range of capacities to match plant compressor size.
