Angled Blast Nozzles

ANGLED & BANANA ABRASIVE MEDIA SANDBLASTING NOZZLES

Our angled abrasive media blasting nozzles are designed to provide maximum efficiency and durability, making them the perfect choice for any heavy-duty industrial cleaning application.

One of the key benefits of using high-quality nozzles is that they can significantly improve the speed and effectiveness of your media blasting process. Our angled nozzles are designed to direct the abrasive media at a precise angle, ensuring that it hits the surface at the optimal angle for maximum cleaning power. This means that you’ll be able to clean surfaces more quickly and effectively, saving you time and money in the long run.

In addition to their efficiency benefits, angled abrasive media blasting nozzles are also ideal for special applications. For example, if you’re working on a large surface area that’s difficult to reach with a traditional nozzle, an angled nozzle can help you get into those tight spaces and ensure that every inch of the surface is cleaned. And if you’re working on a surface that’s particularly delicate or sensitive, an angled nozzle can help you control the flow of abrasive media to prevent damage.

sandblasting nozzle buying guide

Showing all 9 results

    • Curved "Banana" Blast Nozzle
    • Made from Boron Carbide which is the longest lasting material used for blast nozzles
    • Size listed is a #6, which is 3/8" internal diameter
    • Has a Medium 3/4" Thread - Requires a special nozzle holder adapter
      • Search for “nozzle thread adaptors” to select an adaptor to use with your existing nozzle holder, or contact BlastOne if you want a medium thread nozzle holder.
    • Sold Individually

    Web price i
    Please sign in to your account to see your pricing, which may be different from the price displayed.

    $412.00

    Ship to 20149

    $412.00
  • Effective solution for blasting in hard-to-reach areas such as:
    • Inside of bolt holes
    • Inside of close-fitting steel channels
    • Difficult access structural steel, such as bridge supports, etc.
    Our Tite Space Invader kit:
    • Offers standard extension lengths from 10 to 60 inches, with other options available by special order.
    • Can be used with most abrasives
    • Attaches to blast hoses with standard 2-prong couplings (not nozzle holders)
    • Nozzle is NOT included and shown for illustration purposes only.  Requires junior size 3/8" NPT threaded nozzles.  Choose the correct one for your application from our Tite-Space nozzle selection here.
    • Female version requires only ¾" clearance.
    • Male version requires only 1" clearance.

    Web price i
    Please sign in to your account to see your pricing, which may be different from the price displayed.

    $159.65 - $210.12

    Ship to 20149

    $159.65$210.12
    • Used for blasting pipe internals with 3"-12" ID
    • Blasts in a 360 degree pattern
    • Units come standard with Tungsten Carbide deflector tip
    • Select the unit that will best match your Air Supply:
      • IPC4000, 1/2" Throat Nozzle: 250 cfm
      • IPC4500, 5/8" Throat Nozzle: 400 cfm
    • Order Transport Carriages separately as follows:
      • IPC4100, Collar and Button, for 3"-5" ID
      • IPC4200, Scissor, for 5"-12" ID
      • Requires BSP (not NPT) threaded coupling to attached to standard blast hose coupling, part number HFSTC1BSP, available here or under the repair parts tab below.
    • Successful Internal Pipe Projects require some specialist knowledge - contact our team for assistance
    • Note:  This product is similar to the Clemco Hollo-Blast

    Web price i
    Please sign in to your account to see your pricing, which may be different from the price displayed.

    $1,305.27 - $1,310.54

    Ship to 20149

    $1,305.27$1,310.54
  • Tite-Space nozzles are angle nozzles, designed for use in areas that are especially difficult to access, and feature:

    • 3/8" NPT Thread in either Male or Female configuration
    • Male version has brass threads and requires a minimum opening clearance of 1".  This version is 1-7/8" long.
    • Female version has steel threads and requires a minimum opening clearance of only ¾".  This version is 3-1/8" long.
    • These nozzles are often used in conjunction with our Tite Space Invader Blasting Kit, available here
    • Angle options include:
      • 45° & 60° forward blast
      • 90° right angle blast
      • 135° reverse blast
    • Some options available in double, triple or quad orifices in addition to single.
      • Note:  Using nozzles with multiple orifices will multiply the compressed air CFM requirement accordingly.
    • Stock version uses tungsten carbide lining.

    Note:  Due to the angled blast stream, these nozzles will wear more quickly than traditional versions.  For larger projects, we offer long-life Roctec nozzle linings by special order, with a minimum order quantity of 5.  Contact us for further details.

    Web price i
    Please sign in to your account to see your pricing, which may be different from the price displayed.

    $144.20 - $231.75

    Ship to 20149

    $144.20$231.75
  • Sized between the Tite Space and the full size nozzles, the ATA series of angle nozzles come standard with ¾" Medium Threads. They are excellent for applications requiring the operator to operate in small areas, especially when paired with a small bore whip-hose. Basic specs are:
    • 3/4" (20mm) Medium male thread (other options available by special order).  Can be used in standard Fine or Coarse nozzle holders by use of a thread adapter available here.
    • 1/2" (13mm) throat entry
    • 45° forward, 90° right angle, and 135° reverse blast pattern options available
    • Some sizes are available in Double, Triple or Quad orifices
      • Note:  Using nozzles with multiple orifices will multiply the compressed air CFM requirement accordingly
    • Tungsten carbide liner.  Extended life liners for large projects available by special order.
    • Short 2-1/8" length
    Contact us for additional options available by special order.

    Web price i
    Please sign in to your account to see your pricing, which may be different from the price displayed.

    $181.28

    Ship to 20149

    $181.28

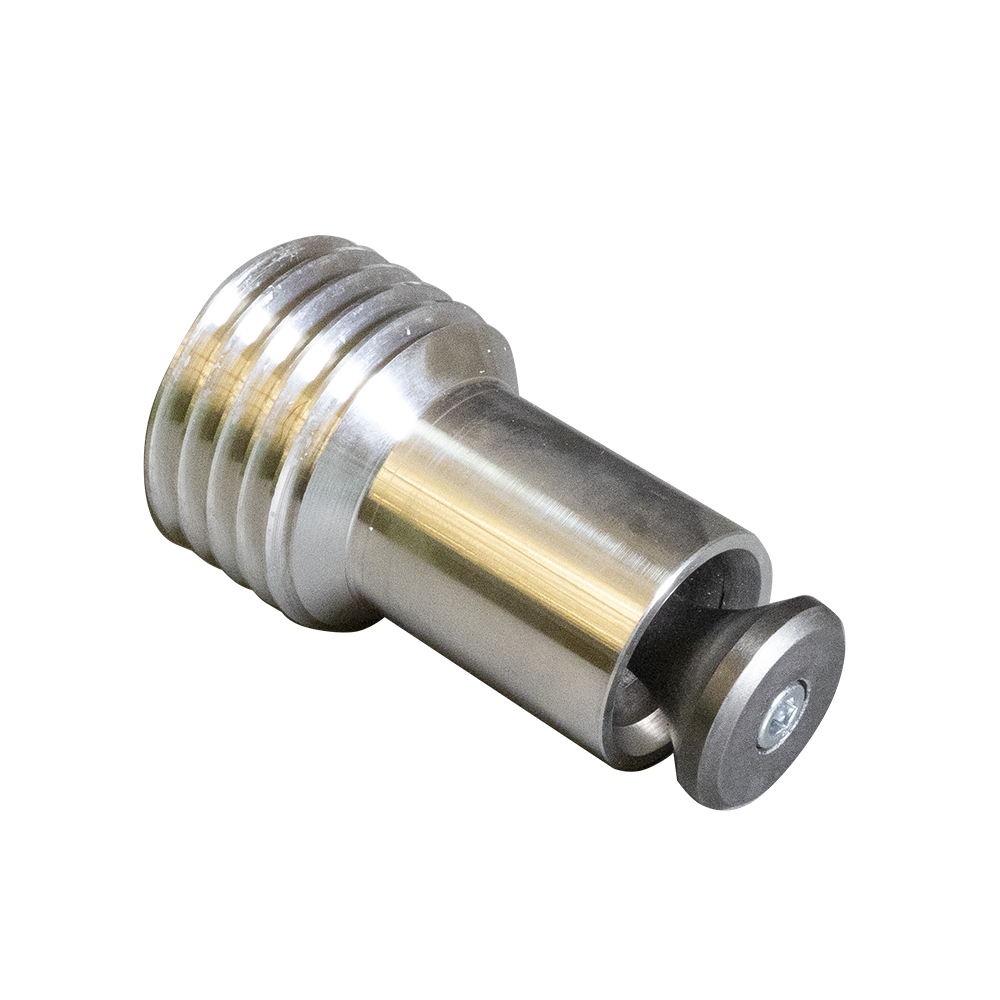

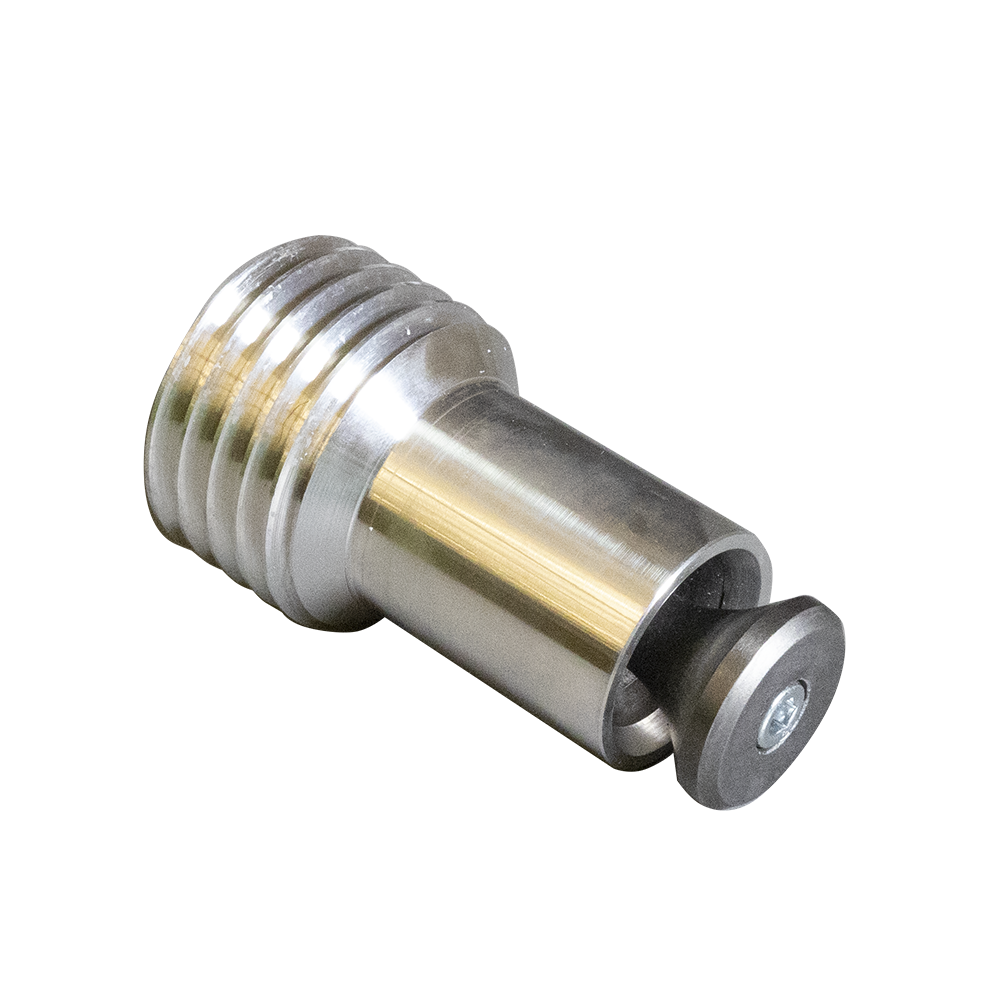

  • BNATC360C
    Offers Quick and Easy Setup for blast cleaning on internals of small pipes
    • Blasts in a 360 degree pattern
    • Can be used in pipes from 2.5 to 5 inch ID
    • Machined aluminum jacket with tungsten carbide liner
    • Replaceable tungsten carbide deflector tip
    • Coarse, 2" Contractor Thread
    • Screws directly into nozzle holder
    • NOTE - requires Nylon nozzle holder with contractor threads
    BNATC360C
    Offers Quick and Easy Setup for blast cleaning on internals of small pipes
    • Blasts in a 360 degree pattern
    • Can be used in pipes from 2.5 to 5 inch ID
    • Machined aluminum jacket with tungsten carbide liner
    • Replaceable tungsten carbide deflector tip
    • Coarse, 2" Contractor Thread
    • Screws directly into nozzle holder
    • NOTE - requires Nylon nozzle holder with contractor threads

    Web price i
    Please sign in to your account to see your pricing, which may be different from the price displayed.

    $579.29

    Ship to 20149

    Part Number Purchase Price
    BNATC360C
    $579.29
    360° Internal Pipe Blasting Nozzle

    Part #BNATC360C

    View Product Details

    Web price i
    Please sign in to your account to see your pricing, which may be different from the price displayed.

    $579.29

    -

    • Ideal for blasting recesses, pipe internals, behind angles, lattices etc.
    • 2" UNC (50mm) coarse Contractor thread 'C' or 1 1/4" NPSM (32mm) Fine Industrial thread 'F'
    • 3/4" (20mm) throat entry
    • 45° single, double or triple (equi-spaced) side outlets
    • Tungsten carbide liner
    • **Triple orifice nozzles have triple air & abrasive consumption!

    Web price i
    Please sign in to your account to see your pricing, which may be different from the price displayed.

    $312.09 - $329.60

    Ship to 20149

    $312.09$329.60
  • VCBVRA4
    • #4 Nozzle
    • 90 degree
    • Tungsten Carbide
    • For Right Angle Workhead
    VCBVRA4
    • #4 Nozzle
    • 90 degree
    • Tungsten Carbide
    • For Right Angle Workhead

    Web price i
    Please sign in to your account to see your pricing, which may be different from the price displayed.

    $695.00

    Ship to 20149

    Part Number Purchase Price
    VCBVRA4
    $695.00
    Right-Angle Nozzle for Right Angle Workhead Kit

    Part #VCBVRA4

    View Product Details

    Web price i
    Please sign in to your account to see your pricing, which may be different from the price displayed.

    $695.00

    -

  • INH131PBAG

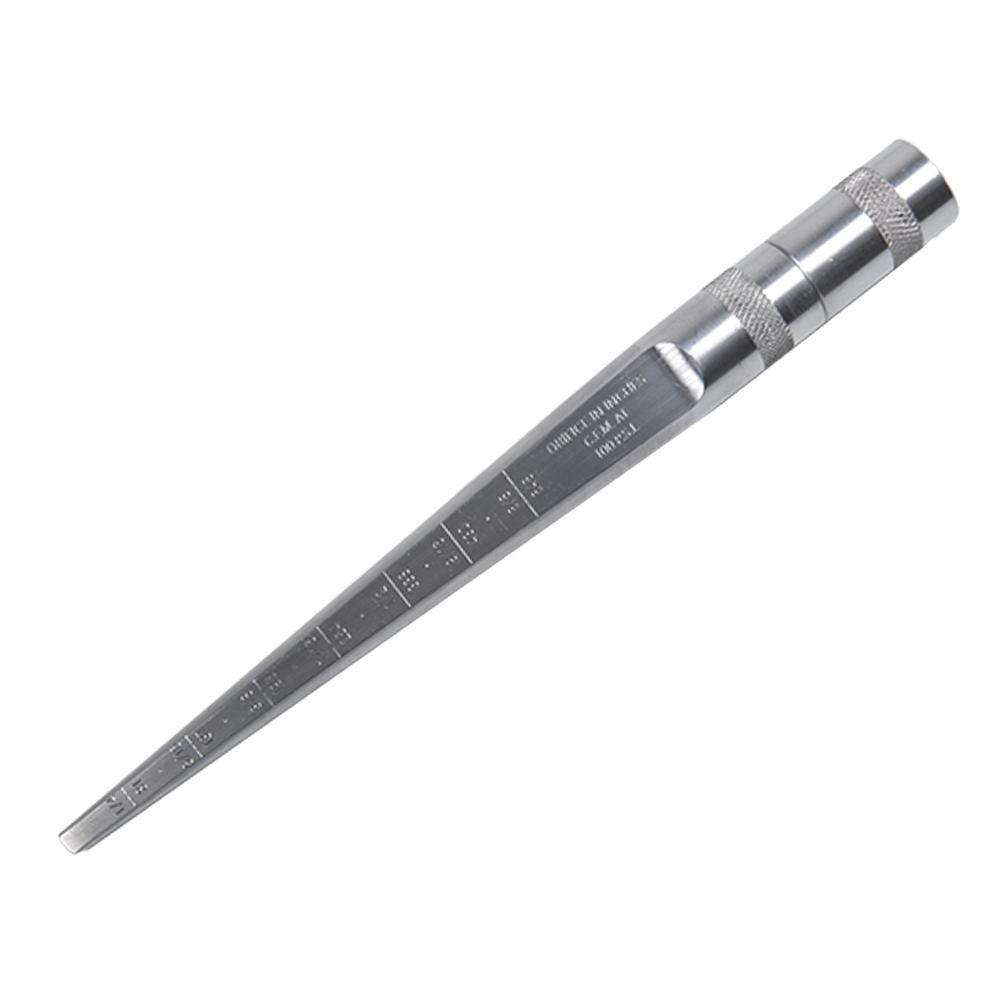

    The “Blast Nozzle Wear Size Analyzer Gauge” (SKU: INH131PBAG) efficiently determines the internal diameter and wear level of a blast nozzle orifice, ensuring optimal blasting performance.
    • Used to determine the internal diameter of a blast nozzle orifice
    • Allows you to determine the level of wear of the blast nozzle
    • Comes with a removable cap and crayon
    • Has size markings to allow you to see quickly what size your nozzle is
    • Sold Individually
    INH131PBAG
    The “Blast Nozzle Wear Size Analyzer Gauge” (SKU: INH131PBAG) efficiently determines the internal diameter and wear level of a blast nozzle orifice, ensuring optimal blasting performance.
    • Used to determine the internal diameter of a blast nozzle orifice
    • Allows you to determine the level of wear of the blast nozzle
    • Comes with a removable cap and crayon
    • Has size markings to allow you to see quickly what size your nozzle is
    • Sold Individually

    Web price i
    Please sign in to your account to see your pricing, which may be different from the price displayed.

    $75.00

    Ship to 20149

    Part Number Purchase Price
    INH131PBAG
    $75.00
    Nozzle Wear Size Analyzer Gauge

    Part #INH131PBAG

    View Product Details

    Web price i
    Please sign in to your account to see your pricing, which may be different from the price displayed.

    $75.00

    -
